Cudy AC1200 Mesh Wi-Fi System, M1200 2.0, 3-Pack

Cudy AC1200 Mesh Wi-Fi System, M1200 2.0, 3-Pack. Product colour: White, Antenna type: Internal, Product type: Mesh system. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Internal memory: 16 MB, Flash memory: 128 MB, Mac operating systems supported: MacOS. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, AC adapter output voltage: 12 V. Certification: FCC, CE

A mesh Wi-Fi system built to provide a reliable network for large homes, Installation is easy—set up one unit and auto-sync the rest. Suitable for 100 Mbps internet access.

Fast and Reliable AC1200
Get speeds up to 300Mbps (2.4GHz) and 867 Mbps (5GHz) with MU-MIMO and beamforming enhance performance, delivering smooth streaming and gaming for multiple devices at once.

Small Size. Big Coverage.
Compact and elegant design fits naturally into any room while delivering seamless whole-home coverage.

Always Connected to the Best Signal
Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds - ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

Wired Power Meets Whole-Home Performance
Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 100 Mbps per port, M1200 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Privacy Protected, Access Secured

Whole-Home VPN Protection
Compatible with mainstream VPN services for secure browsing and remote access across your network. Set up VPN directly on the router and automatically secure every connected device in your home.

Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Design

Product type: Mesh system
Product colour: White
LED indicators: System
Antenna type: Internal
Antennas quantity: 2
Antenna direction type: Omni-directional
Number of devices supported: 100
Maximum coverage: 200 m²
Feature: Reset button

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 1167 Mbit/s
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms: WPA, WPA2, WPA3
Number of guest networks (5 GHz): 1
Number of guest networks (2.4 GHz): 1
Feature: Point-to-point protocol over Ethernet (PPPoE)
Feature: Dynamic IP
Feature: Dynamic DNS (DDNS)
Feature: Guest access
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier

Features

Feature: Built-in processor
Processor cores: 1
Internal memory: 16 MB
Flash memory: 128 MB
Feature: Port forwarding
Mac operating systems supported: MacOS
Feature: DHCP client
Feature: DHCP server
Feature: Parental control
Feature: MU-MIMO technology
Feature: MIMO

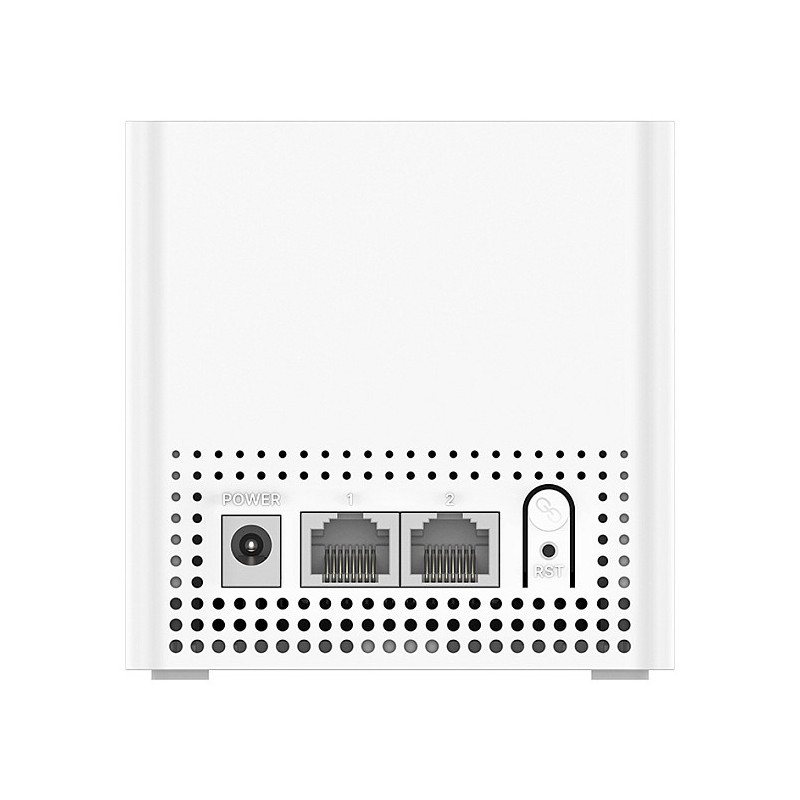

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Ethernet WAN
Feature: DC-in jack

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 12 V
AC adapter output current: 1 A

Certificates

Certification: FCC, CE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 85 mm
Depth: 85 mm
Height: 86.5 mm

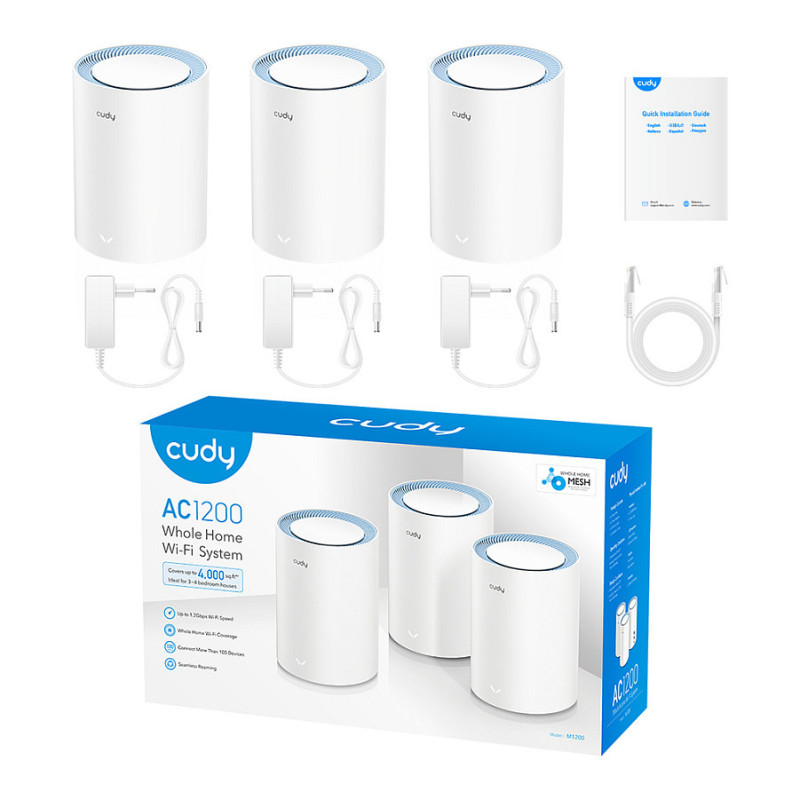

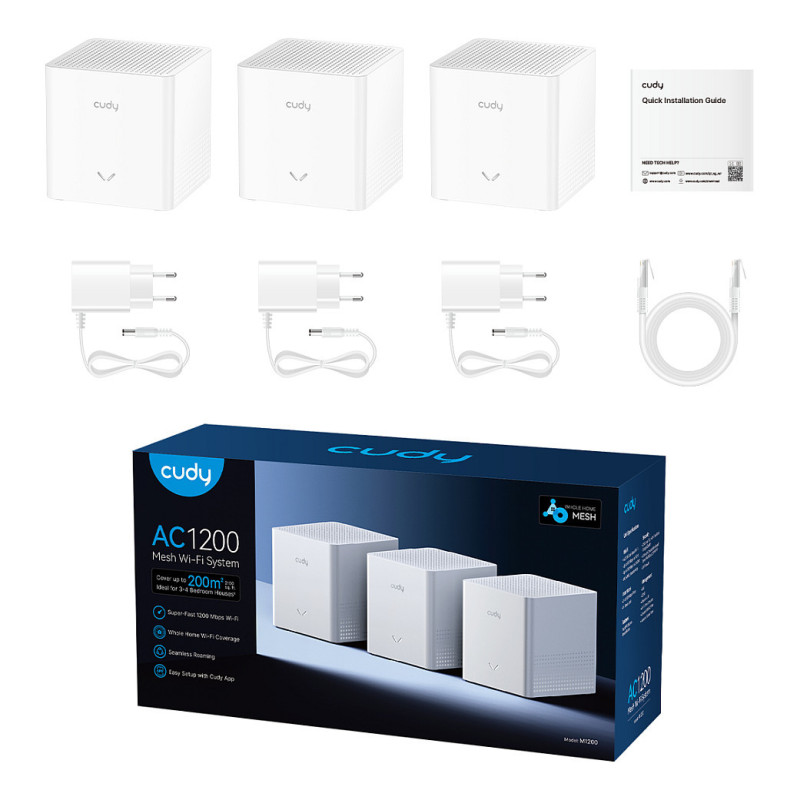

Packaging content

Number of products included: 3 pc(s)
Feature: AC adapter included
Number of units included: 3 pc(s)
Feature: Ethernet cable
Feature: Quick installation guide

Packaging data

Package width: 274 mm
Package depth: 143 mm
Package height: 90 mm
Package weight: 878.6 g
