Conceptronic EMRICK13G interface cards / adapter

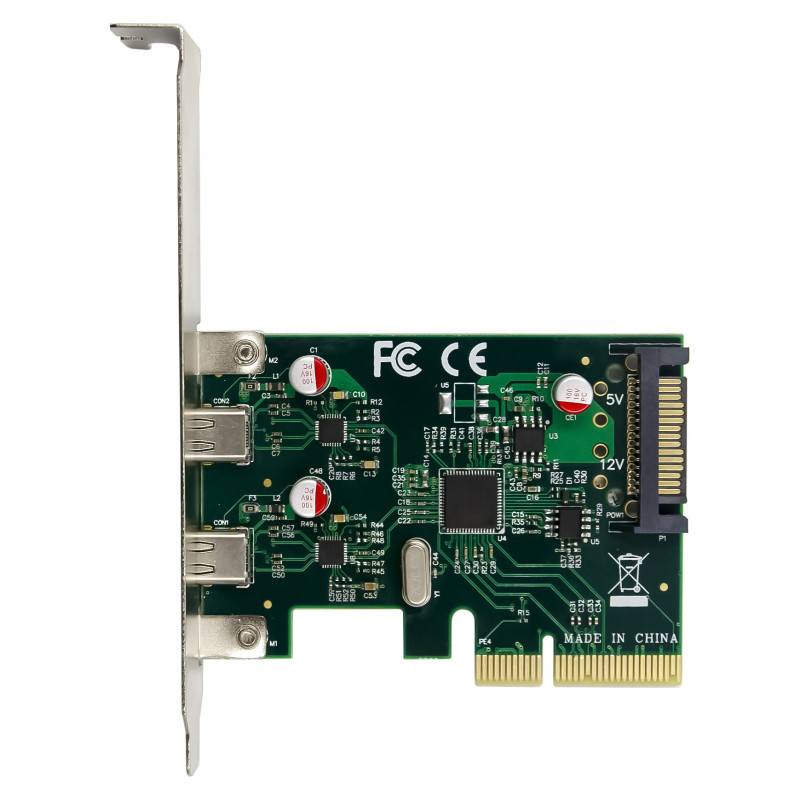

Conceptronic EMRICK13G 2-Port USB 3.2 Gen 2 Type-C PCIe Card. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCI 3.0. Product colour: Green, Country of origin: China. Chipset: ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 80 mm, Depth: 58 mm, Height: 30 mm

This PCIe card allows you to easily add two high-speed USB 3.2 Gen 2 ports to your desktop computer, with a maximum data transfer rate of 10Gb/s. It offers a fast and efficient solution for transferring large files and documents. Effortlessly upgrade your desktop and enjoy enhanced data transfer speeds with this reliable PCIe card.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
SATA power connector type: SATA 15-pin

Design

Feature: Internal
Product colour: Green
Feature: Hot-swap
Country of origin: China

Features

Chipset: ASM3142
Data transfer rate (max): 10 Gbit/s
Feature: UASP support

Operational conditions

Operating temperature (T-T): 0 - 85 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Linux operating systems supported: Yes

Technical details

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 80 mm
Depth: 58 mm
Height: 30 mm
Weight: 32 g

Packaging data

Feature: Mounting brackets included
Feature: Drivers included
Feature: Quick installation guide
Package width: 30 mm
Package depth: 130 mm
Package height: 140 mm
Package weight: 120 g
Package type: Box

Logistics data

Harmonized System (HS) code: 8471800000
Products per master (outer) case: 30 pc(s)
Master (outer) case width: 405 mm
Master (outer) case length: 340 mm
Master (outer) case height: 205 mm
Master (outer) case gross weight: 3.6 kg
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 163 cm
Master (outer) cases per pallet: 36 pc(s)
