Conceptronic EMRICK04B interface cards / adapter

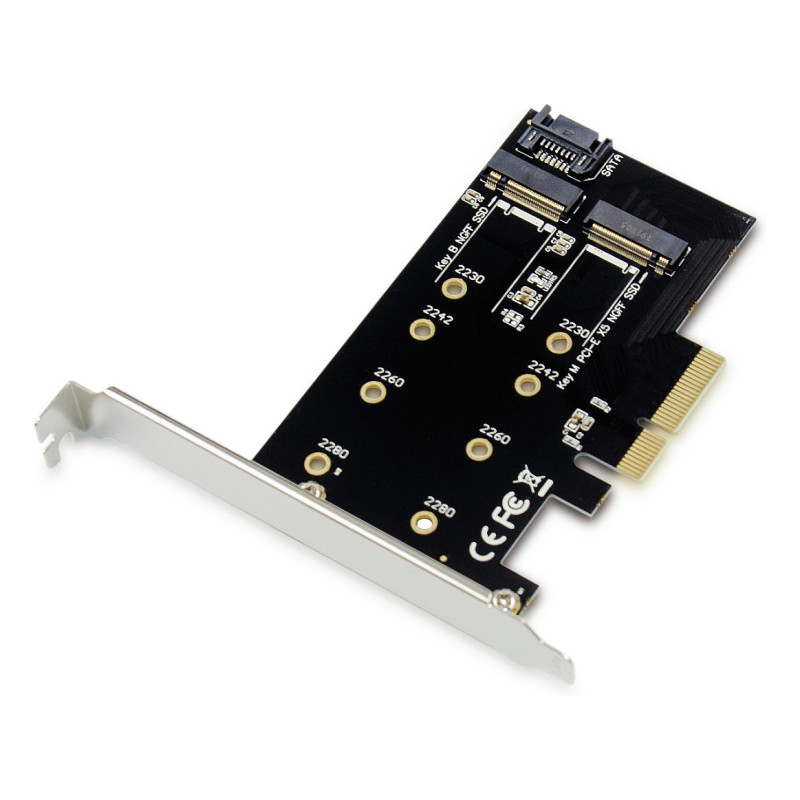

Conceptronic EMRICK 2-in-1 M.2 SSD PCIe Adapter SATA AHCI NVMe. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 3.0. Cooling type: Passive, Country of origin: China. Chipset: JMB585, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 70 mm, Depth: 114 mm, Height: 18 mm

This 2-in-1 M.2 SSD PCIe Adapter is a multi-functional NVMe conversion card, which can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with a SATA cable. It also features ultra-fast PCI Express 3.0 X4 lanes, transmitting bandwidth up to 32GT/S, as well as Serial ATA v3.0 to transmit at speeds up to 6Gbps. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 3.0
SATA revision: 3.0
Internal SATA ports quantity: 1
Number of M.2 (M) slots: 1
Number of M.2 (B) slots: 1

Design

Feature: Internal
Cooling type: Passive
Country of origin: China

Features

Chipset: JMB585
Data transfer rate (max): 6 Gbit/s
Feature: Plug and Play

System requirements

Linux operating systems supported: Yes

Weight & dimensions

Width: 70 mm
Depth: 114 mm
Height: 18 mm
Weight: 42 g

Packaging data

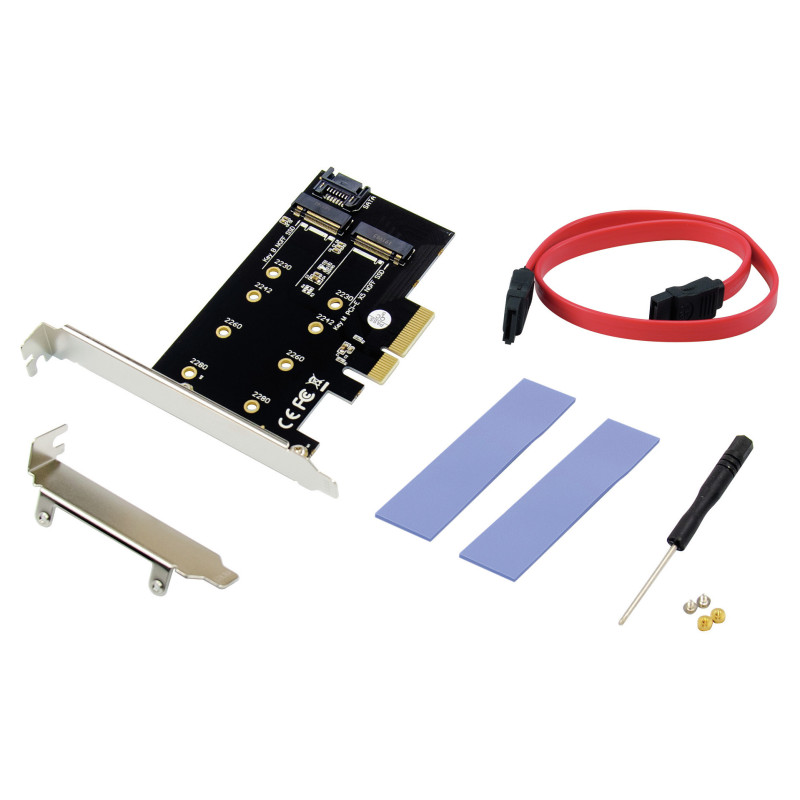

Cables included: SATA
Feature: Mounting brackets included
Feature: Screws included
Feature: Quick installation guide
Package width: 132 mm
Package depth: 156 mm
Package height: 26 mm
Package weight: 100 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 30 pc(s)
Master (outer) case width: 280 mm
Master (outer) case length: 180 mm
Master (outer) case height: 415 mm
Master (outer) case gross weight: 3.6 kg
