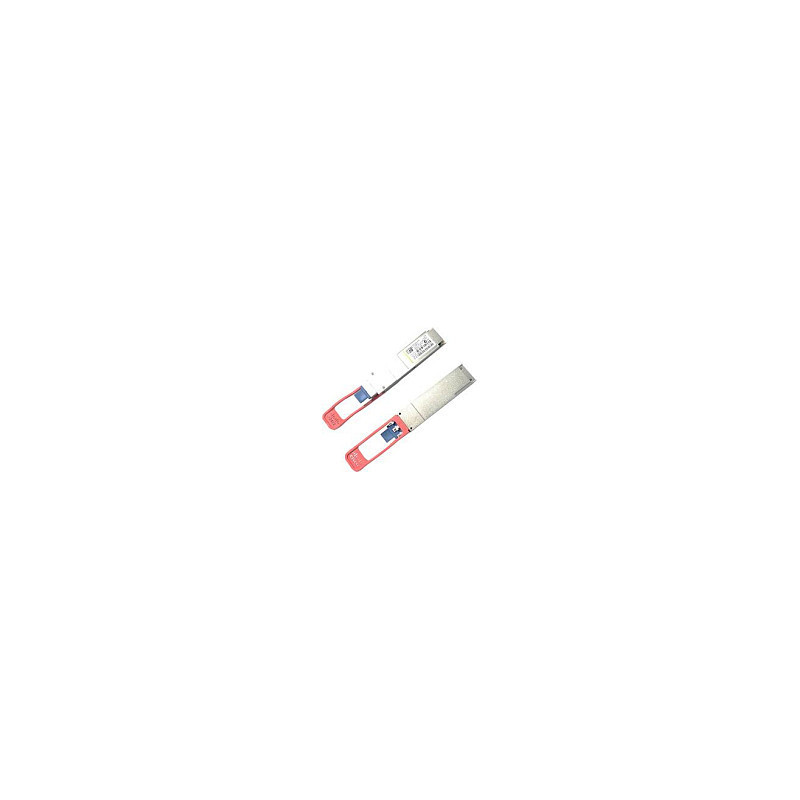

Cisco QSFP-40G-LR4-S network transceiver module

Cisco QSFP-40G-LR4-S=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP. Certification: MSA. Quantity per pack: 1 pc(s)

The Cisco 40GBASE-LR4 QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The QSFP-40G-LR4-S module supports 40GBase Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 40000 Mbit/s
Interface type: QSFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ba
Cabling technology: 40GBASE-LR4
Feature: Auto MDI/MDI-X

Features

Feature: Hot-Plug support

Certificates

Certification: MSA

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85369010
