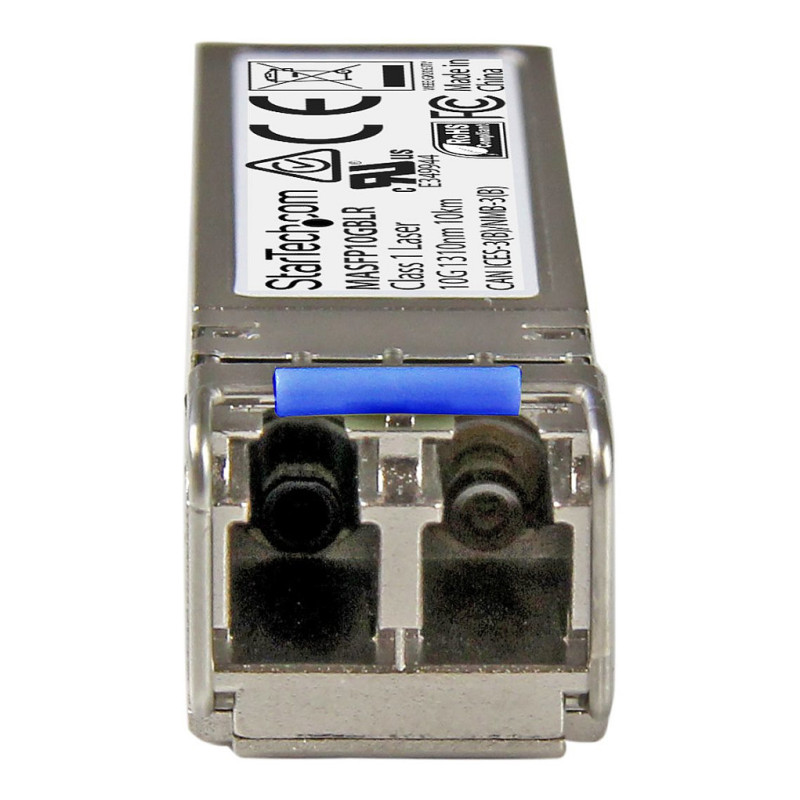

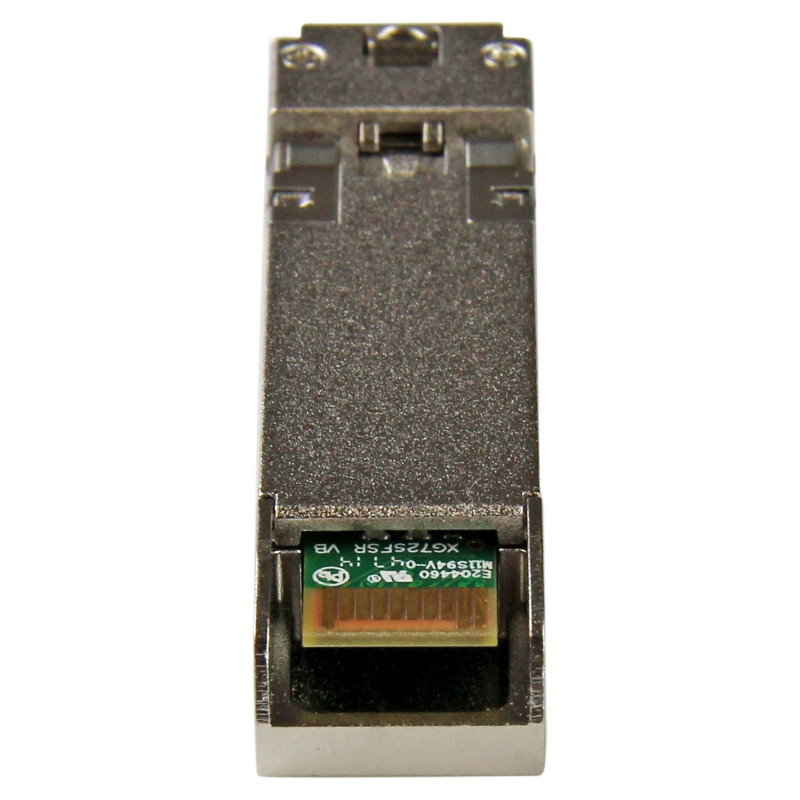

StarTech.com MASFP10GBLR network transceiver module

StarTech.com Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 2104865 h. Power consumption (typical): 1.2 W. Compliance certificates: CE, RoHS. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ae
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Housing material: Aluminium
Feature: Hot-swap
Mean time between failures (MTBF): 2104865 h

Power

Power consumption (typical): 1.2 W

Certificates

Compliance certificates: CE, RoHS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 13.9 mm
Depth: 58.4 mm
Height: 12.6 mm
Weight: 22 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 92 mm
Package depth: 114 mm
Package height: 33 mm
Package weight: 53 g

Logistics data

Master (outer) case width: 250 mm
Master (outer) case length: 300 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 200 mm
Products per master (outer) case: 3 pc(s)
Country of origin: China
