Cisco 8811 IP phone

Cisco 8811. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Display: LCD, Display resolution: 800 x 480 pixels. Voice codecs: G.711a, G.722, G.729A, Ringer type: Polyphonic. Supported network protocols: SIP, SPD, UDP, GARP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, PPDP,, Security algorithms: EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS, Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u. Width: 257.3 mm, Depth: 40 mm, Height: 229.1 mm

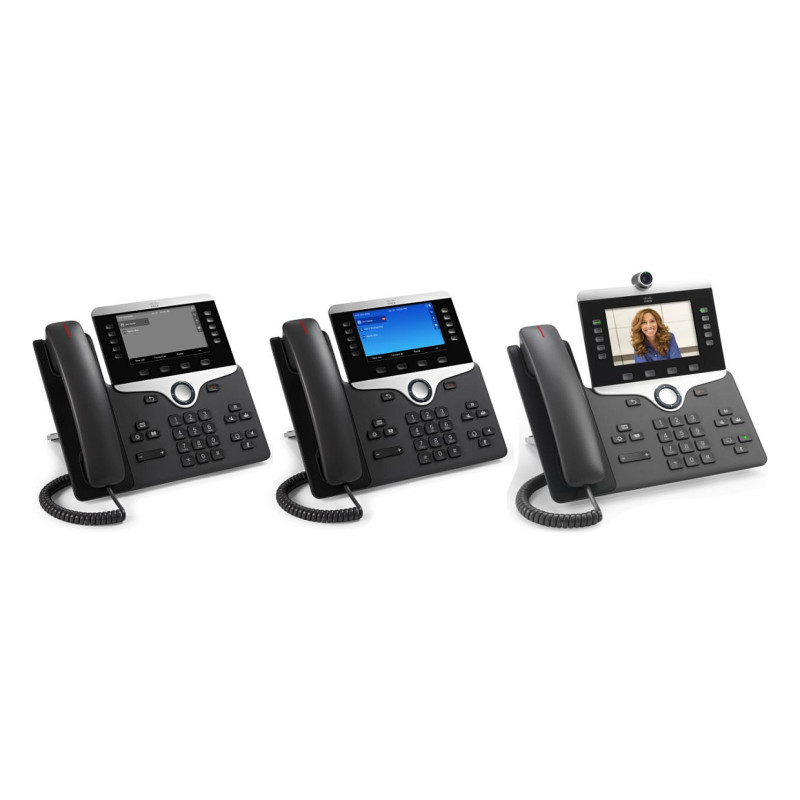

The Cisco® IP Phone 8811 is a cost-effective, business-class collaboration endpoint that delivers high-fidelity, reliable, secure, and scalable voice communications for midsize to large enterprise businesses.
With the Cisco IP Phone 8811, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8811 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, "always-on" reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers.
The Cisco IP Phone 8811 supports five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number, using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. Backlit acoustic keys provide flexibility for audio path selection and switching.
Other key features of the phone follow:
- The Cisco IP Phone 8811 offers a 5-in. high-resolution (800 x 480) widescreen backlit grayscale display. Localized language support, including right-to-left on-screen text, meets the needs of global users.
- The phone supports a built-in Gigabit Ethernet switch for your PC connection.
- Support for Cisco EnergyWise™ technology makes the Cisco IP Phone 8811 more energy-efficient and ecofriendly; the phone is qualified by the Energy Star organization.
- An optional wall-mount kit is orderable separately for customers seeking this capability.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Backlight keypad
Feature: Device lock
Feature: Wall mountable
Mounting: Desk/Wall

Phone features

Feature: Call waiting
Feature: Speed dialling
Feature: Call forwarding
Feature: Redialing
Feature: Caller ID
Feature: Call park

Display

Display: LCD
Display resolution: 800 x 480 pixels

Audio

Feature: Microphone mute
Voice codecs: G.711a, G.722, G.729A
Ringer type: Polyphonic

Network

Feature: Ethernet LAN
Supported network protocols: SIP, SPD, UDP, GARP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, PPDP,
Feature: Quality of Service (QoS) support
Feature: DHCP client
Security algorithms: EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS
Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1
Headphone outputs: 1

Power

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -10 - 60 °C

Weight dimensions

Width: 257.3 mm
Depth: 40 mm
Height: 229.1 mm
Weight: 1.17 kg

Packaging content

Number of handles included: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85171800
