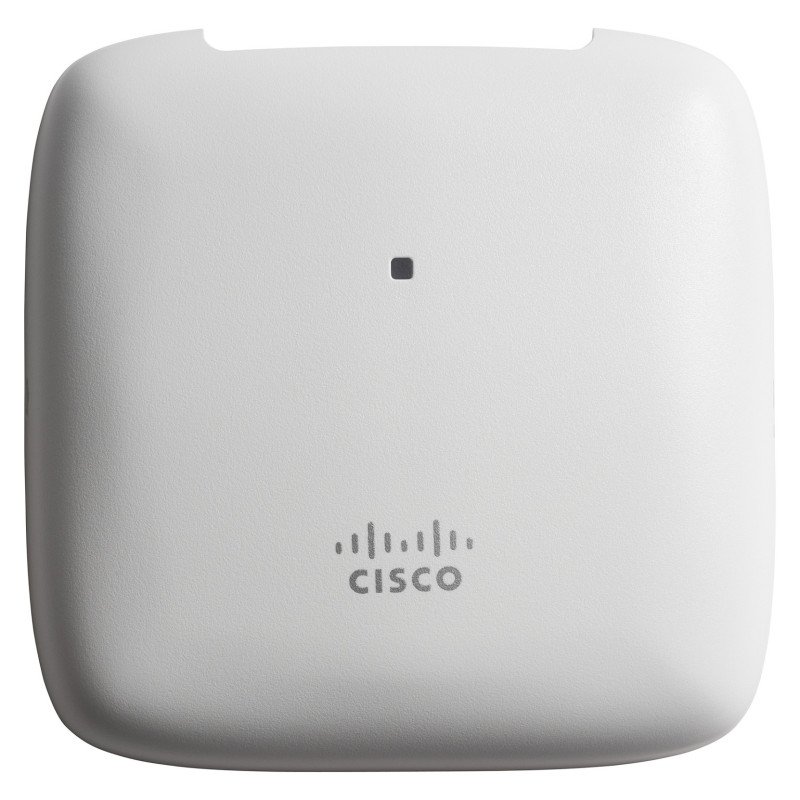

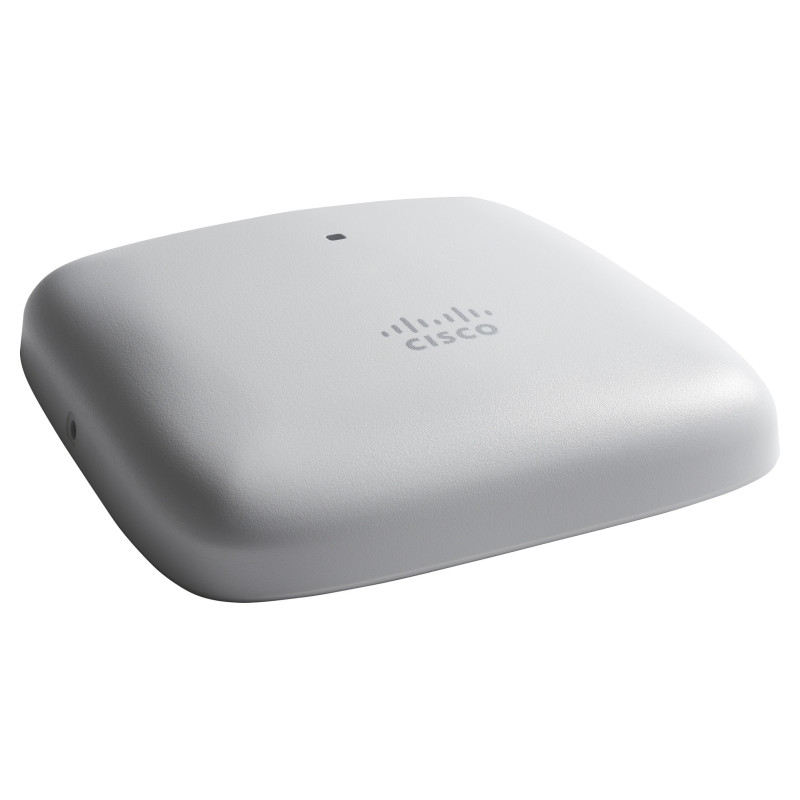

Cisco CBW240AC

Cisco Business 240AC 802.11ac 4x4 Wave 2 Access Point 2 GbE Ports - Ceiling Mount, Limited Lifetime Protection (CBW240AC-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1733 Mbit/s. Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Grey

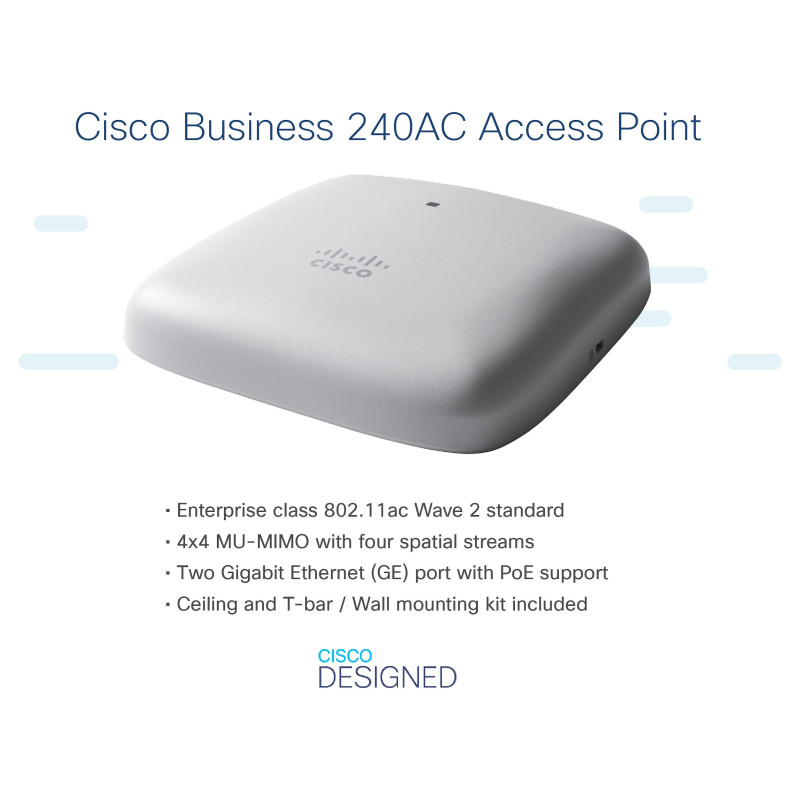

The Cisco Business 240AC Access Point delivers high density MU-MIMO (4x4) wireless connectivity for small offices. Designed with simplicity, flexibility and security in mind, the Cisco Business 240AC provides superior performance and enhanced range for an optimal user experience.

Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1733 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Number of users: 400 user(s)
Channels quantity: 29 channels
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support

Security

Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise
Feature: Remote Authentication Dial-In User Service (RADIUS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 100 - 240 V
AC input frequency: 50 Hz
Power plug type: Type C

Design

Placement: Ceiling, Wall
Product colour: Grey
LED indicators: Yes
Market segment: Business

Performance

Flash memory: 512 MB
Internal memory: 1000 MB

Technical details

Products per shipping (inner) case: 1 pc(s)

Weight & dimensions

Width: 177.8 mm
Depth: 177.8 mm
Height: 38 mm
Weight: 426 g

Packaging data

Package width: 226.9 mm
Package depth: 207.9 mm
Package height: 74.7 mm
Package weight: 890 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit

Other features

Antenna: 4X4:4SS - 80 MHz

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -30 - 70 °C
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4500 m

Logistics data

Harmonized System (HS) code: 85176990
Country of origin: China
Products per master (outer) case: 1 pc(s)
