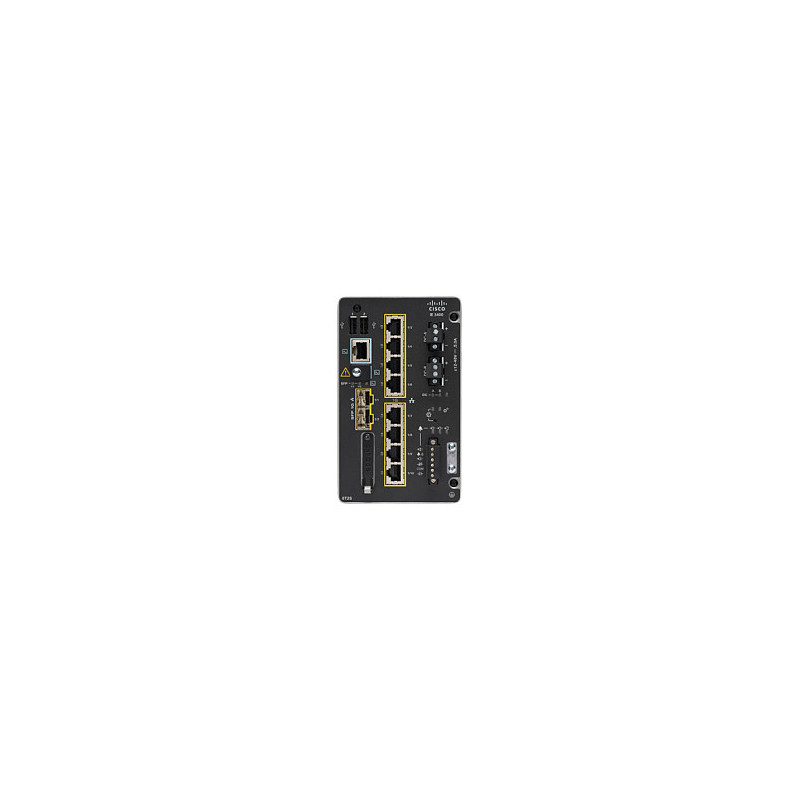

Cisco Catalyst IE3400

Cisco Catalyst IE3400. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 3, Console port: Mini USB-B/RS-232. MAC address table: 8000 entries. Networking standards: IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE.... DC input voltage: 9.6 - 60 V. Rack mounting

Advanced features support for digital transformation

Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.

Modular, versatile switch design

The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.

Compact form factor for rugged switch use cases

Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.

Fast speed, all Gigabit Ethernet

Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Open extensible platform with IOS XE

Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.

Extend intent-based networking to the IoT edge

With Cisco's highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber ports quantity: 2
Fiber optic connector: SFP
Console port: Mini USB-B/RS-232
USB 2.0 ports quantity: 3
Compatible memory cards: SD

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 256

Data transmission

MAC address table: 8000 entries
Number of queues: 8

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) IPv4 entries: 2000
Access Control List (ACL) IPv6 entries: 512
Feature: IGMP snooping
IGMP entries: 1000
Security algorithms: 802.1x RADIUS, SNMPv3, SSH
Feature: MAC address filtering
Feature: BPDU filtering/protection
Authentication: Guest VLAN

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
International Protection (IP) code: IP20
Feature: DIN rail mounting

Performance

Internal memory: 4000 MB
Flash memory: 1500 MB
Mean time between failures (MTBF): 549808 h

Power

DC input voltage: 9.6 - 60 V
Input current: 6.3 A
Power consumption (typical): 36 W

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Non-operating altitude: 0 - 4572 m

Weight & dimensions

Width: 152.4 mm
Depth: 134.6 mm
Height: 91.4 mm
Weight: 1.72 kg

Logistics data

Harmonized System (HS) code: 85176990
