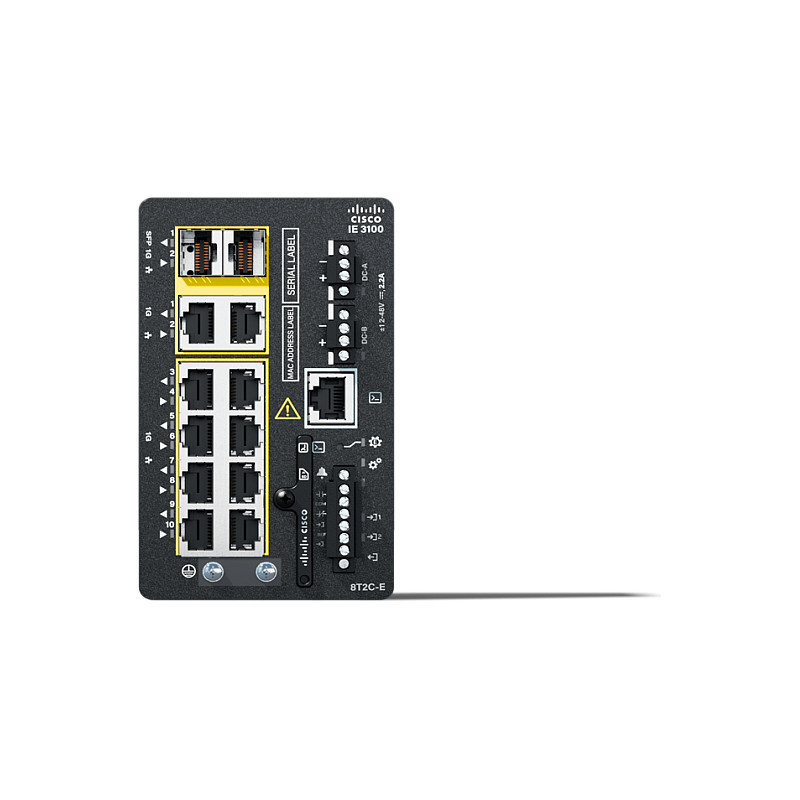

Cisco Catalyst IE-3100-8T2C-E network switch

Cisco Catalyst IE-3100-8T2C-E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: DC-in jack. Rack mounting

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Compatible memory cards: SD
Power connector: DC-in jack

Network

Feature: Link aggregation
Feature: Spanning tree protocol
Number of VLANs: 256

Data transmission

MAC address table: 8000 entries

Security

DHCP features: DHCP server, DHCP snooping
Feature: IGMP snooping
IGMP entries: 512

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
Feature: DIN rail mounting

Performance

Memory type: DRAM
Internal memory: 4000 MB

Power

Power source: DC
Feature: Power supply included

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 76.2 mm
Depth: 110 mm
Height: 127 mm
Weight: 860 g
