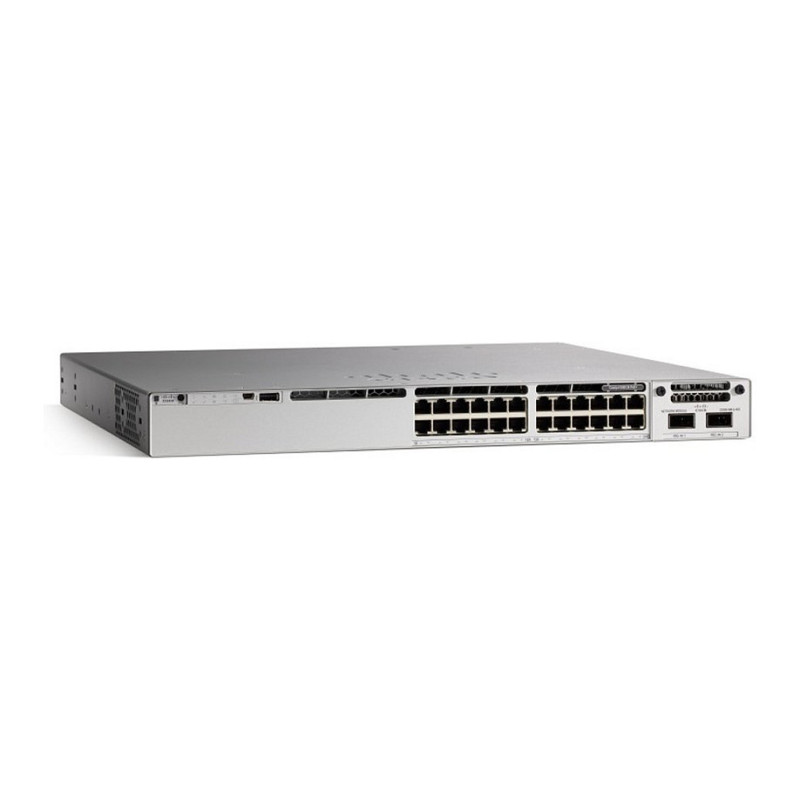

Cisco Catalyst C9300-24UX-A network switch

Cisco Catalyst C9300-24UX-A. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The Cisco® Catalyst® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
USB 2.0 ports quantity: 1

Network

Feature: 10G support
Cable types supported: Cat5e, Cat6, Cat6a
Feature: Zero Touch Provisioning (ZTP)
Feature: Full duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Multiprotocol Label Switching (MPLS)
Feature: VLAN support
Virtual LAN features: Private VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 640 Gbit/s
Forwarding rate: 476.19 Mpps
MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 9198
Packet buffer memory: 32 MB

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Security algorithms: 128-bit AES, 256-bit AES

Multicast features

Feature: Multicast support
IPv4 multicast entries: 32000
IPv6 multicast entries: 16000

Protocols

Feature: Virtual Router Redundancy Protocol (VRRP)
Routing protocols: BGP, EIGRP, HSRP, IS-IS, OSPF, RIP

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
LED indicators: Yes
Safety: UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3

Performance

Feature: Built-in processor
Flash memory: 16000 MB
Feature: Firmware upgradeable
Feature: Plug and Play
Mean time between failures (MTBF): 214760 h

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 560 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 90%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 445 mm
Depth: 434 mm
Height: 44 mm
Weight: 8.25 kg

Logistics data

Harmonized System (HS) code: 85176990
