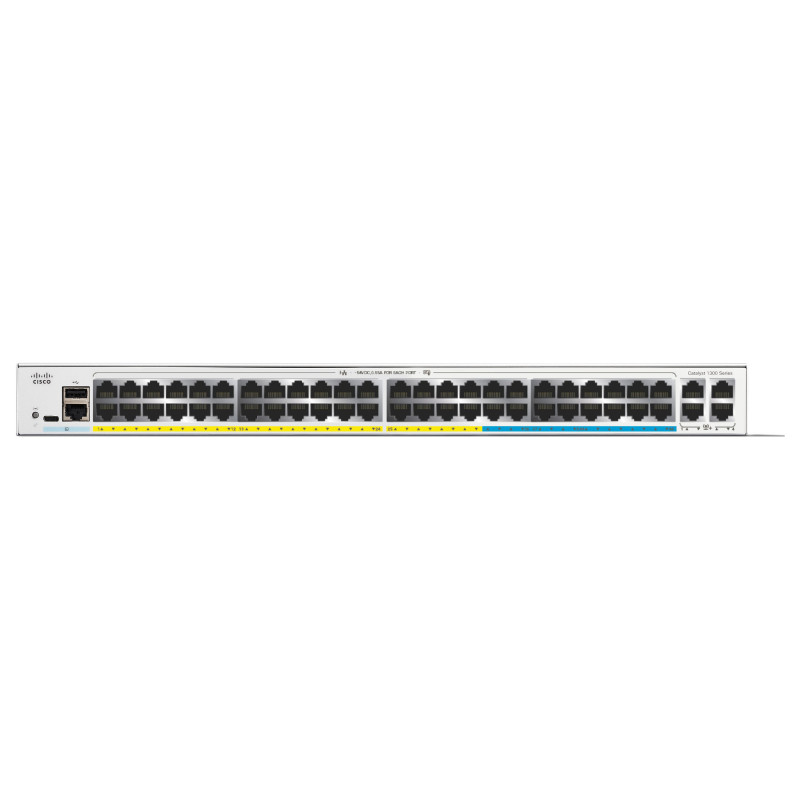

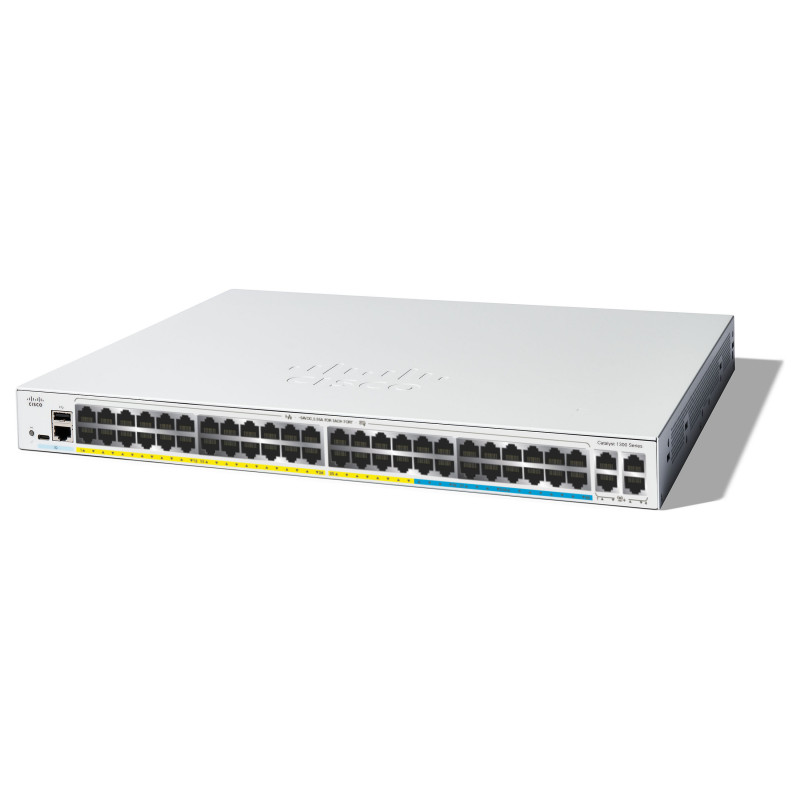

Cisco Catalyst C1300-48MGP-4X network switch

Cisco Catalyst C1300-48MGP-4X. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 32. MAC address table: 16000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you're ready for the Cisco Catalyst 1300 Series Switches.

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
MIB support: Y

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 32
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring: Yes
Policy-based routing: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
QinQ implementation: Selective QinQ
VLAN support: Yes
Virtual LAN features: Private VLAN, Voice VLAN

Data transmission

Switching capacity: 224 Gbit/s
MAC address table: 16000 entries
Number of queues: 8
Static route: Yes
Number of static routes: 990
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 3 MB

Security

DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL): Yes
Access Control List (ACL) rules: 1024
IGMP snooping: Yes
IGMP proxy: Yes
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH/SSL support: Yes
Authentication: MAC-based authentication, Web-based authentication
DoS attack prevention: Yes
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Protocols

GARP VLAN Registration Protocol (GVRP): Yes
IPv4 IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Rack mounting: Yes
Product colour: Grey
Reset button: Yes

Performance

Built-in processor: Yes
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Internal memory: 1000 MB
Flash memory: 512 MB
Plug and Play: Yes

Power

Power source: AC
AC input voltage: 100 - 220 V
AC input frequency: 50/60 Hz
Power plug type: Type C

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 445 mm
Depth: 350 mm
Height: 44 mm
Weight: 5.83 kg

Packaging data

Package width: 511.6 mm
Package depth: 574.7 mm
Package height: 108 mm
Package weight: 7.89 kg

Certificates

Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

Country of origin: China
