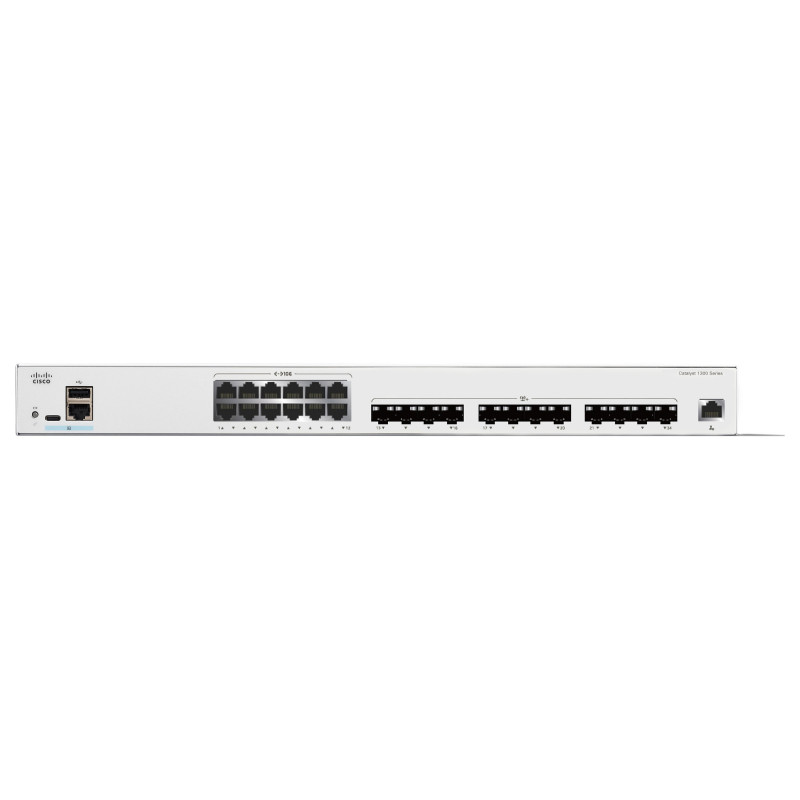

Cisco Catalyst C1300-24XTS network switch

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you're ready for the Cisco Catalyst 1300 Series Switches.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 12
Console port: RJ-45/USB Type-C

Network

Cable types supported: Cat5e
Feature: Port mirroring
Feature: Policy-based routing
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
QinQ implementation: Selective QinQ
Feature: VLAN support
Virtual LAN features: Private VLAN, Voice VLAN

Data transmission

Switching capacity: 480 Gbit/s
MAC address table: 16000 entries
Number of queues: 8
Feature: Static route
Number of static routes: 990
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 8 MB

Security

DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 1024
Feature: IGMP snooping
Feature: IGMP proxy
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Feature: SSH/SSL support
Authentication: MAC-based authentication, Web-based authentication
Feature: DoS attack prevention
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Feature: Rack mounting
Product colour: Grey
Feature: Reset button

Performance

Feature: Built-in processor
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Internal memory: 1000 MB
Flash memory: 512 MB
Noise level: 39 dB
Feature: Plug and Play
Mean time between failures (MTBF): 427188 h

Power

Power source: AC
AC input voltage: 100 - 220 V
AC input frequency: 50/60 Hz
Power consumption (typical): 88.2 W
Power plug type: Type C

Other features

Packaging content: Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 300.76 BTU/h

Weight & dimensions

Width: 445 mm
Depth: 273 mm
Height: 44 mm
Weight: 4.2 kg

Packaging data

Package width: 430 mm
Package depth: 574.7 mm
Package height: 105.9 mm
Package weight: 5.6 kg

Certificates

Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

Country of origin: China
