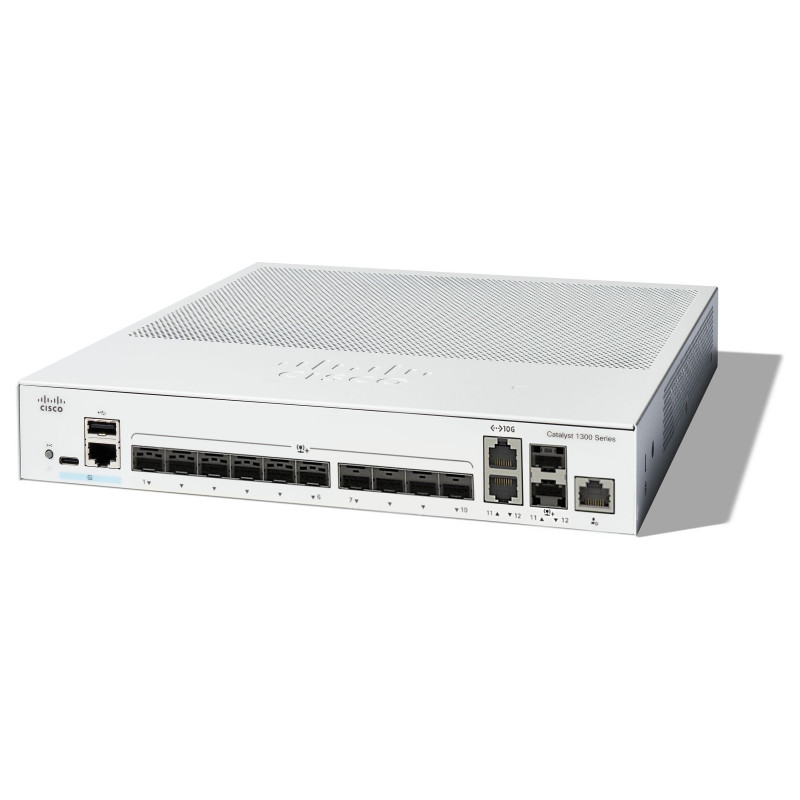

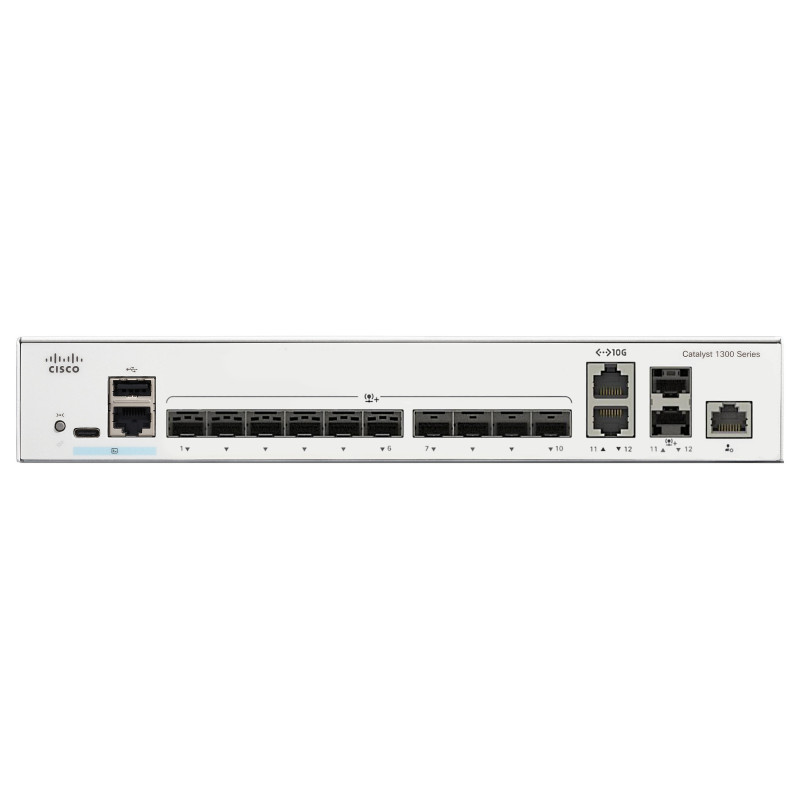

Cisco Catalyst C1300-12XS network switch

Cisco Catalyst C1300-12XS. Switch type: Managed, Switch layer: L2/L3. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you're ready for the Cisco Catalyst 1300 Series Switches.

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
MIB support: Y

Ports interfaces

10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 10

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring: Yes
Policy-based routing: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Voice VLAN

Data transmission

Switching capacity: 240 Gbit/s
MAC address table: 16000 entries
Number of queues: 8
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 3 MB

Security

DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL): Yes
Access Control List (ACL) rules: 1024
IGMP snooping: Yes
IGMP proxy: Yes
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH/SSL support: Yes
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Protocols

GARP VLAN Registration Protocol (GVRP): Yes
IPv4 IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Rack mounting: Yes
Product colour: Grey
Reset button: Yes
LED indicators: Yes

Performance

Built-in processor: Yes

Power

Power source: AC
AC input voltage: 100 - 220 V
AC input frequency: 50/60 Hz
Power plug type: Type C

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 300 mm
Depth: 268 mm
Height: 44 mm
Weight: 2.67 kg

Packaging data

Package width: 355.9 mm
Package depth: 402.3 mm
Package height: 103.7 mm
Package weight: 3.55 kg

Logistics data

Country of origin: China
