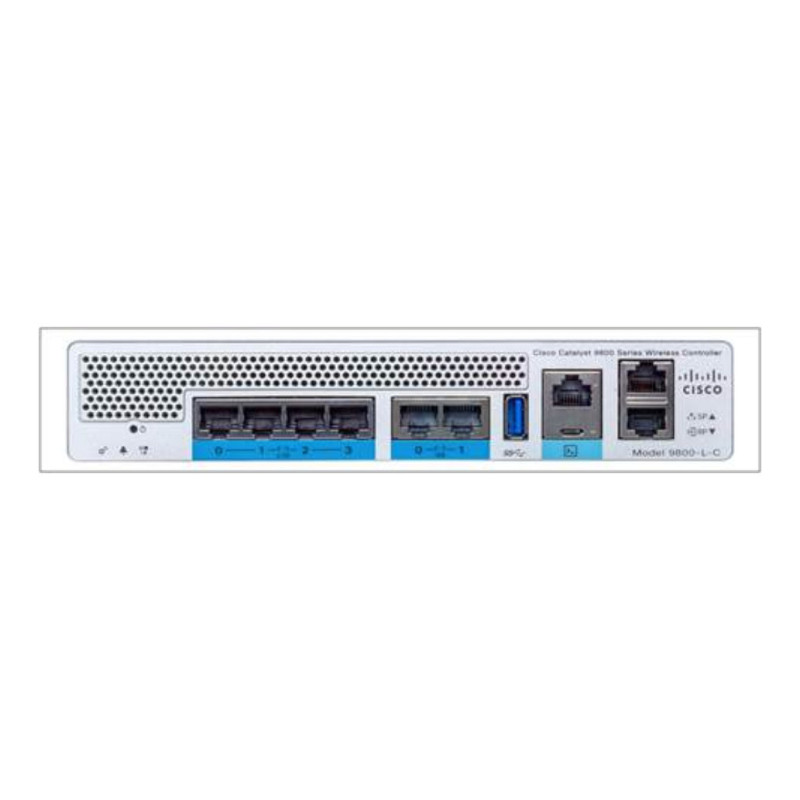

Cisco Catalyst 9800-L-C gateway / controller

Cisco Catalyst 9800-L-C. Product colour: Grey. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE.... Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2. Console port: RJ-45. Width: 215.9 mm, Depth: 230.1 mm, Height: 40.2 mm
The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.
Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.

Design

Product colour: Grey
LED indicators: Yes

Performance

Control display unit: No

Network

Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Wi-Fi: Yes

Security

Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2
VLAN support: Yes

Ports interfaces

Console port: RJ-45
Ethernet LAN (RJ-45) ports: 8

Management features

Web-based management: Yes
Quality of Service (QoS) support: Yes
Syslog: Yes

Weight dimensions

Width: 215.9 mm
Depth: 230.1 mm
Height: 40.2 mm
Weight: 1.79 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Certificates

Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
Certification: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3

Logistics data

Harmonized System (HS) code: 85176990
