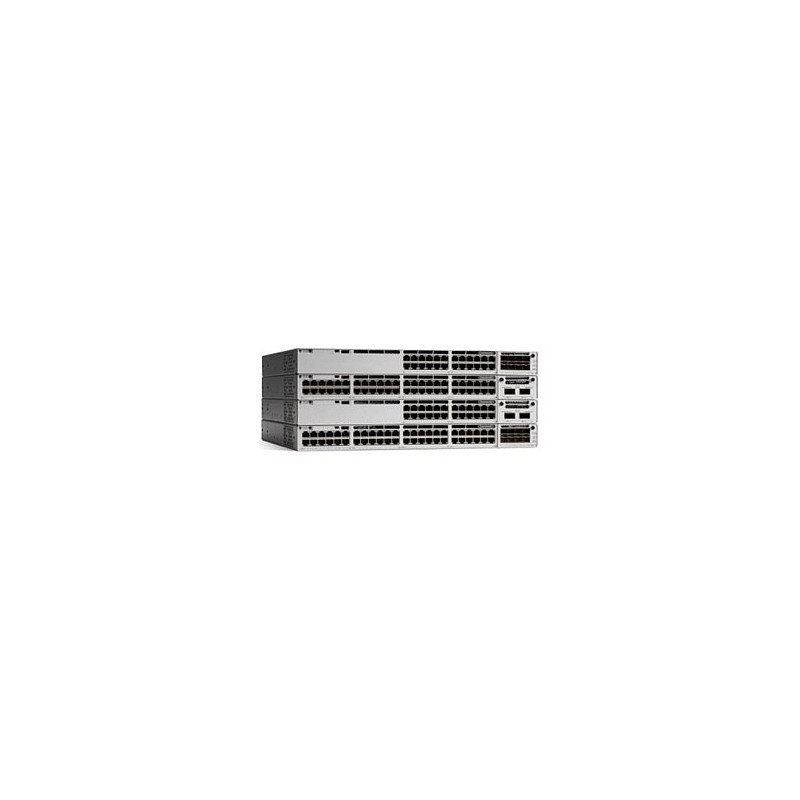

Cisco C9300L-24P-4G-E network switch

Cisco C9300L-24P-4G-E. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting

The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity: 1

Network

Feature: Full duplex
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000 Mbit/s
IPv6 routes: 16000
Feature: VLAN support
Number of VLANs: 4094

Data transmission

MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 9198

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 5120
Security algorithms: IPSEC, SNMPv2, SNMPv3

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Grey
LED indicators: Yes

Performance

Internal memory: 8000 MB
Flash memory: 16000 MB

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Operating altitude: 0 - 3000 m
