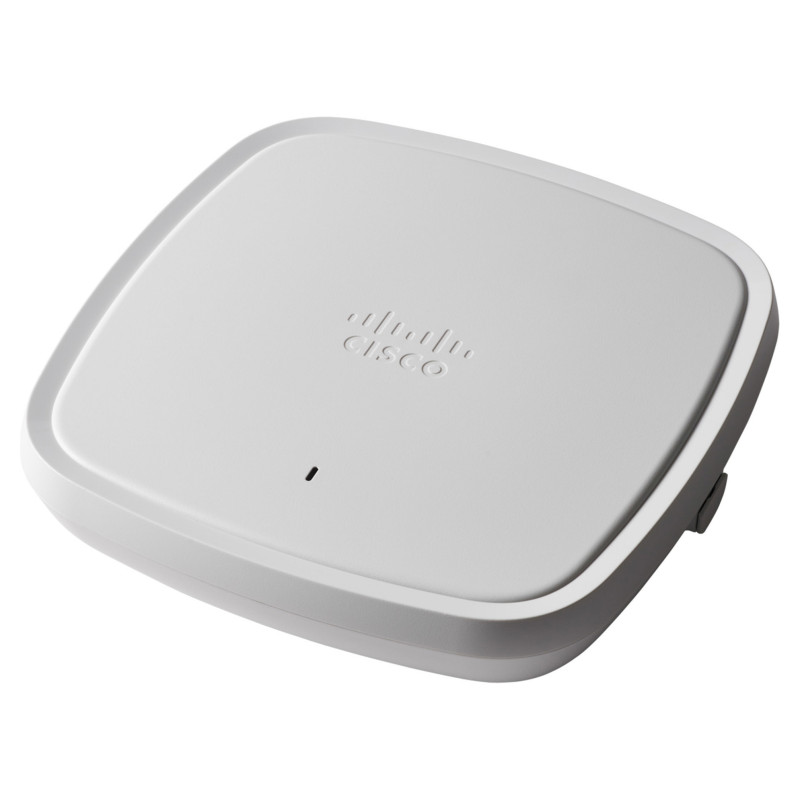

Cisco C9105AXI-E wireless access point

Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1488 Mbit/s. Security algorithms: WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Grey
The most versatile Cisco Catalyst 9105 Access Points goes beyond the Wi-Fi 6 (802.11ax) standard, offers high-density and resiliency, as well as network intelligence and IOT Application hosting. It comes with ceiling mount for remote workers, branch offices and small to medium-size deployments, and wall mount for hospitality, residence halls and other multi-dwelling units.

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 1488 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g
MIMO: Yes
MIMO type: Multi User MIMO
Maximal-Ratio Combining (MRC): Yes
Cyclic Shift Diversity (CSD): Yes

Security

Security algorithms: WPA3

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1

Power

Power over Ethernet (PoE): Yes
Power plug type: Type C

Design

Product colour: Grey

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi

Technical details

Products per shipping (inner) case: 1 pc(s)

Weight dimensions

Width: 150 mm
Depth: 150 mm
Height: 30 mm
Weight: 329.5 g

Packaging data

Package width: 220.7 mm
Package depth: 239.8 mm
Package height: 69.8 mm
Package weight: 907.03 g

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -30 - 70 °C
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4600 m

Logistics data

Harmonized System (HS) code: 85176990
Country of origin: Mexico
Products per master (outer) case: 1 pc(s)
