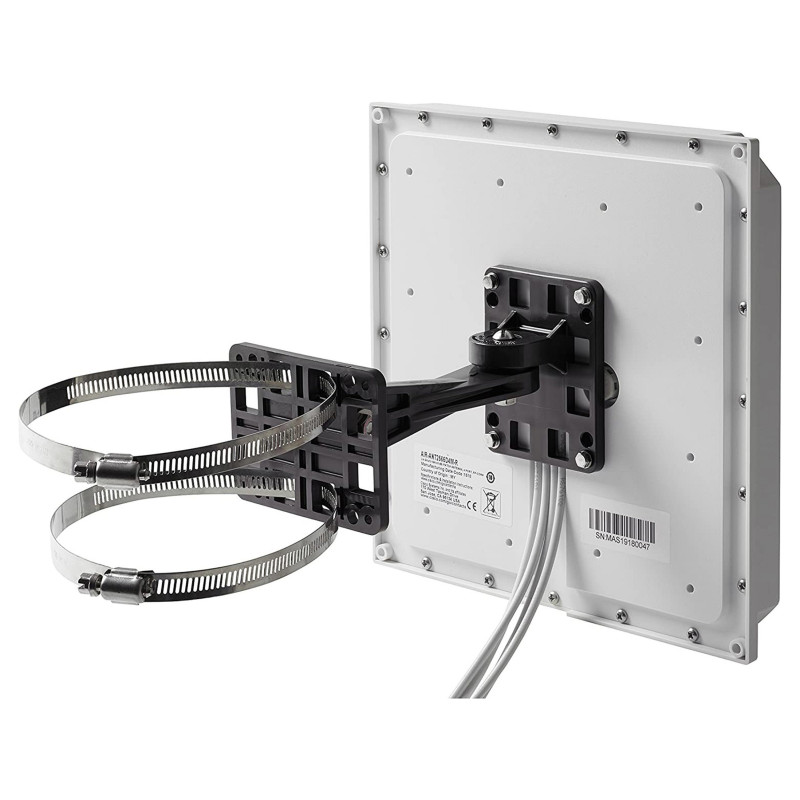

Cisco AIR-ANT2566D4M-RS network antenna

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=). Antenna gain level (max): 6 dBi, Frequency band: 2.4/5 GHz, Gain: 6 dBi. Antenna type: Directional antenna, Antenna connector type: RP-TNC, International Protection (IP) code: IP67. Width: 254 mm, Depth: 254 mm, Height: 41 mm. Package width: 260.1 mm, Package depth: 260.1 mm, Package height: 215.9 mm. Quantity per pack: 1 pc(s)
The Cisco Aironet AIR-ANT2566D4M-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.

Performance

Frequency band: 2.4/5 GHz
Gain: 6 dBi
Antenna gain (2.4 GHz): 6 dBi
Antenna gain (5 GHz): 6 dBi
Impedance: 50 Ω
Antenna gain level (max): 6 dBi

Features

Antenna type: Directional antenna
Antenna connector type: RP-TNC
International Protection (IP) code: IP67

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 85 °C

Weight dimensions

Width: 254 mm
Depth: 254 mm
Height: 41 mm
Weight: 1.13 kg

Packaging data

Package width: 260.1 mm
Package depth: 260.1 mm
Package height: 215.9 mm
Package weight: 1.25 kg

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Country of origin: Malaysia
