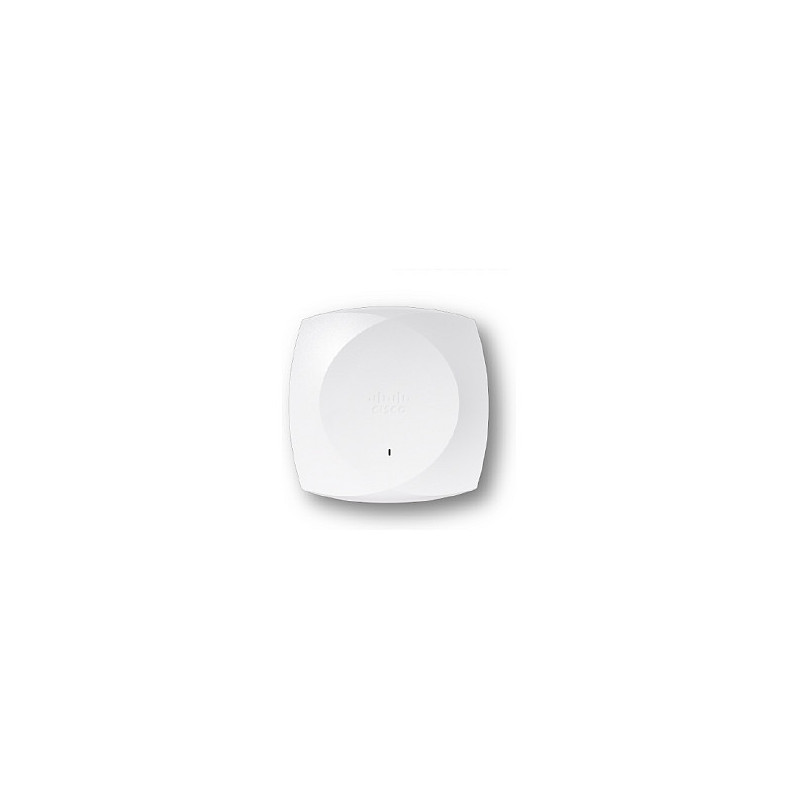

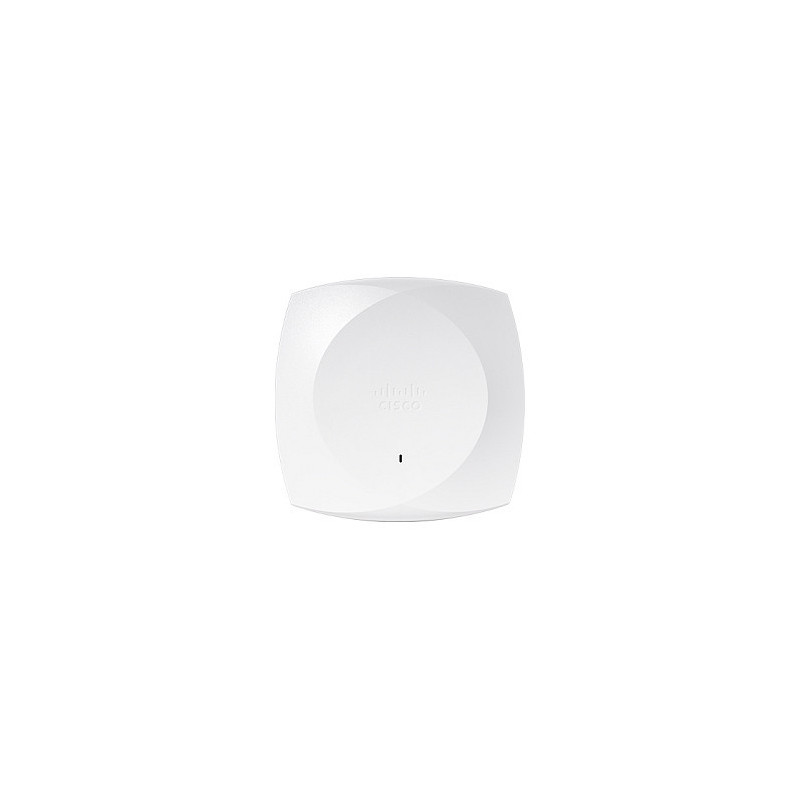

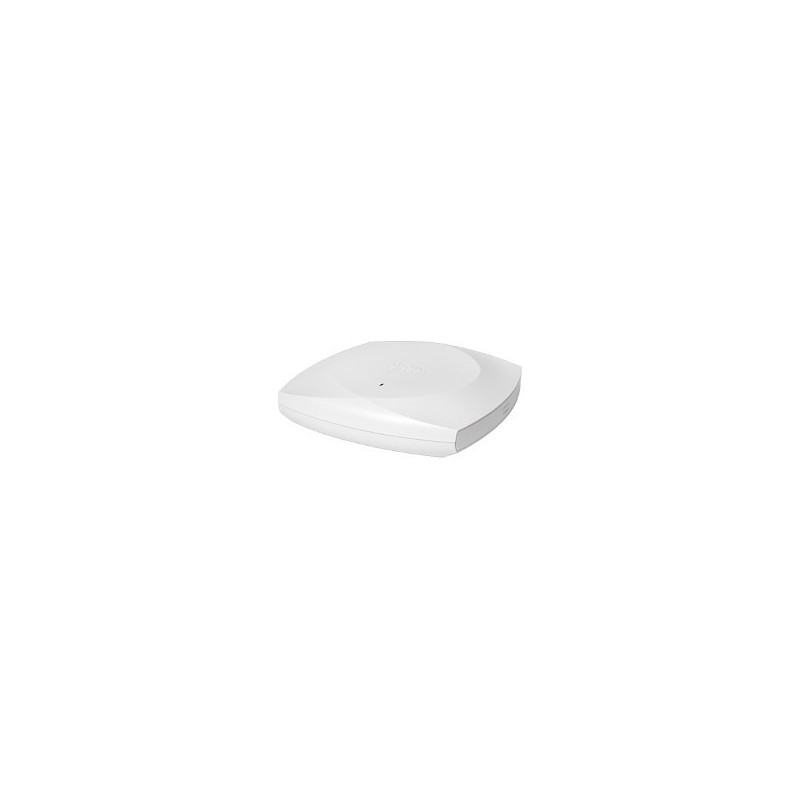

Cisco 9178 Series CW9178I-CFG wireless access point

Cisco 9178 Series CW9178I-CFG. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 24000 Mbit/s. Security algorithms: EAP, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product overview
Cisco's Wi-Fi 7 access points power the next generation of wireless experiences, designed to revolutionize connectivity and digital experiences. Offering unprecedented speeds, enhanced security, and resilient connectivity, these products are ideal for high-density environments and critical applications. They seamlessly integrate into your existing network, whether on-premises, cloud-based, or hybrid, providing flexible deployment options to suit various organizational needs.
The Cisco® Wireless Wi-Fi 7 access points enable transformative user experiences. Enterprises can leverage the predictability and low latency of Wi-Fi 7 to support better video streaming, augmented reality (AR), and virtual reality (VR) applications. By connecting people and things within physical spaces, Cisco's wireless solutions with Wi-Fi 7 offer real-time insights and actions such as indoor navigation and personalized user experiences.
Create differentiated customer experiences, accelerate digital business transformation, and prepare networks for the future with Cisco's Wi-Fi 7 solutions. With faster data transfer rates, reduced network congestion, and simplified network management with AI-driven insights and automation, the Cisco Wireless 9178 Series Access Points provide the foundation for the future of wireless.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Maximum data transfer rate: 24000 Mbit/s
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n
Bluetooth: Yes
Bluetooth version: 5.3
Bluetooth Low Energy (BLE): Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Band steering: Yes
BeamForming: Yes
Receiver sensitivity: 2.4 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW);5 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW);6 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW);

Security

Security algorithms: EAP, WPA2, WPA3

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1

Power

Power over Ethernet (PoE): Yes
Power consumption (typical): 9 W

Design

Placement: Ceiling, Wall
Product colour: White

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 6
Antenna gain level (max): 7 dBi

Performance

Flash memory: 16000 MB
Internal memory: 4096 MB

Weight dimensions

Width: 251.5 mm
Depth: 251.5 mm
Height: 50.8 mm
Weight: 1.87 kg

Packaging content

Quantity per pack: 1 pc(s)
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -30 - 70 °C
