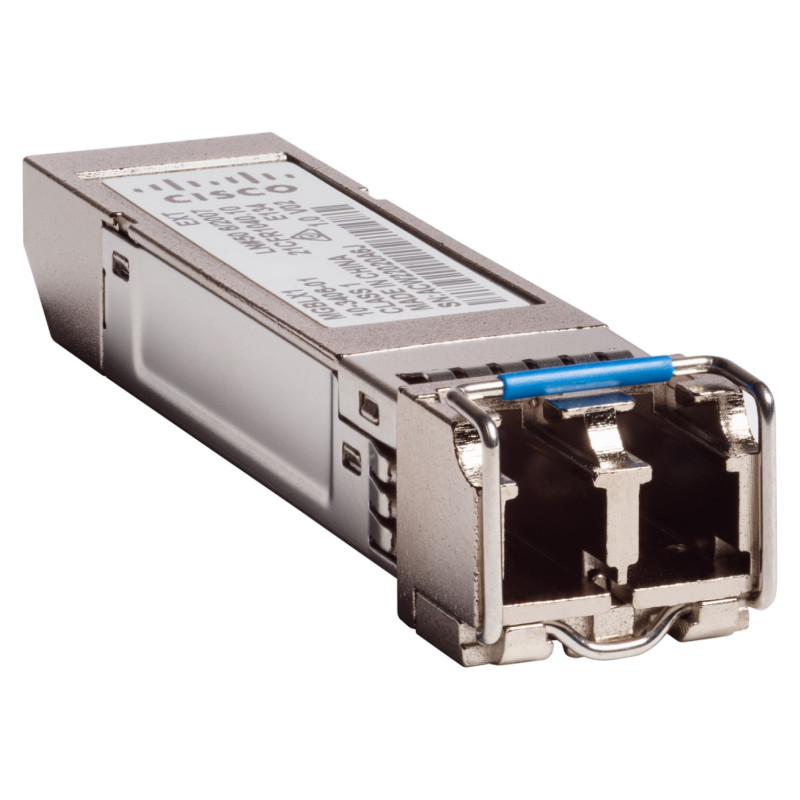

Cisco 1000BASE-LX SFP Transceiver network media converter

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Power consumption (typical): 1 W. Width: 55.7 mm, Depth: 13.4 mm, Height: 8.5 mm

The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.

The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.

Network

Maximum data transfer rate: 1000 Mbit/s
Cabling technology: 1000Base-LX

Performance

Maximum transfer distance: 10000 m
Wavelength: 1310 nm

Features

Feature: Hot-swap
Feature: Plug and Play

Ports & interfaces

Connectivity technology: Wired

Power

Power consumption (typical): 1 W

Weight & dimensions

Width: 55.7 mm
Depth: 13.4 mm
Height: 8.5 mm
Weight: 20 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 90%

Packaging data

Package width: 81.3 mm
Package depth: 127 mm
Package height: 25.4 mm
Package weight: 50 g

Certificates

Safety: FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
Certification: FCC Part 15 Class B,EN55022 Class B (CISPR 22B),VCCI Class B.

Logistics data

Country of origin: China
Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 85176990

Other features

Transmit power range: -9.5 - -3 dBmW
Dimensions (WxDxH): 13.4 x 55.7 x 8.5 mm
Interface: SFP
Connector(s): LC-LC
Feature: Full duplex
Fiber type: SMF
