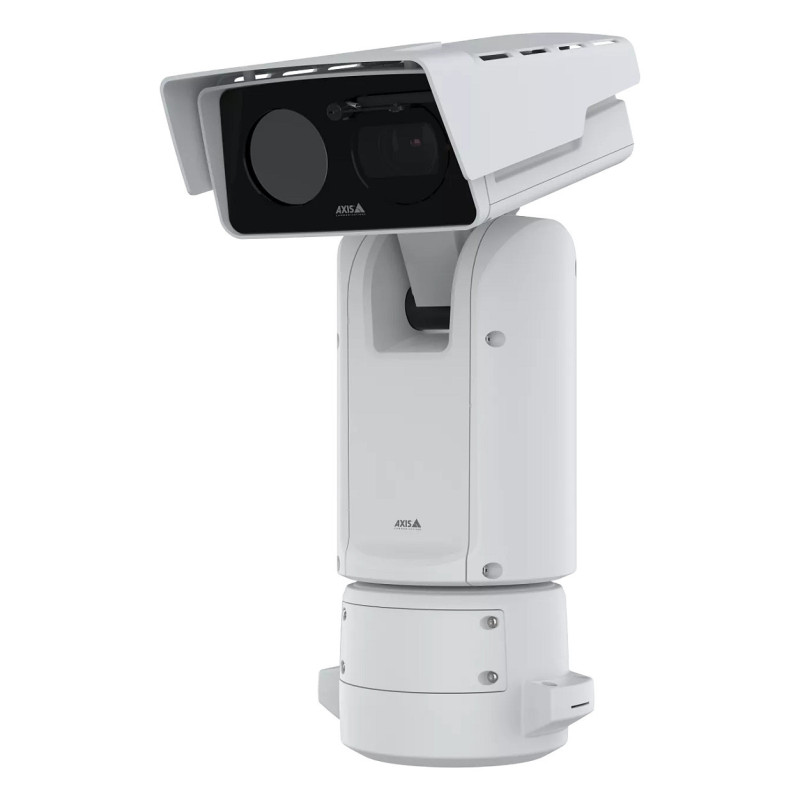

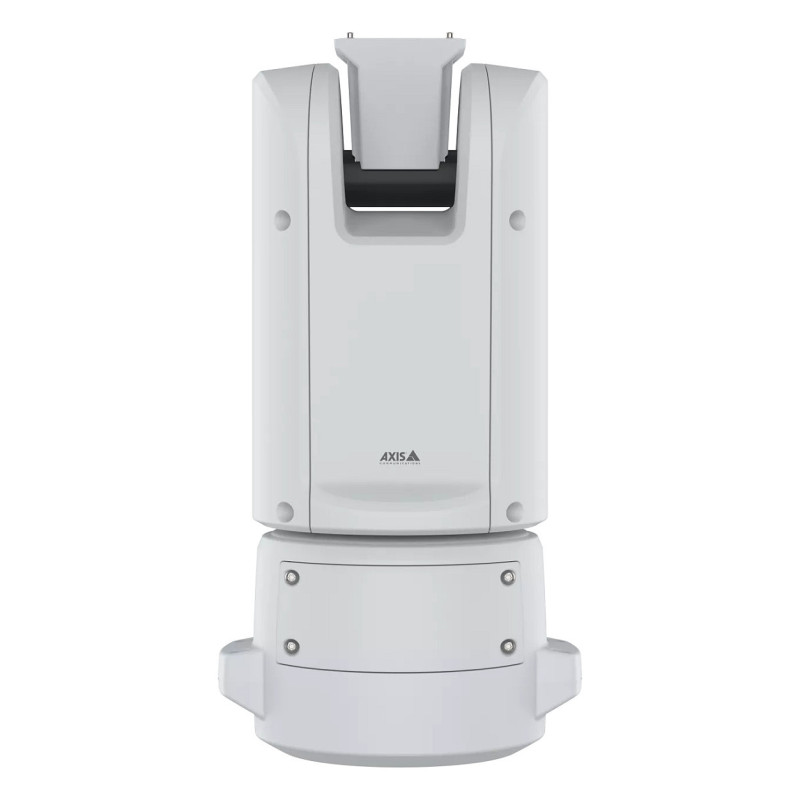

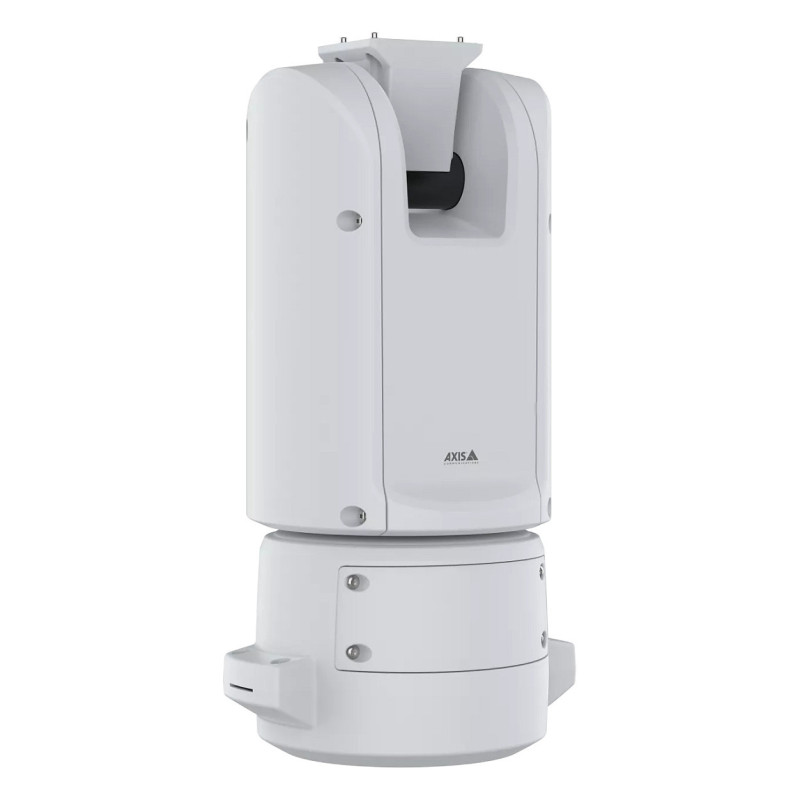

Axis TQ1818-E

Axis TQ1818-E. Placement supported: Outdoor, Product colour: White, International Protection (IP) code: IP66. Maximum weight capacity: 5 kg, Turn angle: 360°, Tilt angle range: -90 - 45°. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s. Input voltage: 56 V, Power consumption (typical): 17 W, Power consumption (max): 150 W. Width: 229 mm, Depth: 207 mm, Height: 396 mm

AXIS TQ1818-E is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements - putting operators on the spot in an instant or providing smooth panoramic viewing.

Swift and smooth

AXIS TQ1818-E provides an unobstructed 360° endless pan and a ground-to-sky view of 135°, offering maximum situational awareness. It supports a selected range of Axis box and thermal cameras. With flexible mounting options, including wall, column, and pole mounts, AXIS TQ1818-E is simple to install in various environments. Dual RJ45 and SFP interfaces enable secure and reliable network connections over long distances. Built-in de-icing control ensures continuous operation in extreme temperatures, delivering high-performance results in any condition. The positioning unit is specifically designed to be reliable, robust and weatherproof.

Features

Placement supported: Outdoor
Product colour: White
International Protection (IP) code: IP66
IK code: IK10
Protection features: Weather resistant
Certification: UL/cUL, CE, KC, VCCI, RCM

Ergonomics

Maximum weight capacity: 5 kg
Turn angle: 360°
Tilt angle range: -90 - 45°

Ports & interfaces

Connectivity technology: Wired
Feature: Line-in
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

Power

Input voltage: 56 V
Power consumption (typical): 17 W
Power consumption (max): 150 W

Weight & dimensions

Width: 229 mm
Depth: 207 mm
Height: 396 mm
Weight: 10.5 kg

Packaging data

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 100%
Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%
