Axis T8154

Axis T8154. Type: Midspan, Brand compatibility: Axis, Product colour: White. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rated power: 60 W, Input voltage: 100-240 V, Input frequency: 50/60 Hz. Width: 80 mm, Depth: 184 mm, Height: 50 mm. Quantity per pack: 1 pc(s)
AXIS T8154 60 W SFP Midspan

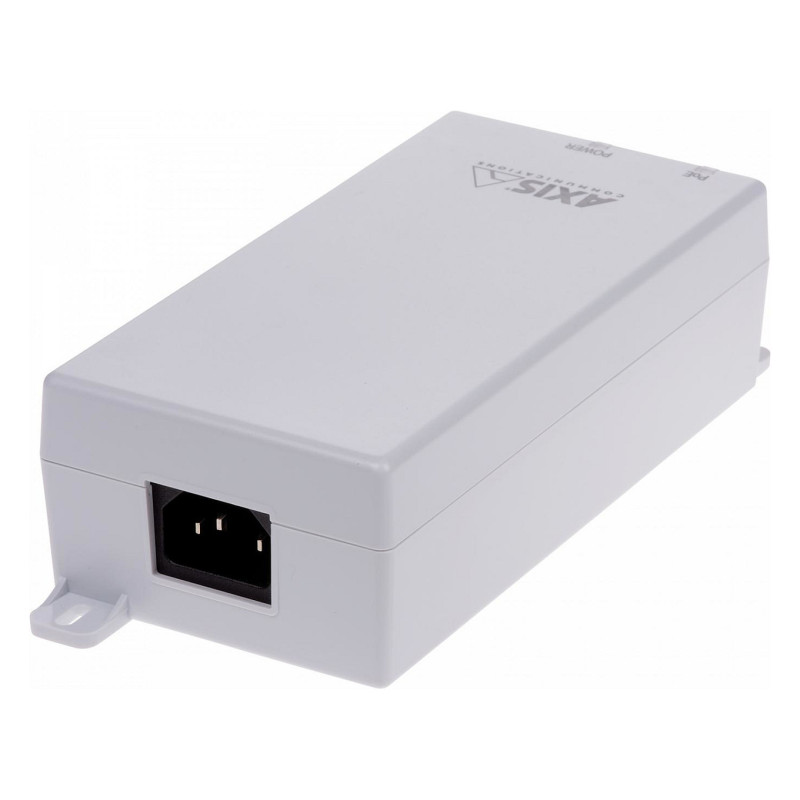

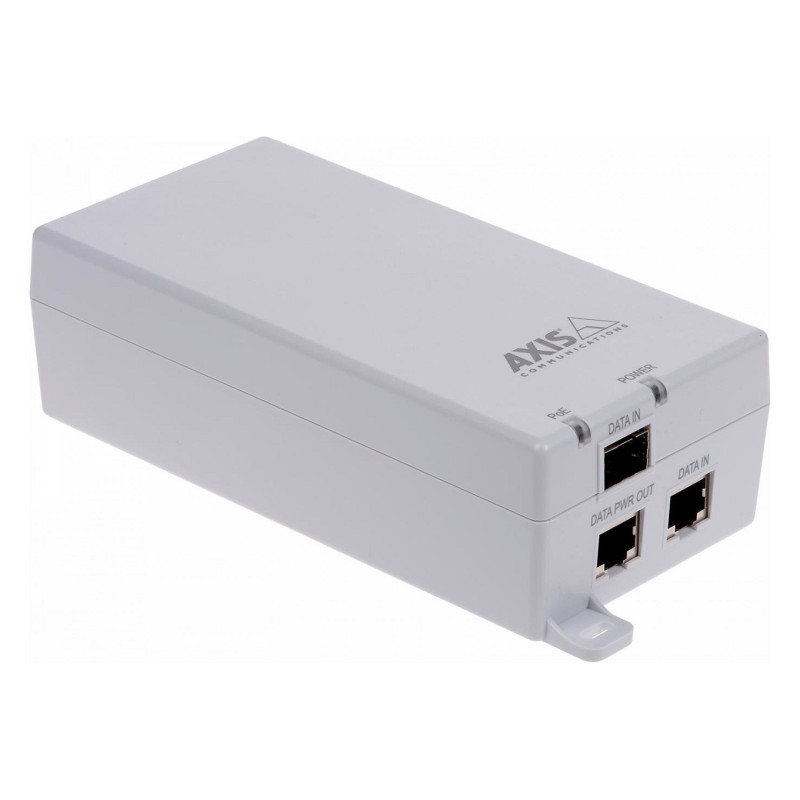

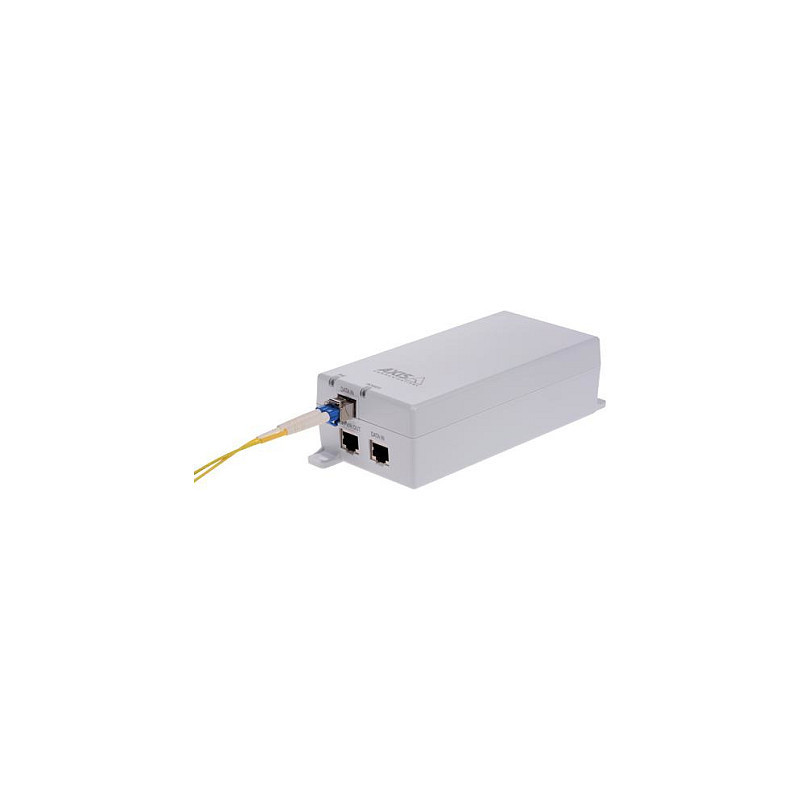

AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.

Features

Type: Midspan
Brand compatibility: Axis
Compatibility: M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V
Product colour: White
Networking standards: IEEE 802.3bt
LED indicators: Yes
Certification: IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000-6-1, EN 61000-6-2, EN 50121-4, IEC 62236-4

Ports interfaces

Ethernet LAN data rates: 10,100,1000 Mbit/s

Power

Rated power: 60 W
Input voltage: 100-240 V
Input frequency: 50/60 Hz
Output voltage: 55 V
Power source type: AC

Weight dimensions

Width: 80 mm
Depth: 184 mm
Height: 50 mm
Weight: 517 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Quick installation guide: Yes

Operational conditions

Operating temperature (T-T): -50 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 0 - 95%

Technical details

Doesn't contain: PVC
