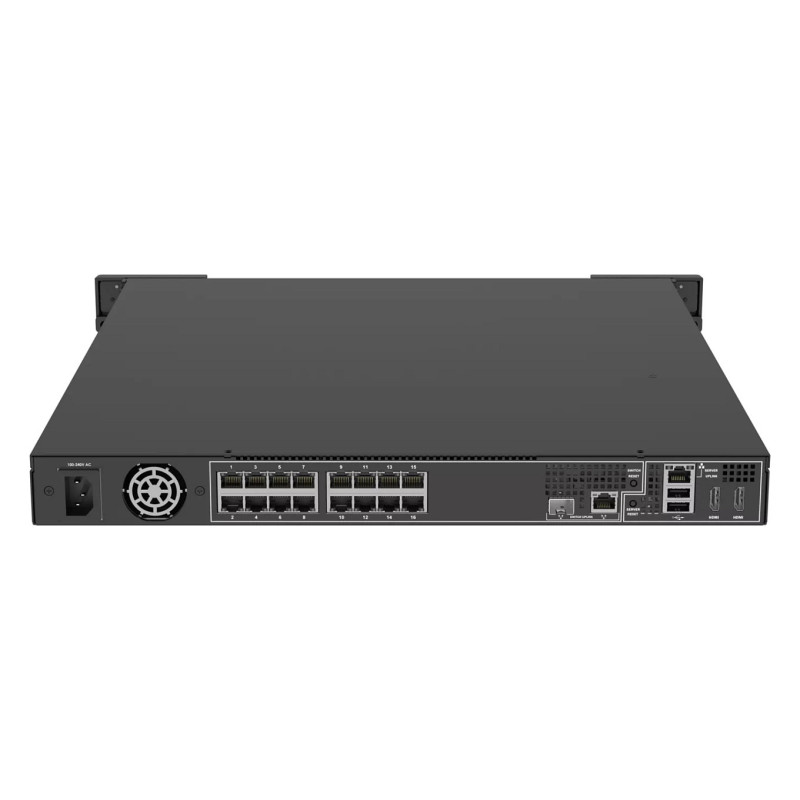

Axis S2216 Mk II

Axis S2216 Mk II. Video input channels: 16 channels, Maximum resolution: 7680 x 4320 pixels, Video recording modes: 1080p. HDD capacity: 4 TB, Maximum storage capacity: 16 TB, RAID levels: 0, 1, 10. SSD capacity: 256 GB. Rack capacity: 1U, Product colour: Black, Certification: FIPS 140-2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM. Power consumption (max): 130 W, Power consumption (typical): 110 W, AC input voltage: 100-240 V

AXIS Camera Station S2216 Mk II Rack Appliance

This 16-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 16-port PoE switch, and 8 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 16 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What's more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.

Performance

Video input channels: 16 channels
Video recording modes: 1080p
Maximum resolution: 7680 x 4320 pixels
Internal memory: 16000 MB
Internal memory type: DDR5
Throughput data rate: 256 Mbit/s
Maximum frame rate: 30 fps

Hard drive

Number of HDDs installed: 2
HDD capacity: 4 TB
Number of HDDs supported: 4
Maximum storage capacity: 16 TB
Feature: RAID support
RAID levels: 0, 1, 10

Solid state drive

Number of SSDs installed: 1
SSD capacity: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 16
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
HDMI ports quantity: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Fiber ports quantity: 1

Features

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Certification: FIPS 140-2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM

Processor

Feature: Built-in processor

Power

Power consumption (max): 130 W
Power consumption (typical): 110 W
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Total Power over Ethernet (PoE) budget: 520 W

System requirements

Windows operating systems supported: Windows 11

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -40 - 65%
Storage temperature (T-T): 10 - 90 °C
Storage relative humidity (H-H): 10 - 90%

Technical details

Compliance certificates: Trade Agreements Act (TAA)

Weight & dimensions

Width: 483 mm
Depth: 440 mm
Height: 45 mm
Weight: 11 kg

Packaging content

Cables included: AC
