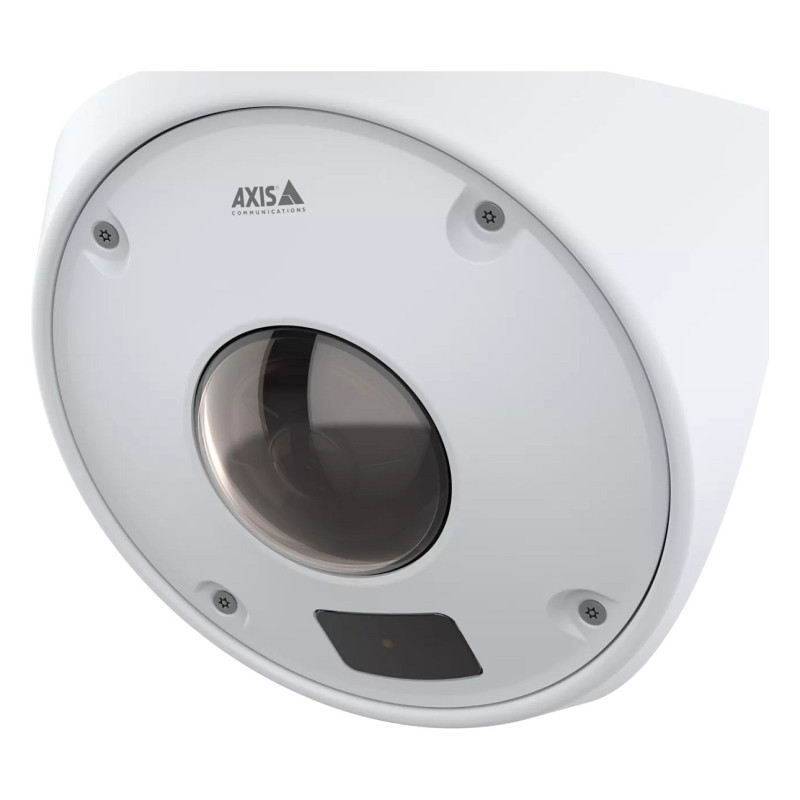

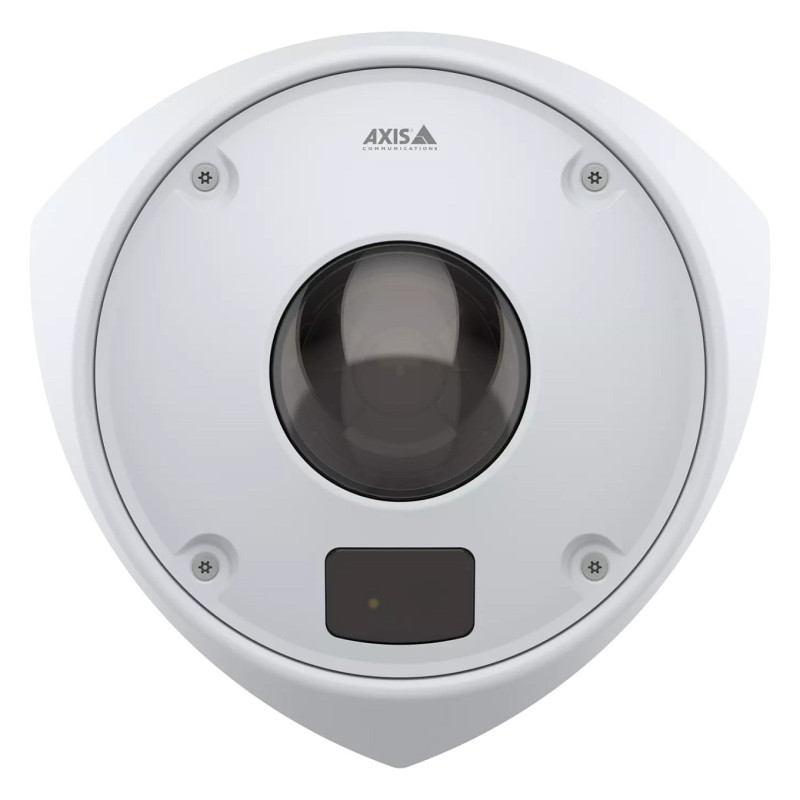

Axis Q9227-SLV

Axis Q9227-SLV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Corner. Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 89.2°, Tilt angle range: -10 - 10°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m
This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.
Two-way communication and full coverage
AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What's more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.
AI-powered analytics and strong cybersecurity
Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Occupant safety and privacy
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn't irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It's easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in light: Yes
Languages support: Multi
Dynamic range: 120 dB
Certification: UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE

Design

Form factor: Corner
Mounting type: Ceiling
Product colour: White
LED indicators: Yes
Housing material: Polycarbonate (PC), Stainless steel
International Protection (IP) code: IP66, IP69, IP6K9K
Fog proof: Yes

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 115°
Lens viewing angle, vertical: 89.2°
Tilt angle range: -10 - 10°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.7 mm (1 / 1.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 46.1 m
Observe distance: 19.4 m
Recognize distance: 10 m
Auto focus: Yes
Maximum aperture number: 2
Identify distance: 5.1 m
Fixed focal length: 3.7 mm
Closest focusing distance: 1 m

Night vision

Night vision: Yes
Night vision distance: 10 m
B/W night vision distance: 10 m
LED type: IR/White
Infra-red wavelength: 940 nm

Video

Maximum resolution: 2880 x 2160 pixels
Video compression formats: H.264, H.265
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness, White balance
Privacy masking: Yes

Audio

Built-in speaker(s): Yes
Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Frequency range: 820 - 5075 Hz
Signal-to-Noise Ratio (SNR): 55 dB
Built-in microphone: Yes
Sample rates: 8 - 48 kHz

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
Internal memory: 2000 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes

Security

Video motion detection: Yes
Active tampering alarm: Yes
Security algorithms: EAP-TLS, MSCHAPv2
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Crossing line, Line crossing detection
Pixel counter: Yes
Human and vehicle targets classification: Yes
Network access storage (NAS): Yes

Power

Power source type: PoE
Power consumption (max): 3.98 W
Power consumption (Power over Ethernet (PoE)): 12.95 W

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 1.74 kg

Packaging data

Package type: Box

Packaging content

Number of cameras: 1
User guide: Yes
Terminal block included: Yes

Technical details

Iris: Yes
