Axis Q6358-LE NM

Axis Q6358-LE NM. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

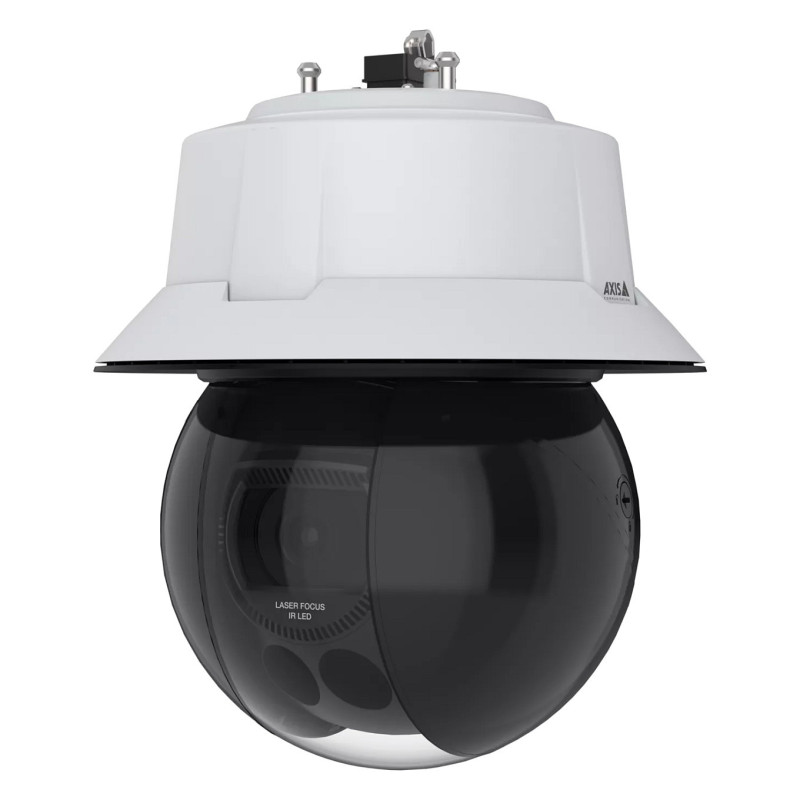

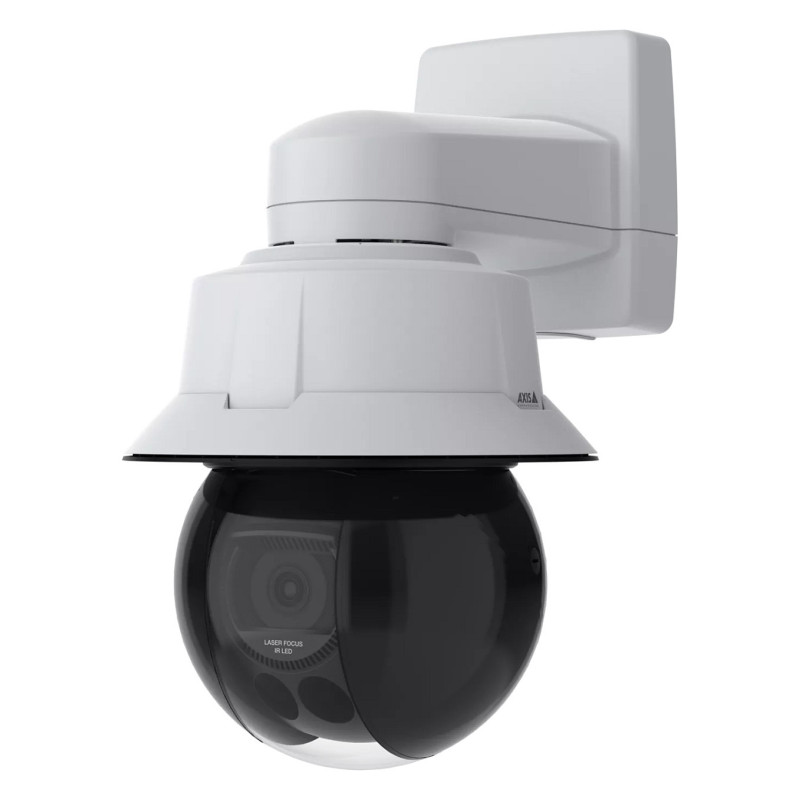

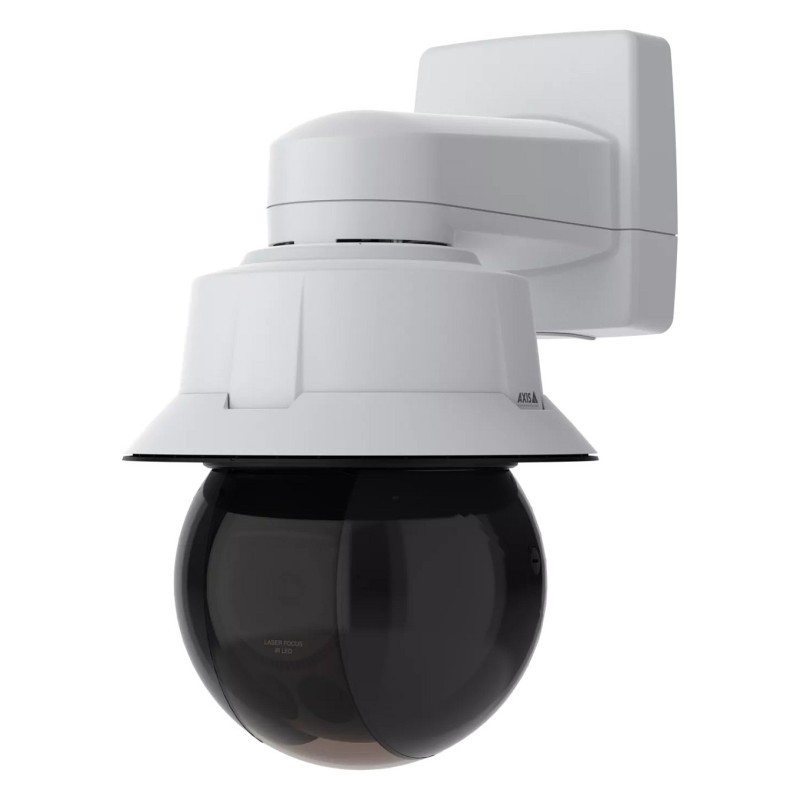

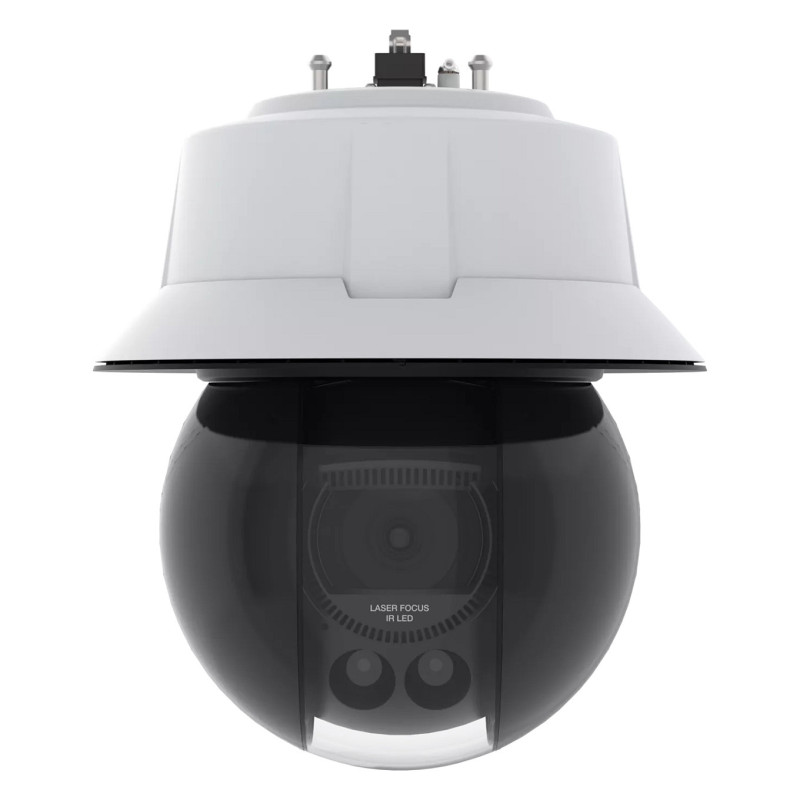

AXIS Q6358-LE PTZ Camera
Built on ARTPEC-9, this high-performance, AI-powered PTZ camera delivers unmatched image quality with great detail and high performance in all light conditions. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Super surveillance
AXIS Q6358-LE offers outstanding 4K UHD and features an extremely light-sensitive ½" inch sensor to deliver clear, bright images and better handling of shadows. Lightfinder and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness up to 300 m without the need for extra lighting. With 31x optical zoom and quick zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus- every time. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, this PTZ camera offers support for audio and four I/O ports with the included AXIS TU8003 90 W Connectivity Midspan.
Secure inside and out
AXIS Q6358-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, and NEMA 4x-rated device is impact- and weather-resistant. And its defog functionality ensures clear images despite fog or smog. Thanks to shock detection, you can be informed if there's any attempts to interfere with the camera. Furthermore, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What's more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
AI-powered with advanced features
Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you'll be notified if your image is blocked, degraded, under-exposed, or redirected. It also offers autotracking 2 with click-and-track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Additionally, where privacy must be kept, chameleon masking makes it possible to automatically change the color of the masking depending on the background color of the image.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Preset point
Tour recording: Yes
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: EMCEN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class AKorea: KS C 9835, KS C 9832 Class AUSA: FCC Part 15 Subpart B Class ARailway: IEC 62236-4IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B), ISO 12944-6 C5NIST SP500-267ETSI EN 303 645, BSI IT Security Label, FIPS 140

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
Protection features: Impact resistant, Weather resistant
International Protection (IP) code: IP66, IP67
IK code: IK10
Weatherproof: Yes

Camera

Minimum illumination: 0.009 lx
Lens viewing angle, horizontal: 60.6°
Lens viewing angle, vertical: 36.5°
Tilt angle range: -20 - 90°
Tilt speed: 550 °/sec
Pan range: 0 - 360°
Pan speed: 550 °/sec
Camera shutter speed: 1/111000 - 1/2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2 mm (1 / 2")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Zoom capability: Yes
Optical zoom: 31x
Digital zoom: 12x
Number of lenses: 1
Zoom speed: 1 s
Focal length range: 6.91 - 214.64
Auto focus: Yes

Night vision

Night vision: Yes
Night vision distance: 300 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate: 60 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Sharpness
Text caption overlay: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Storage

Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 8192 MB
Internal memory: 4096 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object

Power

Power consumption (typical): 13.7 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 239 mm
Depth: 239 mm
Height: 291 mm
Weight: 4.4 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1

Other features

Doesn't contain: CFR, PVC/BFR
