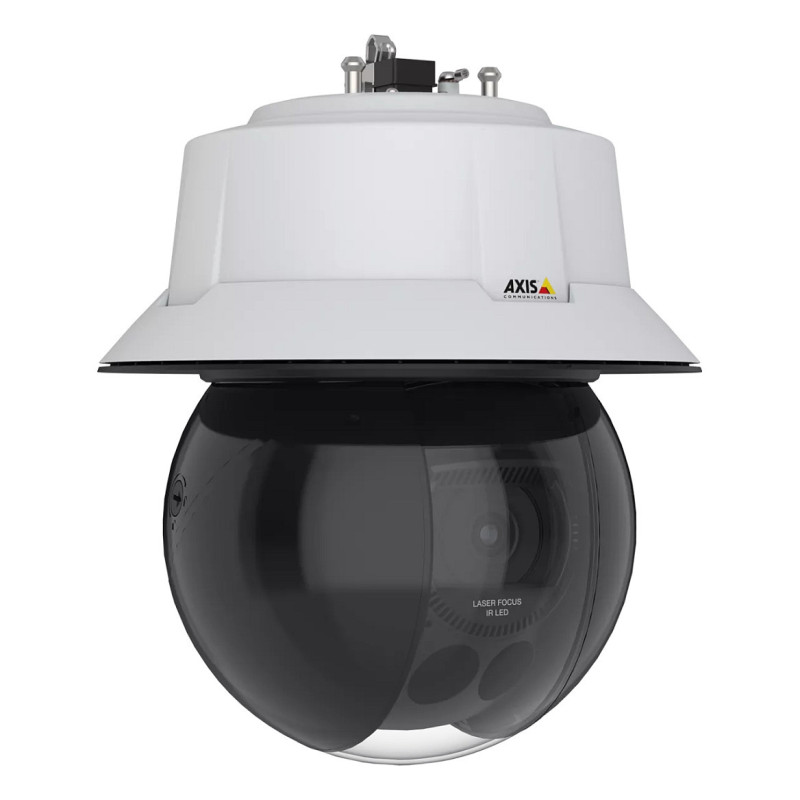

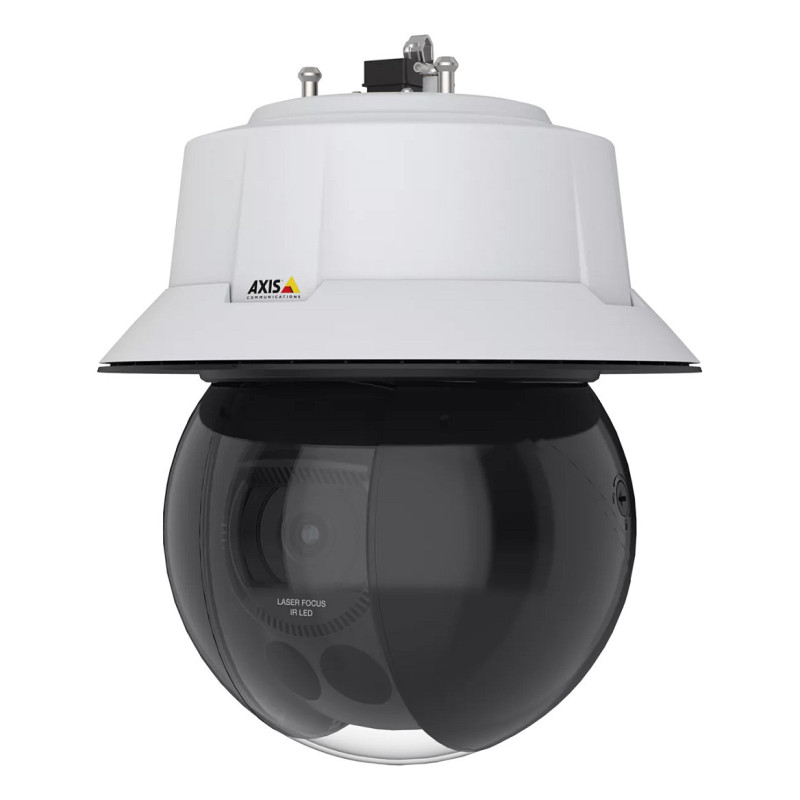

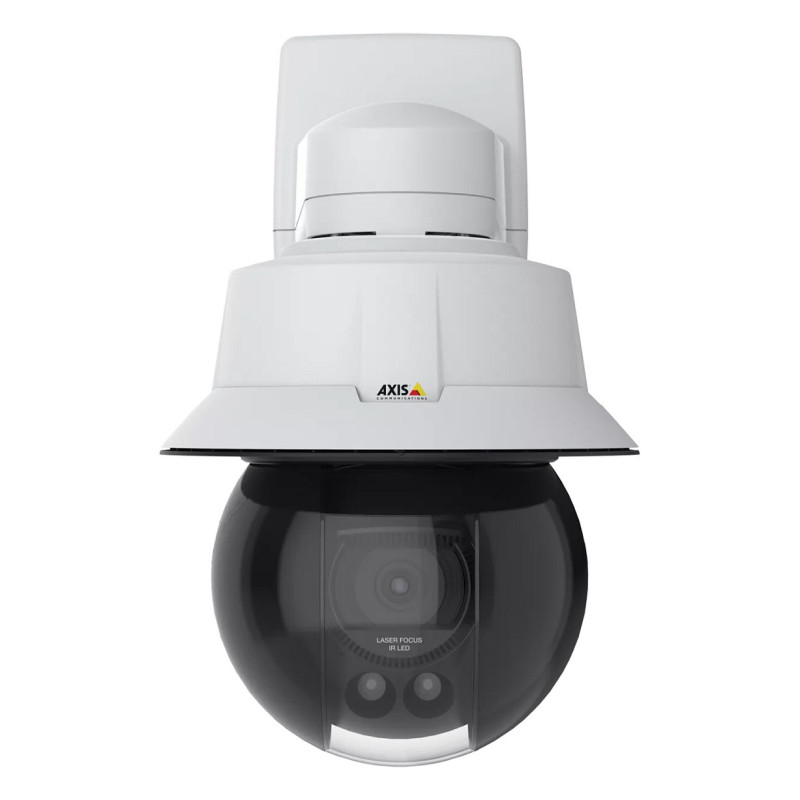

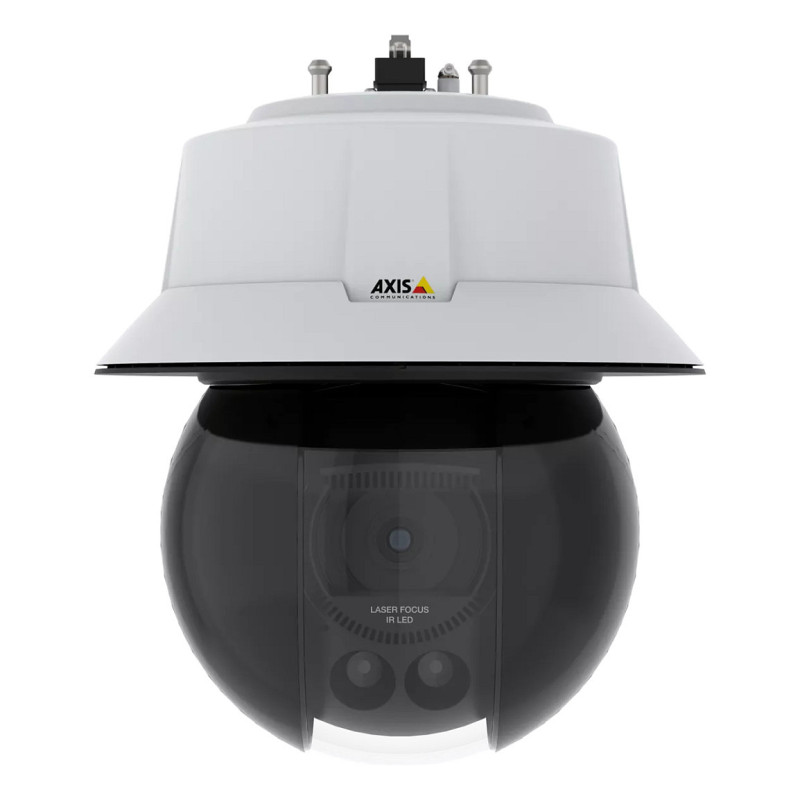

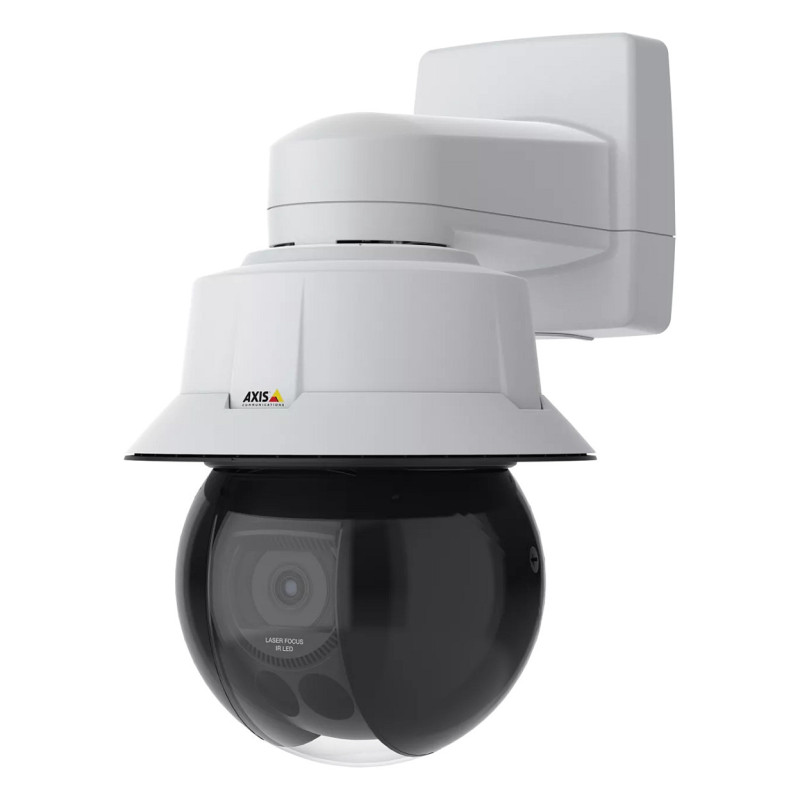

Axis Q6315-LE

Axis Q6315-LE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Tour recording: Yes
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250, Type 4X, NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B)

Design

Form factor: Dome
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10
Fog proof: Yes

Camera

Minimum illumination: 0.001 lx
Lens viewing angle, horizontal: 60.6°
Lens viewing angle, vertical: 36.5°
Tilt angle range: -90 - 20°
Tilt speed: 550 °/sec
Pan range: 0 - 360°
Pan speed: 550 °/sec
Camera shutter speed: 111000 - 1/2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2 mm (1 / 2")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 31x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 6.91 - 214.64 mm
Auto focus: Yes
Maximum aperture number: 4.6
Minimum aperture number: 1.36

Night vision

Night vision: Yes
Night vision distance: 300 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 180, 1920 x 1080 (HD 1080)
Frame rate: 60 fps
Video streaming: Yes
Image quality adjustment: Brightness, Colour depth, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3bt
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
IP address filtering: Yes
Security algorithms: EAP-TLS
HTTPS encryption: Yes
Digest authentication: Yes

Management features

Behavior analysis: Line crossing detection

Operational conditions

Operating temperature (T-T): -50 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 261 mm
Diameter: 23.9 cm
Weight: 4.8 kg

Other features

Doesn't contain: PVC
