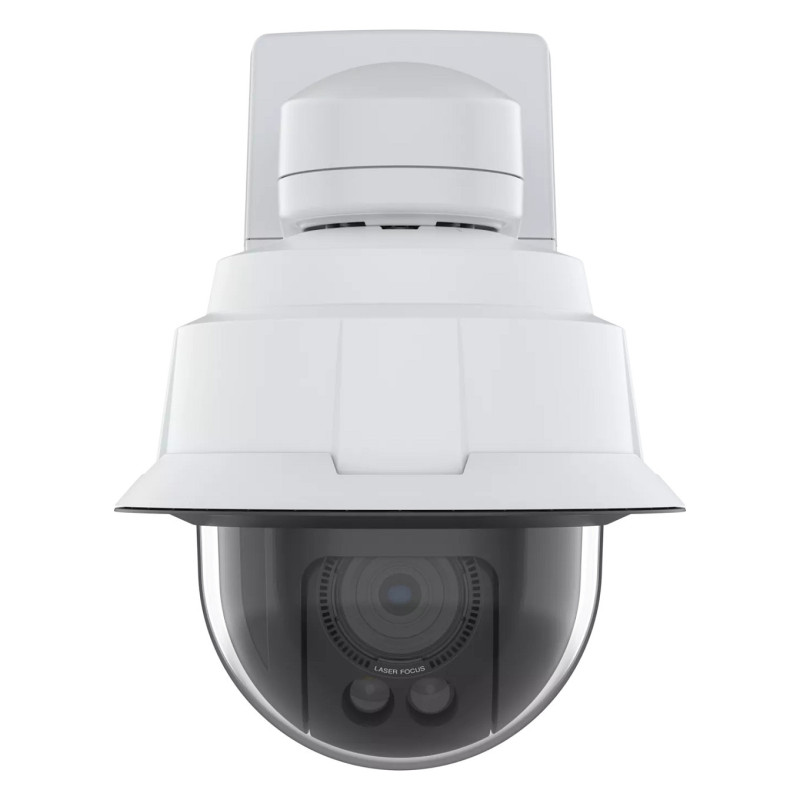

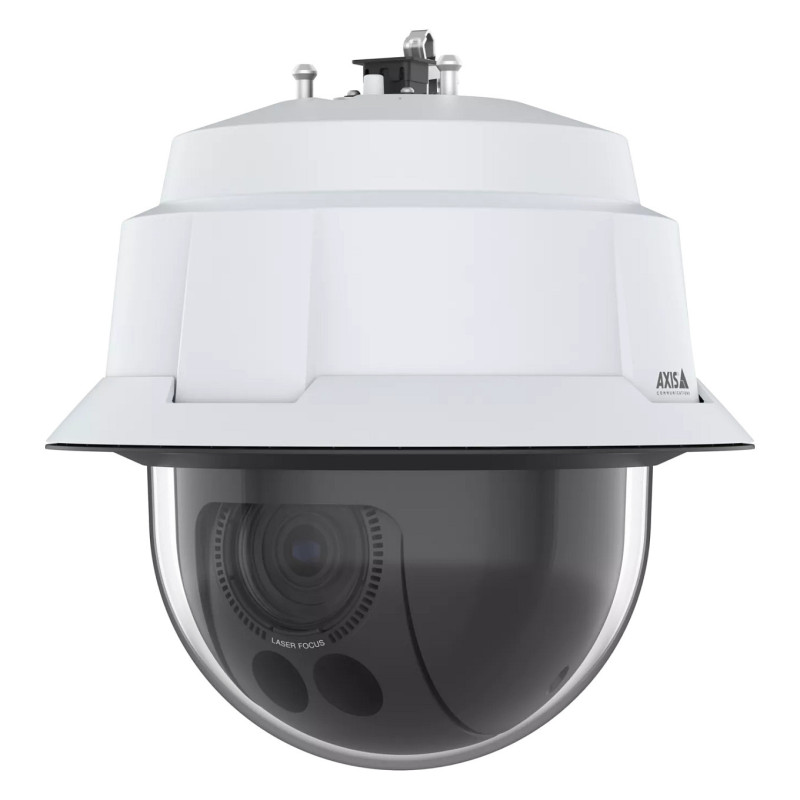

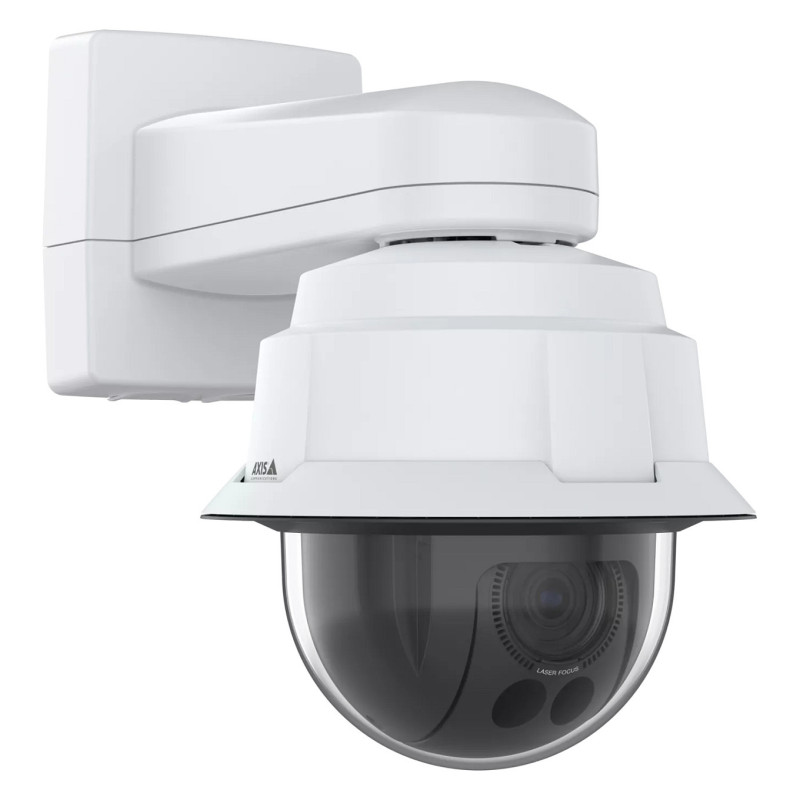

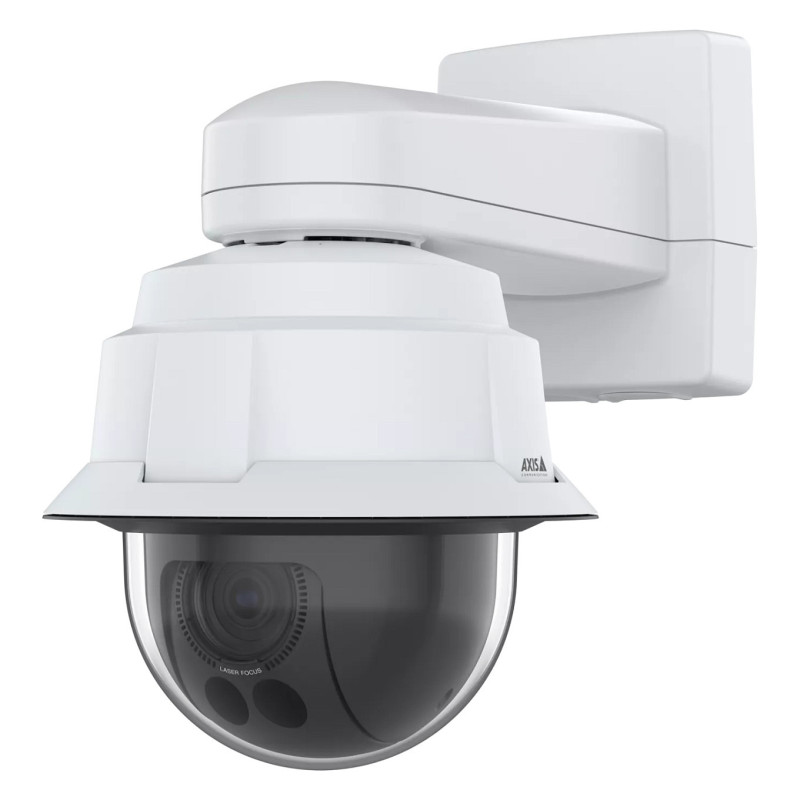

Axis Q6086-E PTZ

Axis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm

AXIS Q6086-E PTZ Camera

This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.

Superior details and light sensitivity

Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½" sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.

Powerful, next-generation analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What's more, chameleon masking safeguards privacy.

Robust with strong cybersecurity

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it's both impact and weather-resistant. The camera's operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Preset point
Feature: Auto-tracking
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: CE, FCC, ICES, KC, VCCI

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White, Black
Housing material: Polycarbonate (PC), Aluminium
Protection features: Wear resistant
International Protection (IP) code: IP66
IK code: IK10
Feature: Fog proof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.009 lx
Lens viewing angle, horizontal: 61.5°
Lens viewing angle, vertical: 37.3°
Tilt angle range: -90 - 0°
Tilt speed: 500 °/sec
Pan range: 0 - 360°
Pan speed: 500 °/sec
Camera pixel size: 2.9 µm
Camera shutter speed: 1/49500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2 mm (1 / 2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 32x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 6.64 - 225.5 mm
Feature: Auto focus
Maximum aperture number: 5.1
Minimum aperture number: 1.7
Detect distance (wide): 92.6 m
Detect distance (tele): 3118.4 m
Observe distance (wide): 36.7 m
Observe distance (tele): 1237.5 m
Recognize distance (wide): 18.5 m
Recognize distance (tele): 623.6 m
Identify distance (wide): 9.3 m
Identify distance (tele): 311.8 m
Closest focusing distance: 3 m

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, MPEG4, H.262, M-JPEG
Supported graphics resolutions: 2688 x 1512, 640 x 360
Frame rate: 60 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Saturation, Contrast, Brightness, Sharpness
Feature: Text caption overlay
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.1ar, IEEE 802.3bt
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Security algorithms: HTTPS, TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Crossing line, Abandoned object
Feature: Pixel counter
Feature: Human and vehicle targets classification

Power

Power source type: PoE
Power consumption (typical): 10 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 264 mm
Depth: 264 mm
Height: 279 mm
Weight: 4.1 kg

Sustainability

Compliance certificates: Trade Agreements Act (TAA), RoHS, REACH

Packaging content

Number of cameras: 1

Other features

Doesn't contain: PVC/BFR, CFR
