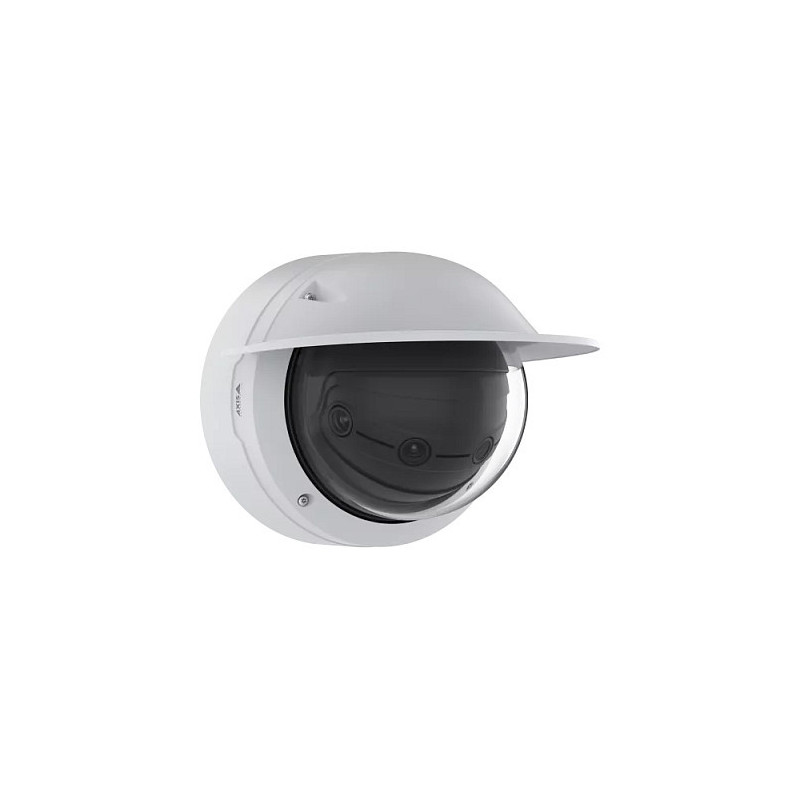

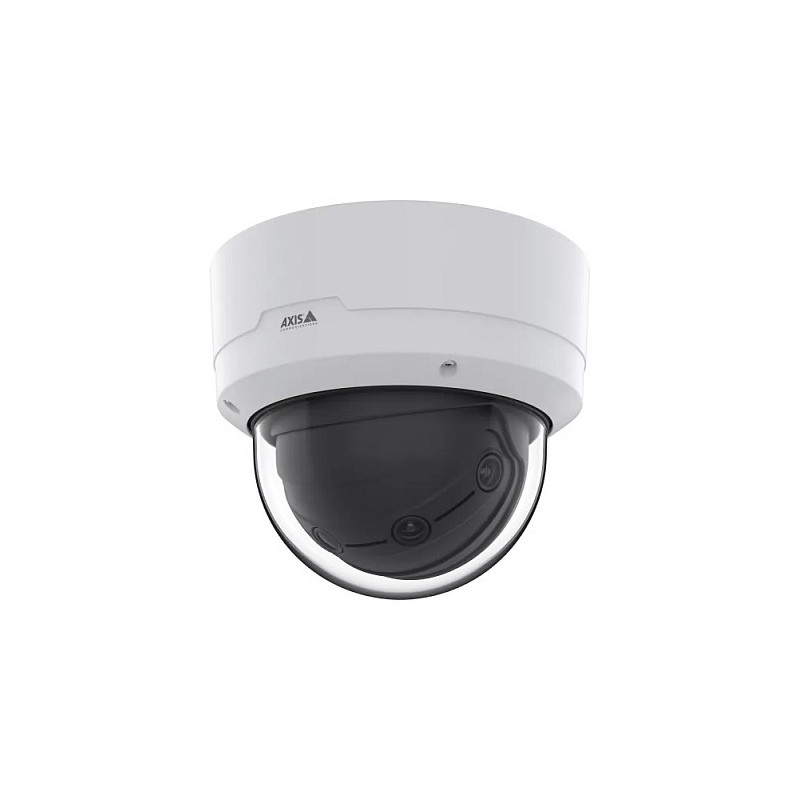

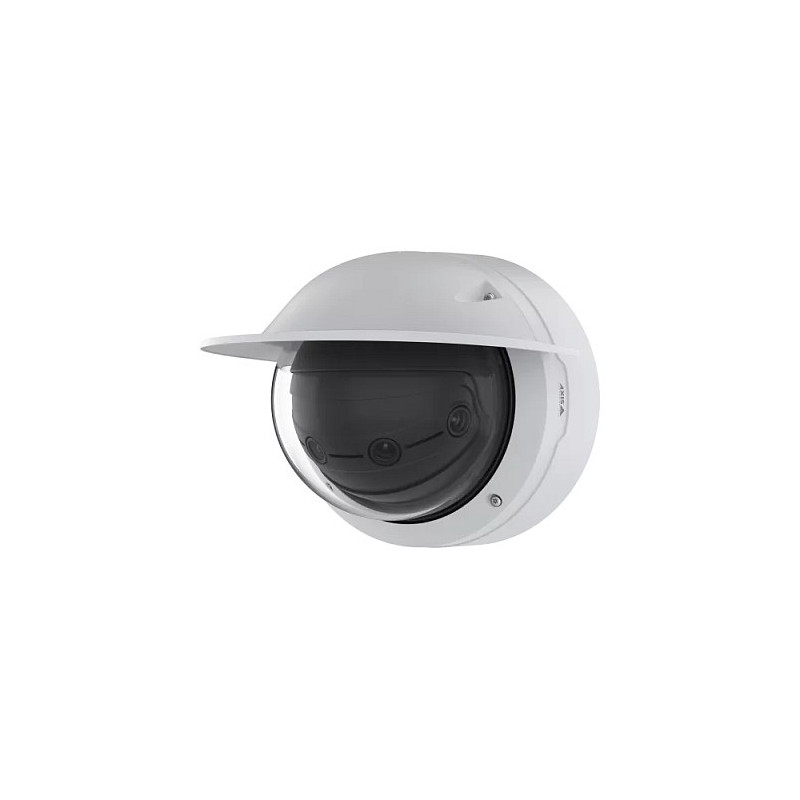

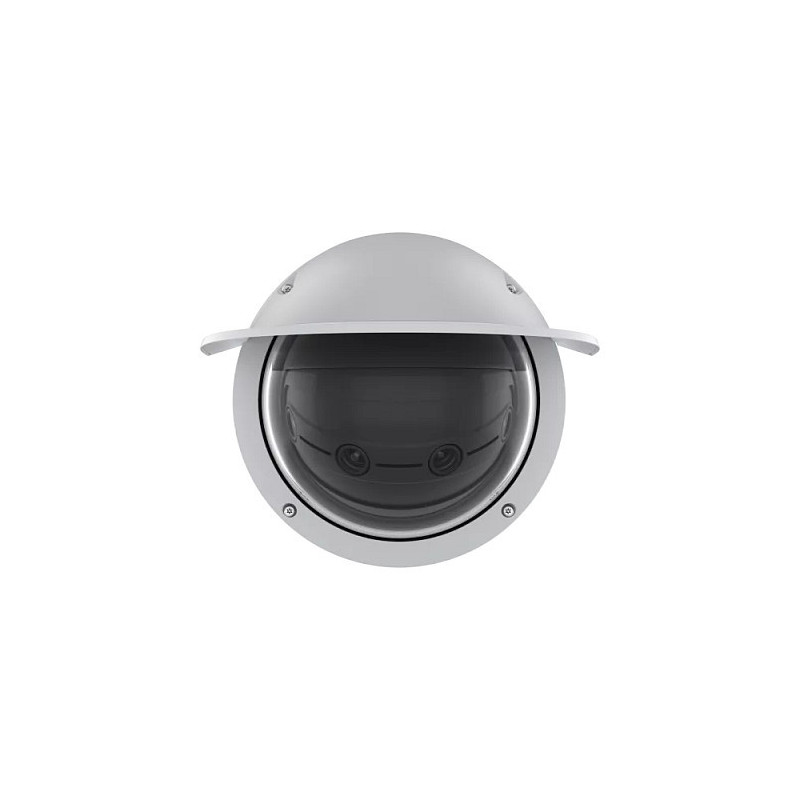

Axis Q4809-PVE

Axis Q4809-PVE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Detect distance: 130 m, Observe distance: 51.6 m, Recognize distance: 26 m
This multisensor camera offers 26 MP at 30 fps to deliver images with high pixel density—perfect when you want to see all the details. Plus, a deep learning processing unit enables the use of advanced analytics.
Ultra clear overviews in great detail
With up to 10K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage, and 45° vertical coverage for great details with high pixel density. With Axis Forensic WDR, it captures high-quality images even when there's both dark and light areas in the scene. Thanks to lossless zoom, it's possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator's viewing experience will be more natural due to the straightened horizon in the image.
Cost-effective and flexible
AXIS Q4809-PVE offers you the benefits of four cameras while paying for just one. That means there's one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options - on walls, ceilings, or in corridors as flush or pendant.
Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.03 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 45°
Tilt angle range: 20 - 80°
Pan range: -176 - 176°
Camera pixel size: 1.55 µm
Camera shutter speed: 1/100000 - 1/2 s

Image sensor

Number of sensors: 4
Optical sensor size: 25.4 / 2.3 mm (1 / 2.3")
Sensor type: CMOS

Lens system

Detect distance: 130 m
Observe distance: 51.6 m
Recognize distance: 26 m
Identify distance: 13 m
Minimum aperture number: 1.7
Fixed focal length: 5 mm

Night vision

Night vision: Yes

Video

Maximum resolution: 10240 x 2560 pixels
Total megapixels: 12 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 8192 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: EAP-TLS, PEAP, MSCHAPv2, EAP

Management features

Cloud-managed: Yes

Power

Power source type: PoE
Power consumption (max): 19.1 W
Power consumption (Power over Ethernet (PoE)): 9.74 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 195 mm
Diameter: 22.8 cm
Weight: 3.32 kg

Packaging content

Number of cameras: 1
