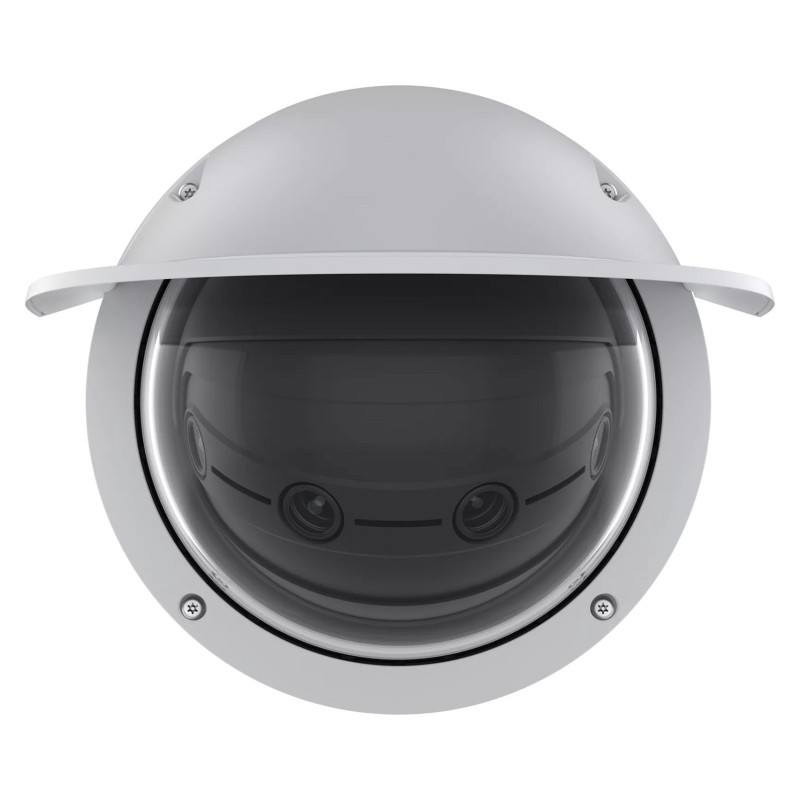

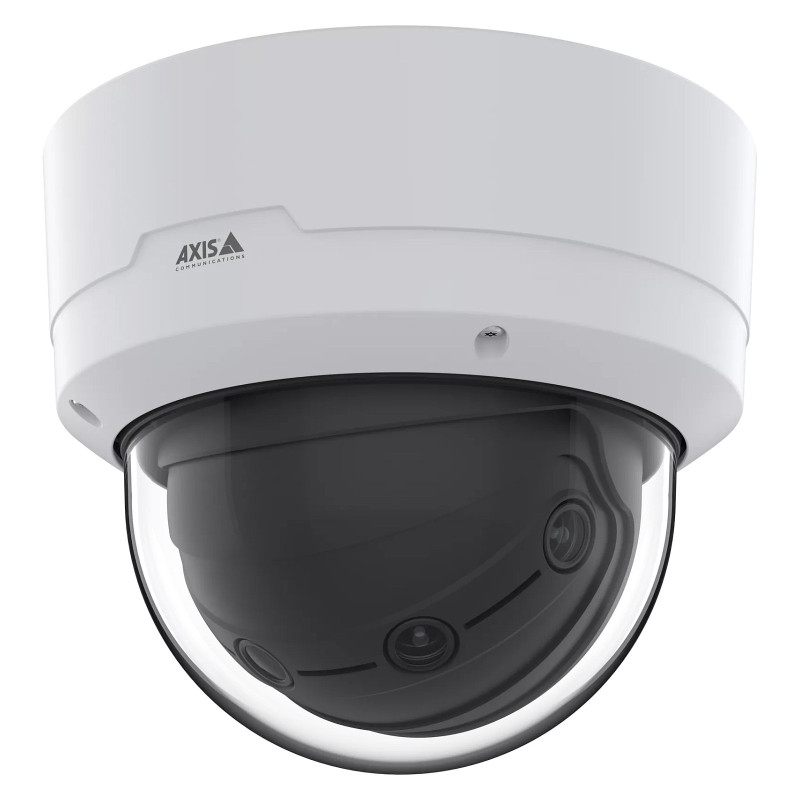

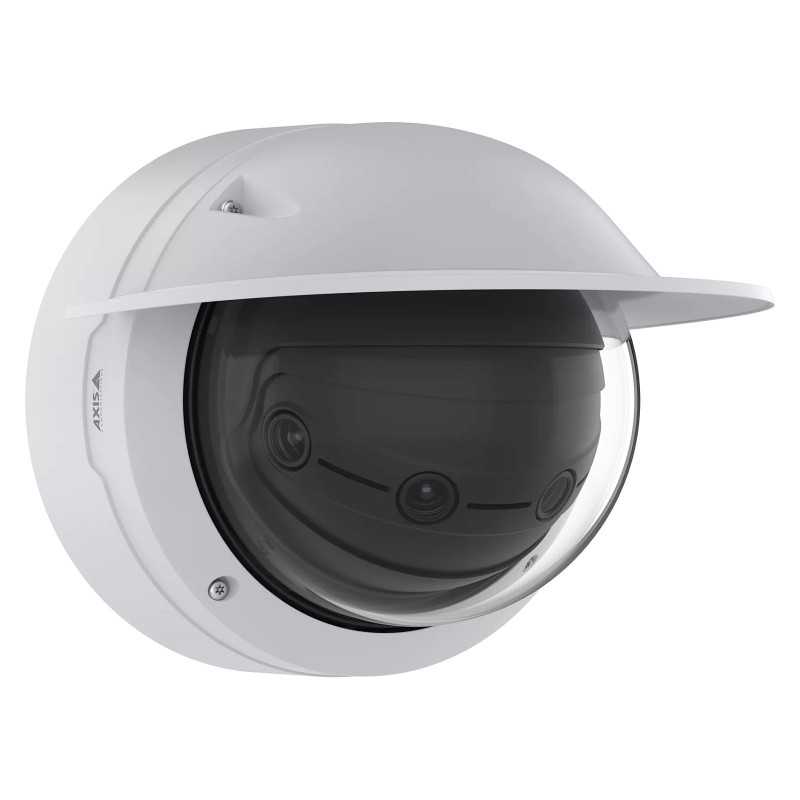

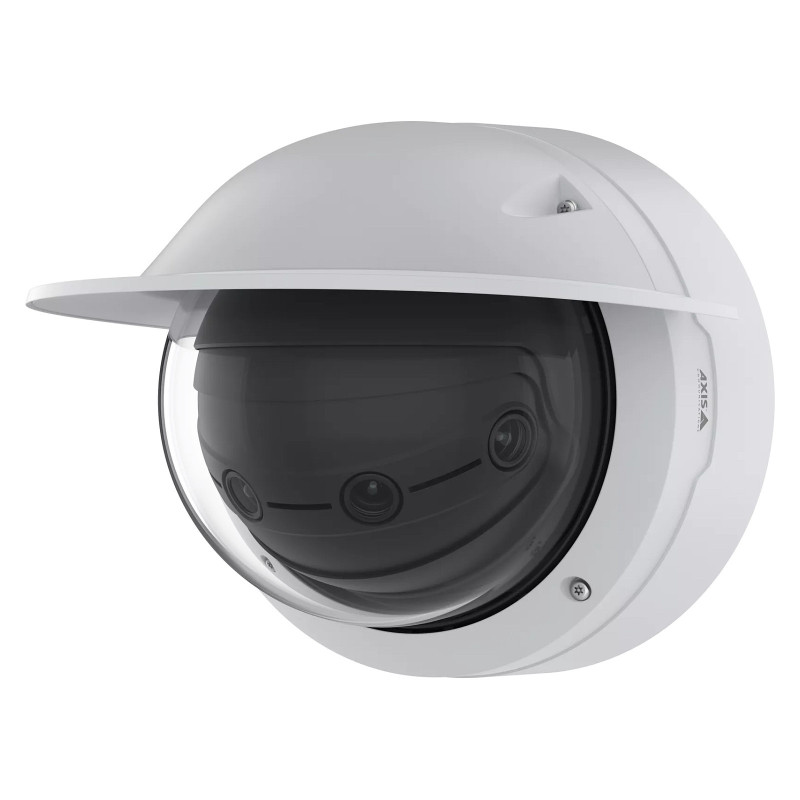

Axis Q3839-PVE

Axis Q3839-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
This multisensor camera offers 29 MP at 30 fps to deliver ultra-high overviews with no blind spots - perfect when you don't want to miss a thing. Plus, a deep learning processing unit enables the use of advanced analytics.
Ultra clear overview with no blind spots
With up to 8K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. With Axis Forensic WDR, it captures high-quality images even when there's both dark and light areas in the scene. Thanks to lossless zoom, it's possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator's viewing experience will be more natural due to the straightened horizon in the image.
Cost-effective and flexible
AXIS Q3839-PVE offers you the benefits of four cameras while paying for just one. That means there's one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options - on walls, ceilings, or in corridors as flush or pendant.
Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Processor model: ARTPEC-8
Built-in processor: Yes
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Wall/Pole
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.03 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 90°
Tilt angle range: 30 - 88°
Pan range: -176 - 176°
Camera pixel size: 2 µm
Camera shutter speed: 1/8500 - 1/5 s

Image sensor

Number of sensors: 4
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Zoom capability: Yes
Detect distance: 88.3 m
Observe distance: 35 m
Recognize distance: 17.7 m
Lens diameter: 4.6 mm
Fixed focus: Yes
Maximum aperture number: 1.8
Identify distance: 8.8 m

Night vision

Night vision: Yes
LED type: IR

Video

Maximum resolution: 7552 x 3776 pixels
Total megapixels: 29 MP
Video compression formats: H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness, White balance
Text caption overlay: Yes

Audio

Audio system: 1-way

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Video motion detection: Yes
Active tampering alarm: Yes
Network access storage (NAS): Yes

Management features

Cloud-managed: Yes

Power

Power source type: DC, PoE
Power consumption (typical): 9.74 W
Power consumption (max): 19.1 W
DC output voltage: 12
DC output current: 0.05 A

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 3.32 kg

Packaging content

Number of cameras: 1
Mounting kit: Yes
Drilling template included: Yes
Manual: Yes
