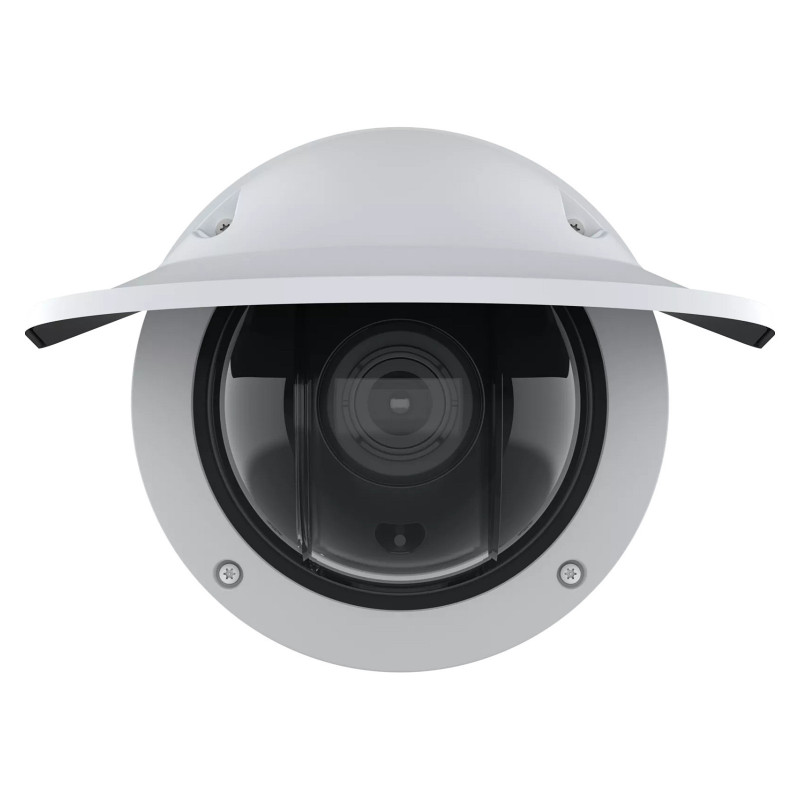

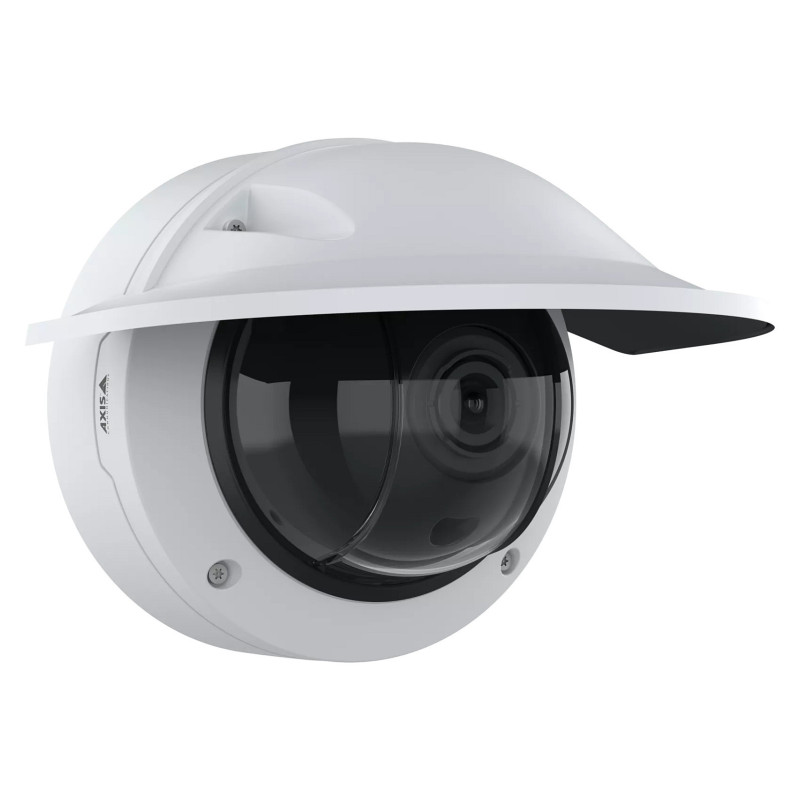

Axis Q3558-LVE

Axis Q3558-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 104 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m

Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. Furthermore, AXIS Audio Analytics can detect critical sounds, adding an extra layer of security.

Outstanding image quality
AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What's more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected.

Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What's more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Tour recording
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARTPEC-9
Feature: Built-in processor
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling/Wall/Pole
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP6K9K
IK code: IK10
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.007 lx
Angle of rotation: 180°
Lens viewing angle, horizontal: 104 - 50°
Lens viewing angle, vertical: 56 - 28°
Tilt angle range: -42 - 80°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/67500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 2x
Focal length range: 6.3 - 13 mm
Feature: Auto focus
Maximum aperture number: 2.9
Minimum aperture number: 1.6
Detect distance (wide): 88 m
Detect distance (tele): 178 m
Observe distance (wide): 35 m
Observe distance (tele): 71 m
Recognize distance (wide): 18 m
Recognize distance (tele): 36 m
Identify distance (wide): 9 m
Identify distance (tele): 18 m

Night vision

Feature: Night vision
Night vision distance: 60 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: AV1, H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 60 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness, White balance
Feature: Text caption overlay
Feature: Image stabilizer

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Video motion detection
Feature: Pixel counter
Feature: Network access storage (NAS)

Management features

Feature: Cloud-managed

Power

Power source type: DC, PoE
Power consumption (typical): 6.9 W
Power consumption (max): 25.5 W
DC output voltage: 8, 9, 10, 12, 15, 16, 24, 28

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Weight: 2.31 kg

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
