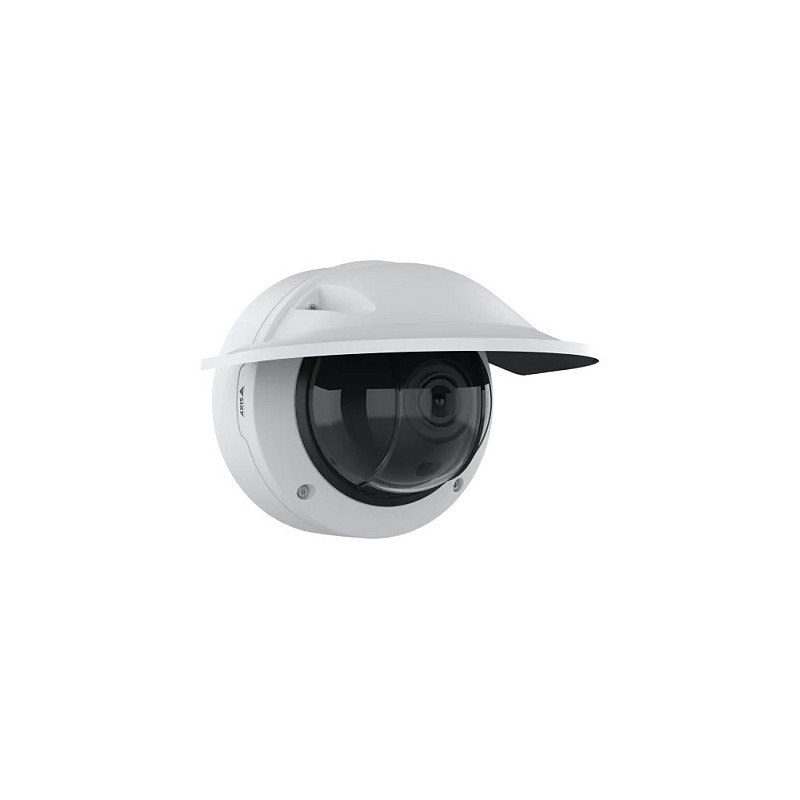

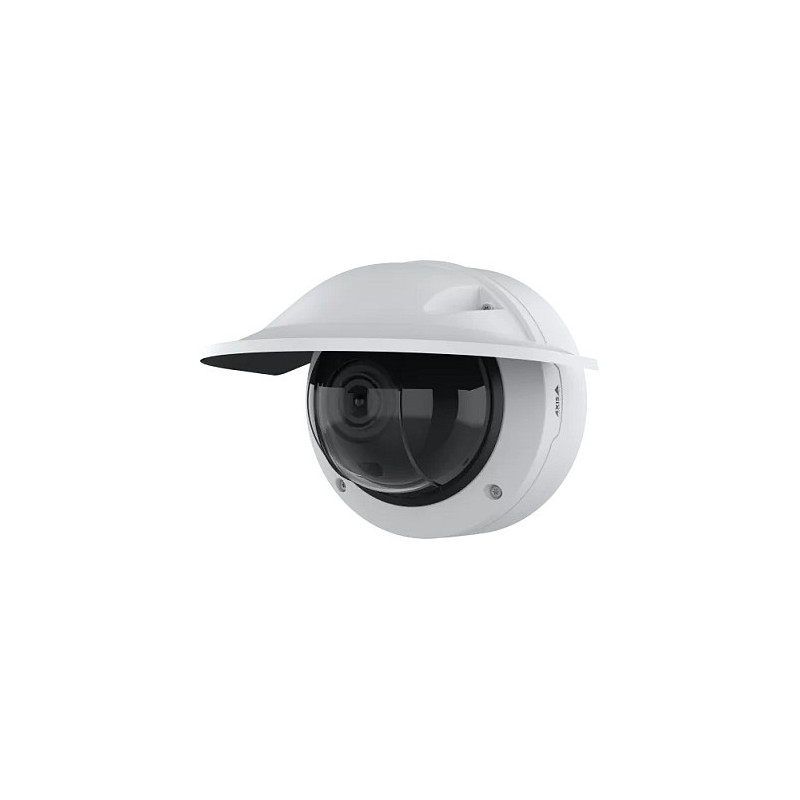

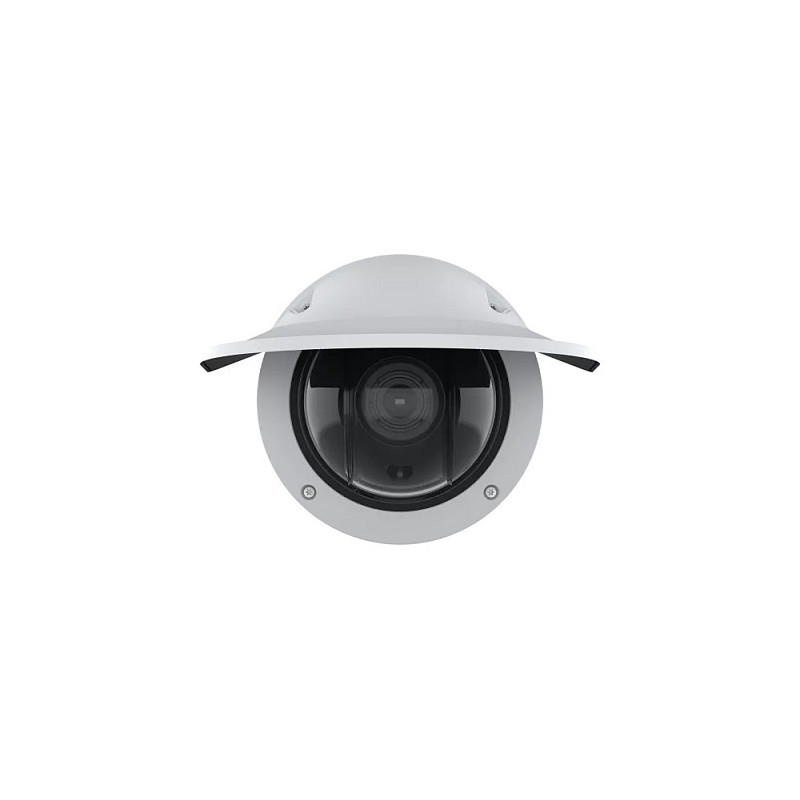

Axis Q3548-LVE

Axis Q3548-LVE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 104°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m
Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Outstanding image quality
AXIS Q3548-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What's more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What's more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Plastic
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP66, IP6K9K
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.04 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 104°
Lens viewing angle, vertical: 56.7°
Tilt angle range: -42 - 80°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/67500- 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 2x
Number of lenses: 1
Focal length range: 6.3 - 13 mm
Auto focus: Yes
Maximum aperture number: 2.9
Minimum aperture number: 1.6
Detect distance (wide): 88 m
Detect distance (tele): 178 m
Observe distance (wide): 35 m
Observe distance (tele): 71 m
Recognize distance (wide): 18 m
Recognize distance (tele): 36 m
Identify distance (wide): 9 m
Identify distance (tele): 18 m
Closest focusing distance: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 60 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1280 x 800 (WXGA), 2688 x 1512, 3840 x 2160
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 4000 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes

Security

Active tampering alarm: Yes
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type: E-mail
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object
Human and vehicle targets classification: Yes

Power

Power source type: PoE
Power consumption (typical): 6.3 W
Power consumption (max): 25.5 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 239 mm
Depth: 211 mm
Height: 183 mm
Weight: 2.31 kg

Sustainability

Compliance certificates: REACH, RoHS, Trade Agreements Act (TAA)

Packaging content

Number of cameras: 1
Sun shield included: Yes
Manual: Yes

Other features

Doesn't contain: CFR, PVC/BFR
