Axis Q3546-LVE

Axis Q3546-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.2x, Lens diameter: 1 cm, Focal length range: 4.7 - 10 mm

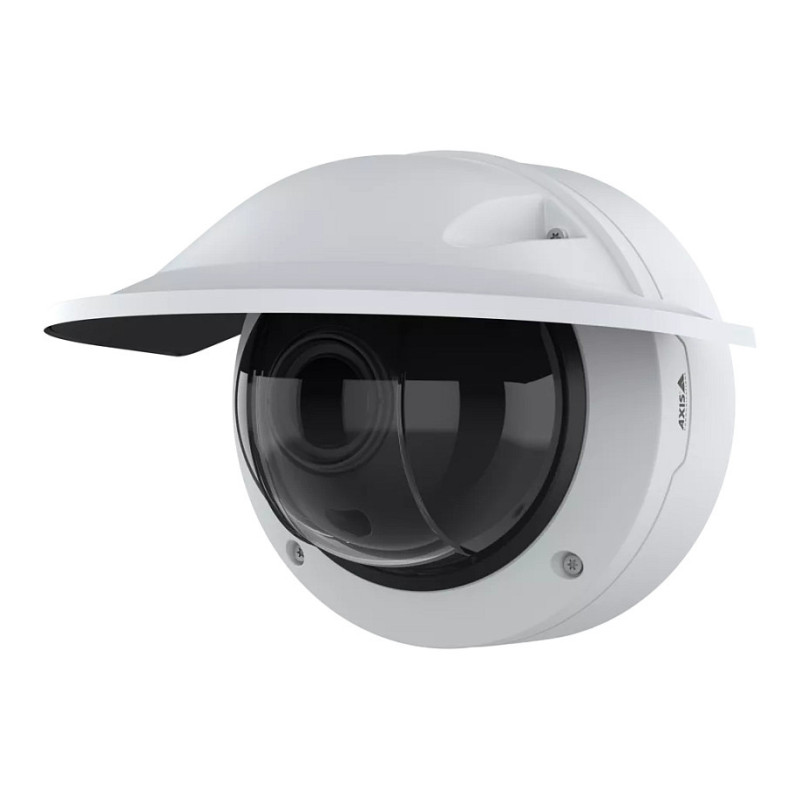

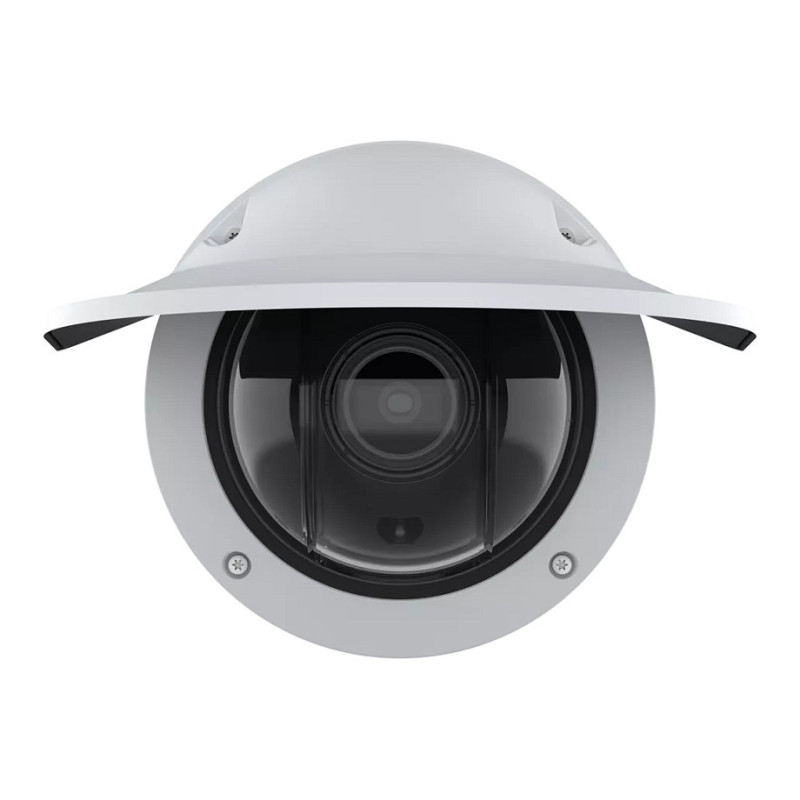

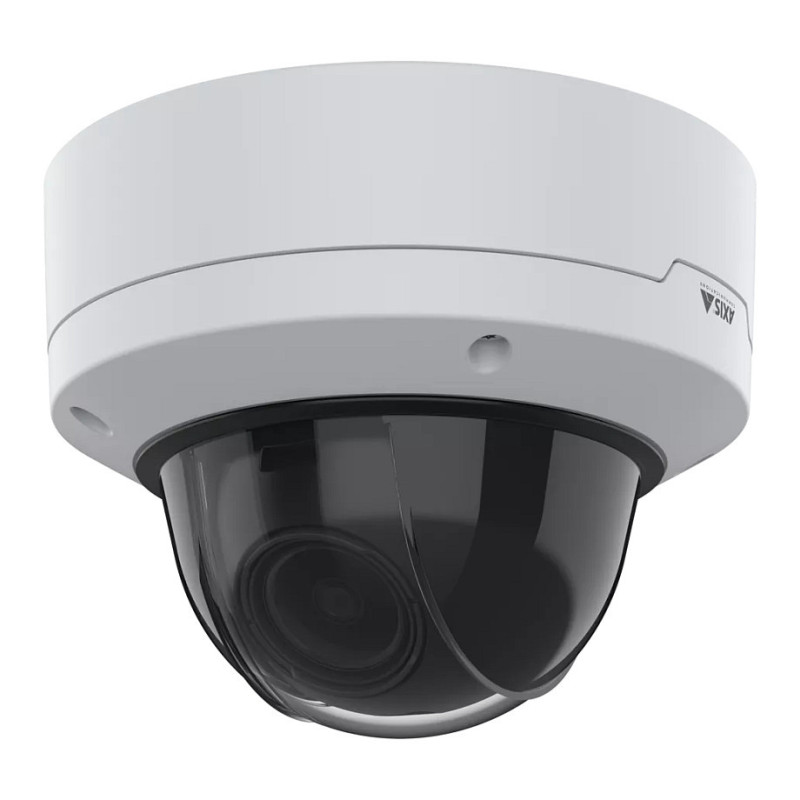

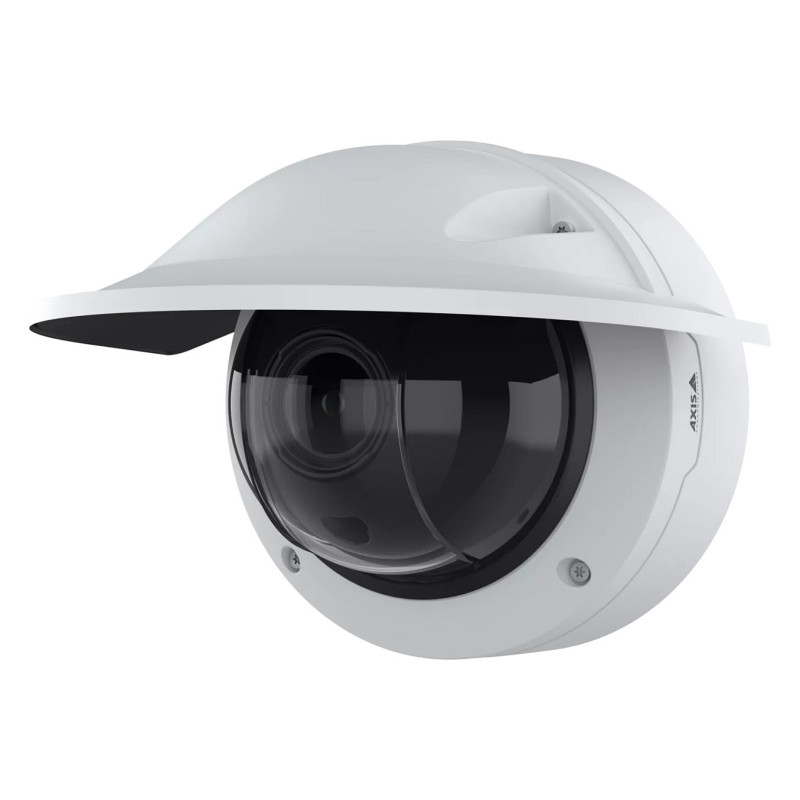

AXIS Q3546-LVE Dome Camera

Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.

Outstanding image quality

AXIS Q3546-LVE offers outstanding image quality and forensic details in 4 MP resolution (up to 120 fps), even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome for clear, sharp images in rain and snow. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. And electronic image stabilization keeps the image steady when the camera is subject to vibrations. It's available with either a high-performing and light-sensitive 10 mm lens or a powerful and flexible 51 mm tele lens for surveillance from a distance.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What's more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected.

Robust with strong security

Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -55°C to 55 °C (-122 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What's more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Auto-tracking
Feature: Tour recording
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Certification: UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Plastic
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP66, IP6K9K
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.01 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 101°
Lens viewing angle, vertical: 54°
Tilt angle range: -42 - 80°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/49500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 2.2x
Number of lenses: 1
Lens diameter: 1 cm
Focal length range: 4.7 - 10 mm
Feature: Auto focus
Maximum aperture number: 1.2
Minimum aperture number: 1.1
Detect distance (wide): 65 m
Detect distance (tele): 141 m
Observe distance (wide): 26 m
Observe distance (tele): 56 m
Recognize distance (wide): 13 m
Recognize distance (tele): 28 m
Identify distance (wide): 6.4 m
Identify distance (tele): 14 m
Closest focusing distance: 0.5 m

Night vision

Feature: Night vision
Night vision distance: 60 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1280 x 800 (WXGA), 2688 x 1512
Frame rate: 120 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Feature: Audio system full duplex
Audio formats supported: AAC-LC, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR): 55 dB
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: Terminal block port

Security

Feature: Active tampering alarm
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type: E-mail
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object
Feature: Human and vehicle targets classification

Power

Power source type: PoE
Power consumption (typical): 6.3 W
Power consumption (max): 25.5 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 239 mm
Depth: 211 mm
Height: 183 mm
Weight: 2.36 kg

Sustainability

Compliance certificates: REACH, RoHS, Trade Agreements Act (TAA)

Packaging content

Number of cameras: 1
Feature: Sun shield included

Other features

Doesn't contain: CFR, PVC/BFR
