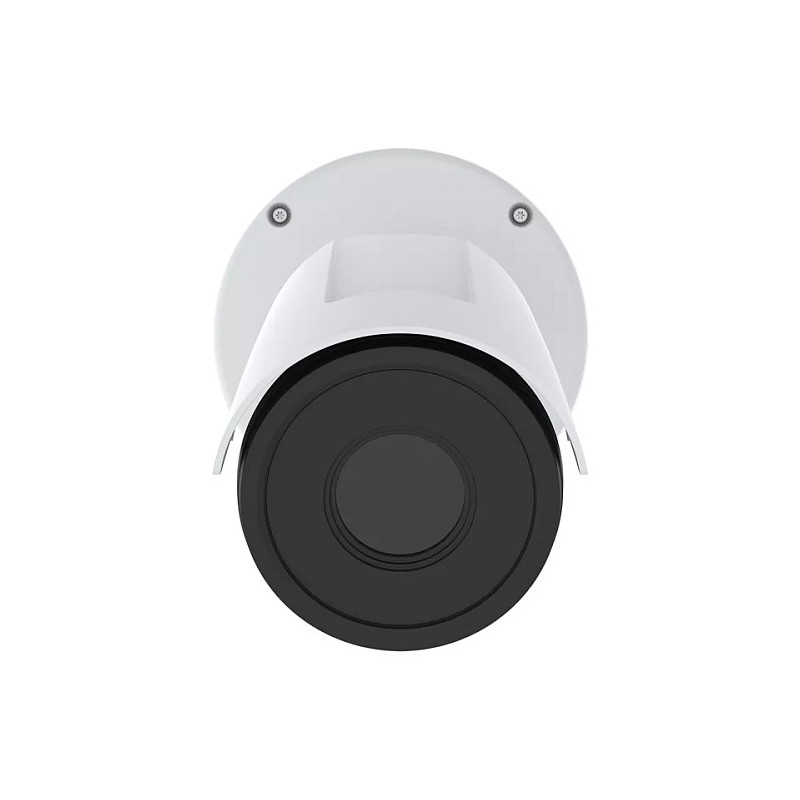

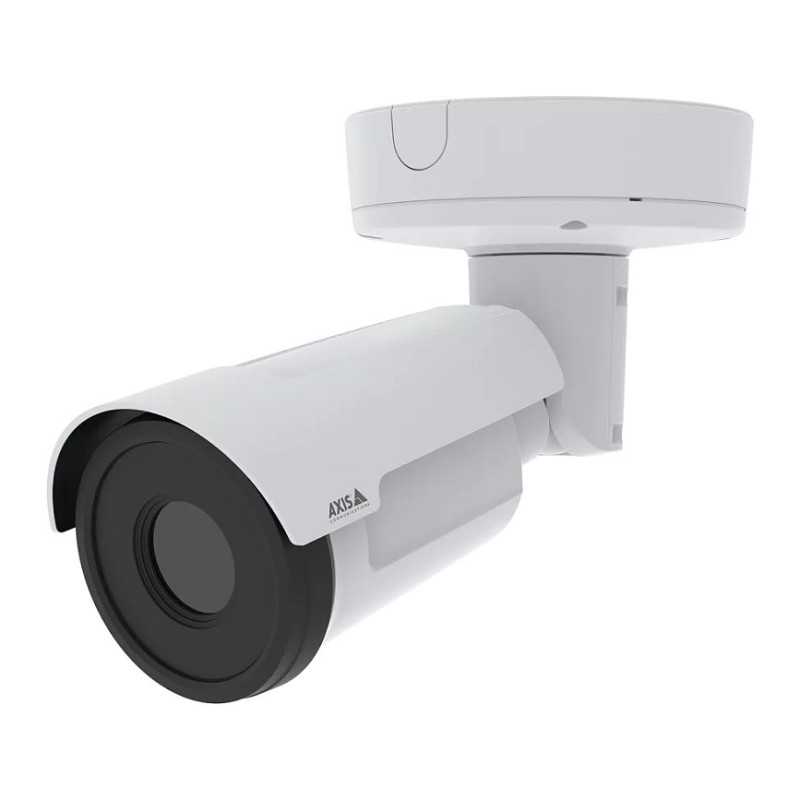

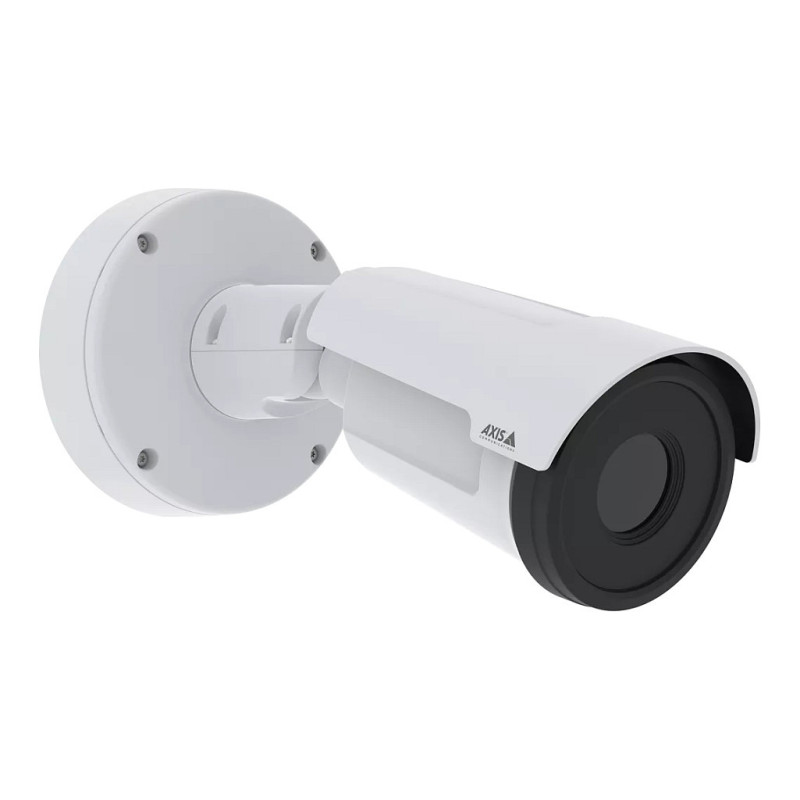

Axis Q1972-E

Axis Q1972-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 31°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 640 x 480 pixels. Lens diameter: 1.9 cm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm
Reliable detection and visual verification- always
Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn't impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn't deliver images that allow for identification, privacy is always guaranteed.
Powerful analytics platform
AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it's possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.
Secure, robust, and sustainable
This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it's impact- and weather-resistant. What's more, this robust, sustainable device offers a low carbon footprint. It's made from halogen-free materials and there's no need for lighting in dark scenes, ensuring lower system power consumption.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Preset points: Yes
Thermal sensitivity (NETD): 20 mK
Certification: CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10d, ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267

Design

Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10
Weatherproof: Yes

Camera

Lens viewing angle, horizontal: 31°
Camera pixel size: 17 µm

Image sensor

Number of sensors: 1
Effective sensor resolution (thermal module): 640 x 480 pixels
Sensor type: Microbolometer

Lens system

Number of lenses: 1
Lens diameter: 1.9 cm
Maximum aperture number: 1
Closest focusing distance: 8.5 m
Infrared spectral band: 8 - 14 µm

Video

Maximum resolution: 640 x 480 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate: 30 fps
Video streaming: Yes
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Sharpness
Flip mirror: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection: Yes
Sample rates: 8 - 48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
RS-422 ports: 1
RS-485 ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Video motion detection: Yes
Active tampering alarm: Yes
Security algorithms: 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP
Alert notification type: E-mail
Privacy protection: Yes
Pixel counter: Yes
Digest authentication: Yes

Power

Power source type: DC, PoE
Power consumption (typical): 5 W
Power consumption (max): 12.95 W
Power consumption (Power over Ethernet (PoE)): 12.95 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 132 mm
Depth: 264 mm
Height: 132 mm
Weight: 1.4 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: CFR, PVC/BFR
