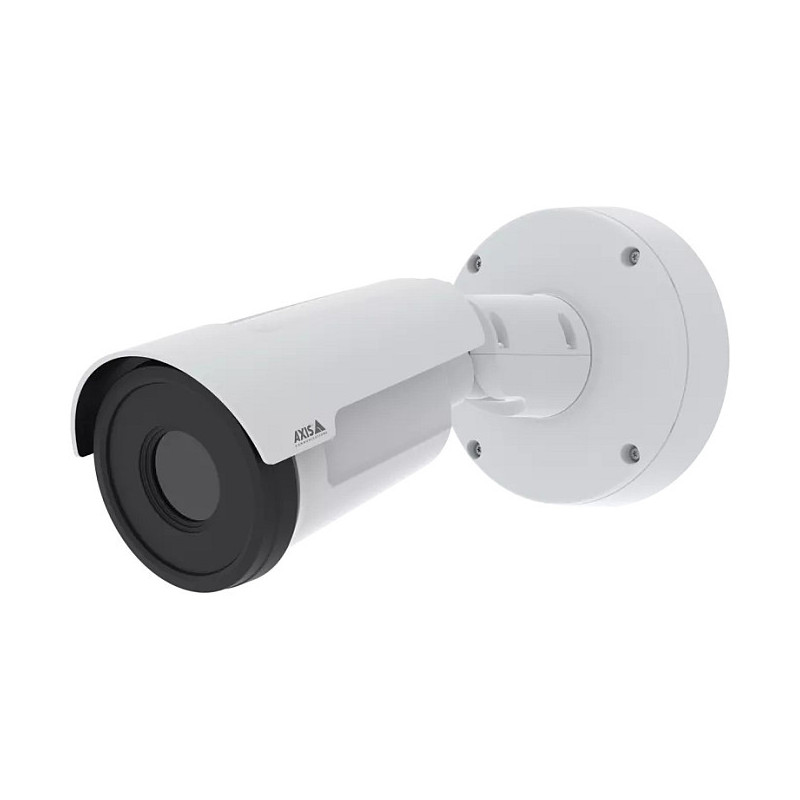

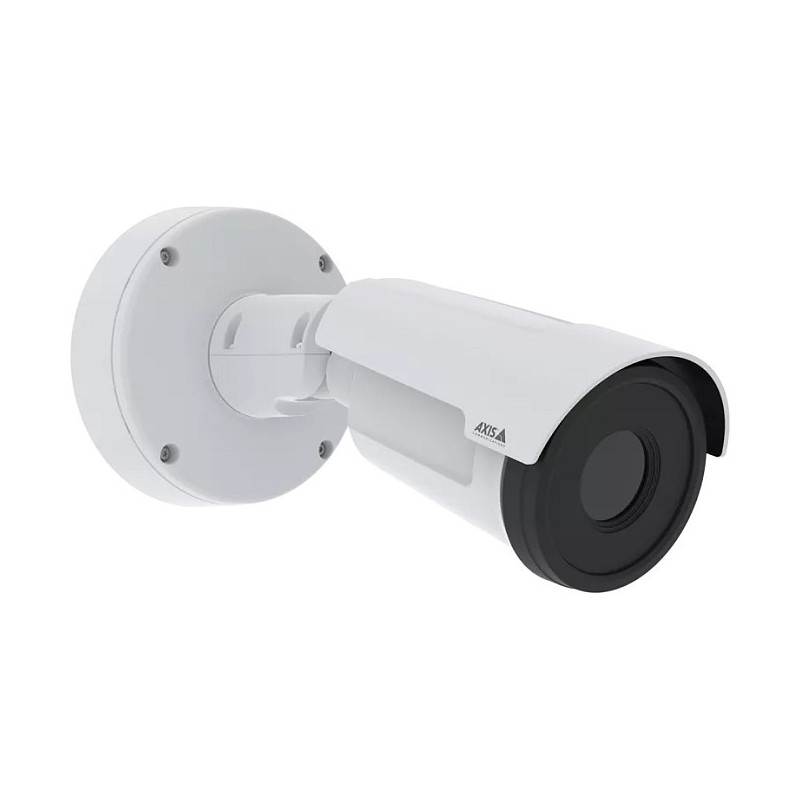

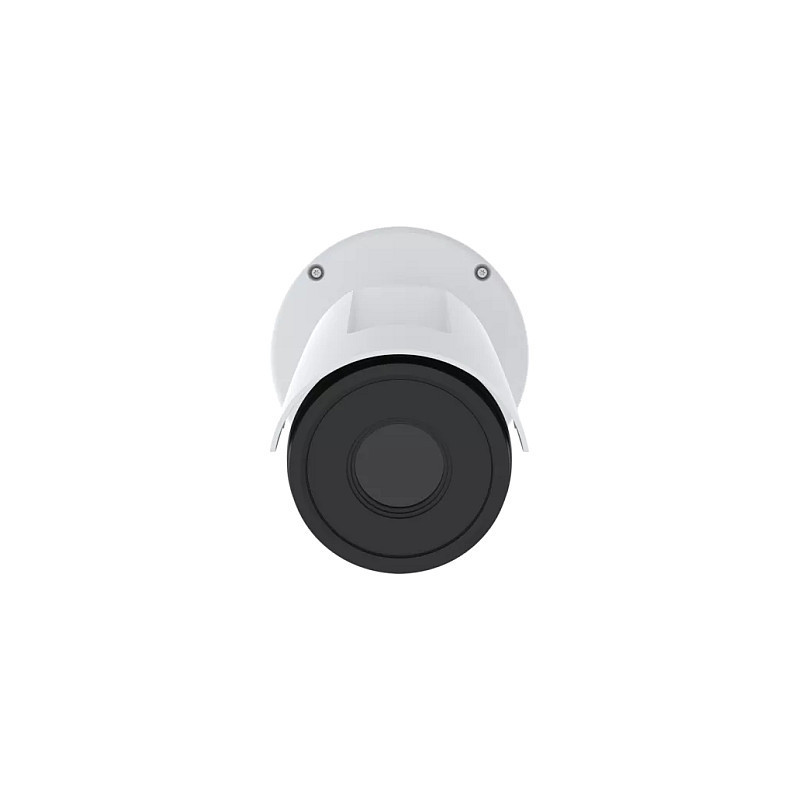

Axis Q1971-E

Axis Q1971-E. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 15°, Lens viewing angle, vertical: 11°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Lens diameter: 2.5 cm, Closest focusing distance: 18.2 m

Reliable detection and visual verification- always

Using thermal technology, AXIS Q1971-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn't impacted by weather or light conditions ensuring a lower false alarm rate. With five lens alternatives (7 mm, 13 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn't deliver images that allow for identification, privacy is always guaranteed.

Powerful analytics platform

AXIS Q1971-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it's possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.

Secure, robust, and sustainable

This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it's impact- and weather-resistant. What's more, this robust, sustainable device offers a low carbon footprint. It's made from halogen-free materials and there's no need for lighting in dark scenes, ensuring lower system power consumption.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Thermal module

Design

Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Lens viewing angle, horizontal: 15°
Lens viewing angle, vertical: 11°
Camera pixel size: 17 µm

Image sensor

Number of sensors: 1
Effective sensor resolution (thermal module): 384 x 288 pixels
Sensor type: Microbolometer

Lens system

Number of lenses: 1
Lens diameter: 2.5 cm
Maximum aperture number: 1
Closest focusing distance: 18.2 m

Video

Maximum resolution: 768 x 576 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Flip & mirror
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Feature: Audio system full duplex
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Security algorithms: EAP-TLS, HTTPS, MSCHAPv2
Alert notification type: E-mail
Feature: Privacy protection
Feature: Pixel counter
Feature: Digest authentication

Management features

Feature: Cloud-managed

Power

Power source type: DC, PoE
Power consumption (typical): 3.6 W
Power consumption (max): 12.95 W
Power consumption (Power over Ethernet (PoE)): 12.95 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 132 mm
Depth: 272 mm
Height: 132 mm
Weight: 1.4 kg

Packaging content

Number of cameras: 1

Other features

Doesn't contain: CFR, Halogen, PVC/BFR
