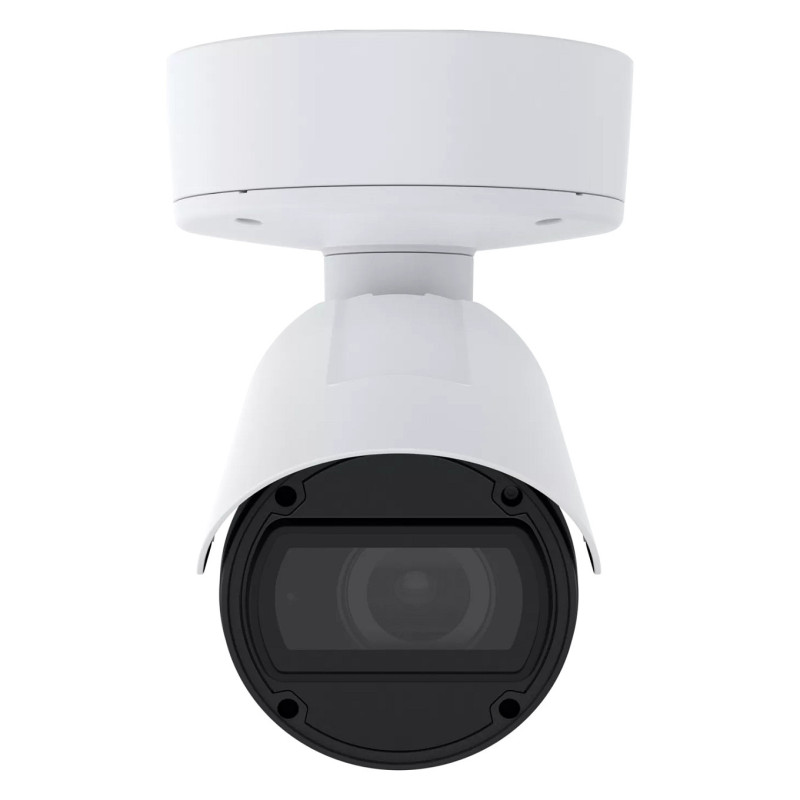

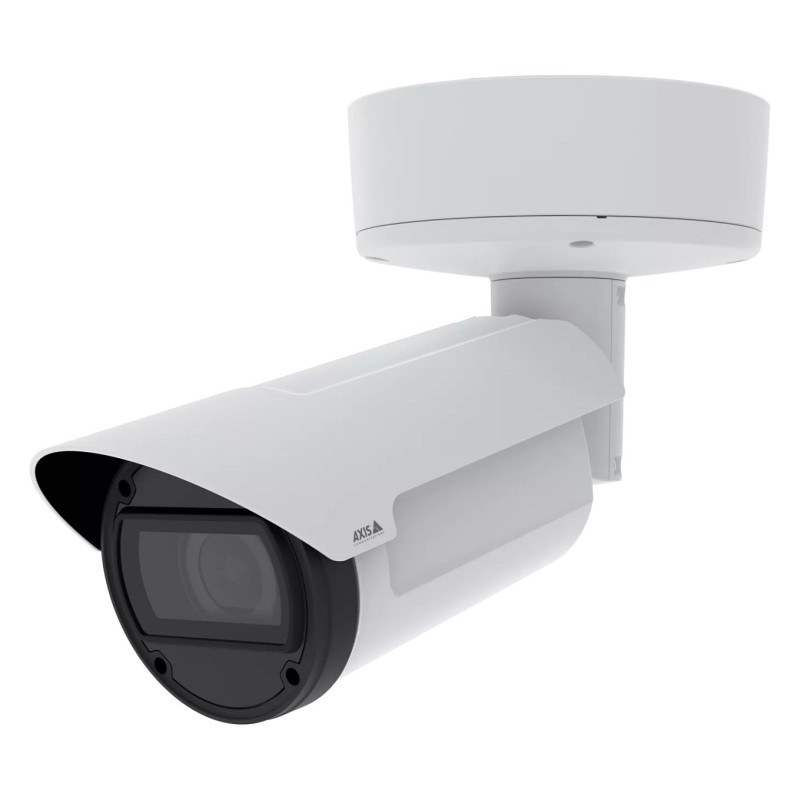

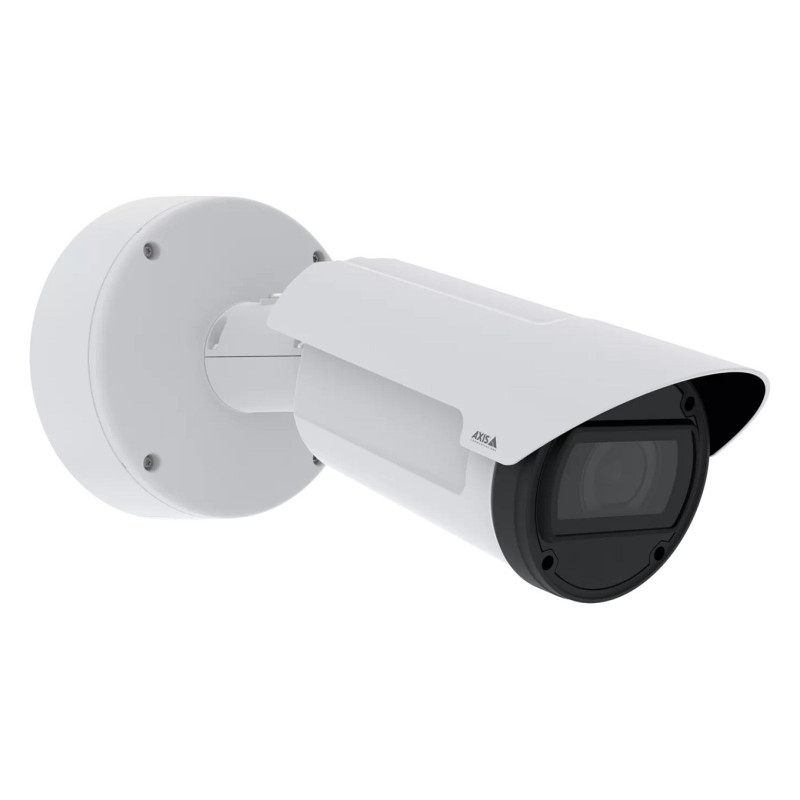

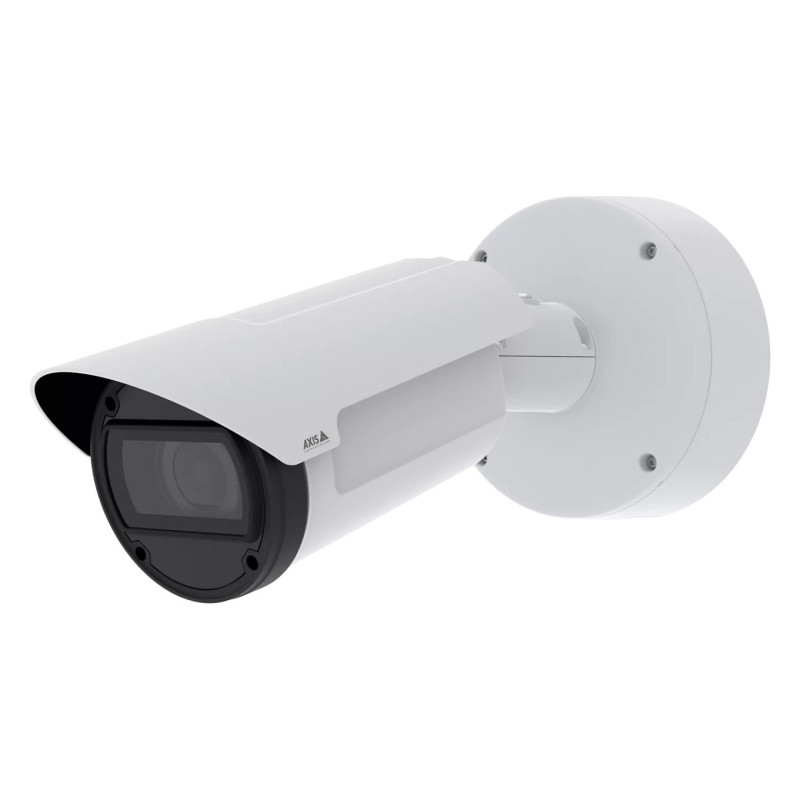

Axis Q1809-LE 150mm

Axis Q1809-LE 150mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Focal length range: 50 - 150 mm, Focus: Motorized, Detect distance (wide): 853.8 m

Ideal for long distance surveillance, this all-in-one, outdoor-ready bullet camera delivers superior image quality in 41 MP with high light sensitivity and extremely high pixel density.

See all the details
Built on a dual Axis system-on-chip, this device delivers extreme detail over great distances and excellent forensic value. It offers 41 MP at 15 fps or 8K at up to 30 fps. And a 4/3" image sensor ensures exceptional low-light performance. With a custom-made, tele Canon lens, it's perfect for long-distance surveillance and delivers extremely high pixel density. Electronic image stabilization (EIS) ensures smooth video in situations where a camera is subject to vibrations, for instance, at sports arenas or windy harbors. Furthermore, Axis Zipstream reduces bandwidth and storage requirements without compromising image quality.

All-in-one and ready for everything
This powerful camera offers everything you need and is out-of-the-box ready to use. Enclosed in a robust aluminum casing, it also includes a mounting arm for easy installation. And a spacious back box ensures secure cable management. It features a custom-made, tele (50 - 150 mm) Canon lens and 21°-7° horizontal field of view. With 3x zoom, it's ideal for identification purposes. In addition, thanks to PoE out, you can connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation.

Secure and robust surveillance
AXIS Q1809-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. This robust, weather-protected, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and features a IK08-rated impact-resistant glass front window. It has an operating temperature range from -40 °C to 55 °C (-40 °F to 131 °F). Furthermore, surge protection minimizes damage in the case of a power surge.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: CSA, UL/cUL, CE, EAC, VCCI, RCM

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium, Glass
Protection features: Impact resistant
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.04 lx
Angle of rotation: 270°
Lens viewing angle, horizontal: 21 - 7°
Lens viewing angle, vertical: 12 - 4°
Tilt angle range: 0 - 90°
Pan range: -180 - 180°
Camera pixel size: 2.315 µm
Camera shutter speed: 1/15500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 101.6 / 3 mm (4 / 3")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 50 - 150 mm
Focus: Motorized
Maximum aperture number: 4
Detect distance (wide): 853.8 m
Detect distance (tele): 2551.6 m
Observe distance (wide): 338.8 m
Observe distance (tele): 1012.6 m
Recognize distance (wide): 170.8 m
Recognize distance (tele): 510.2 m
Identify distance (wide): 85.4 m
Identify distance (tele): 255.2 m
Closest focusing distance: 5 m

Night vision

Feature: Night vision
LED type: IR
Infra-red wavelength: 900 nm

Video

Maximum resolution: 7680 x 4320 pixels
Total megapixels: 41 MP
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video compression formats: H.264, H.265
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 800, 3840 x 2160
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Mirror, Sharpness
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1AE, IEEE 802.1x
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
ROM capacity: 4096 MB

Ports & interfaces

Feature: Microphone in
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Password protection
Security algorithms: EAP-TLS, HTTPS
Alert notification type: E-mail
Feature: Pixel counter
Feature: Digest authentication

Management features

Feature: Cloud-managed
Feature: Remotely operated

Power

Power source type: DC, PoE
Power consumption (typical): 17.6 W
Power consumption (max): 35 W
Power consumption (Power over Ethernet (PoE)): 18.9 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Depth: 411 mm
Height: 183 mm
Diameter: 18.3 cm
Weight: 3.2 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
