Axis Q1808-LE 150 mm

Axis Q1808-LE 150 mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.02 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Optical zoom: 3x, Focal length range: 50 - 150 mm, Focus: Motorized

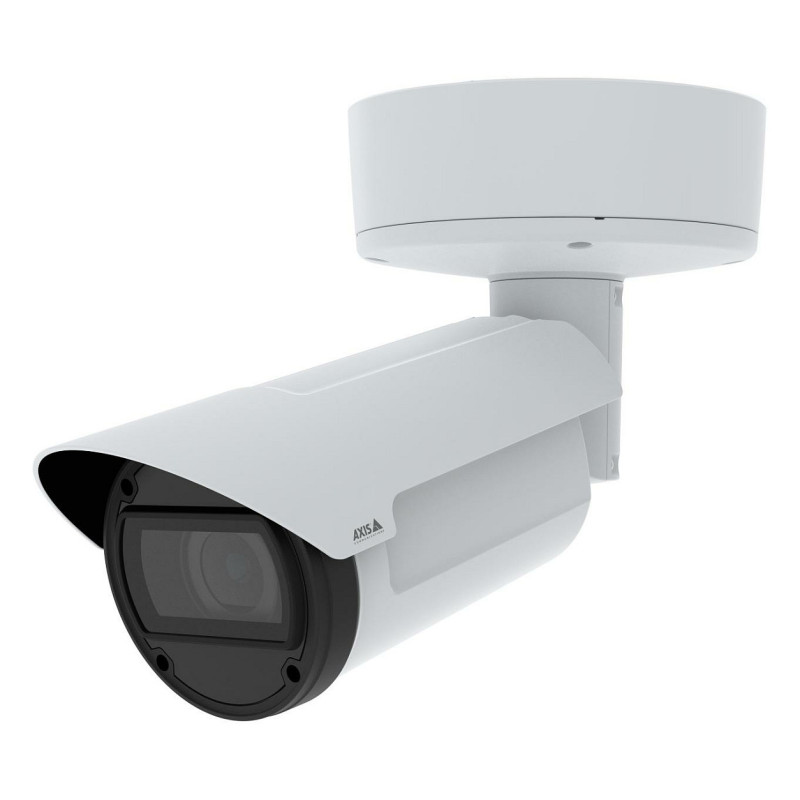

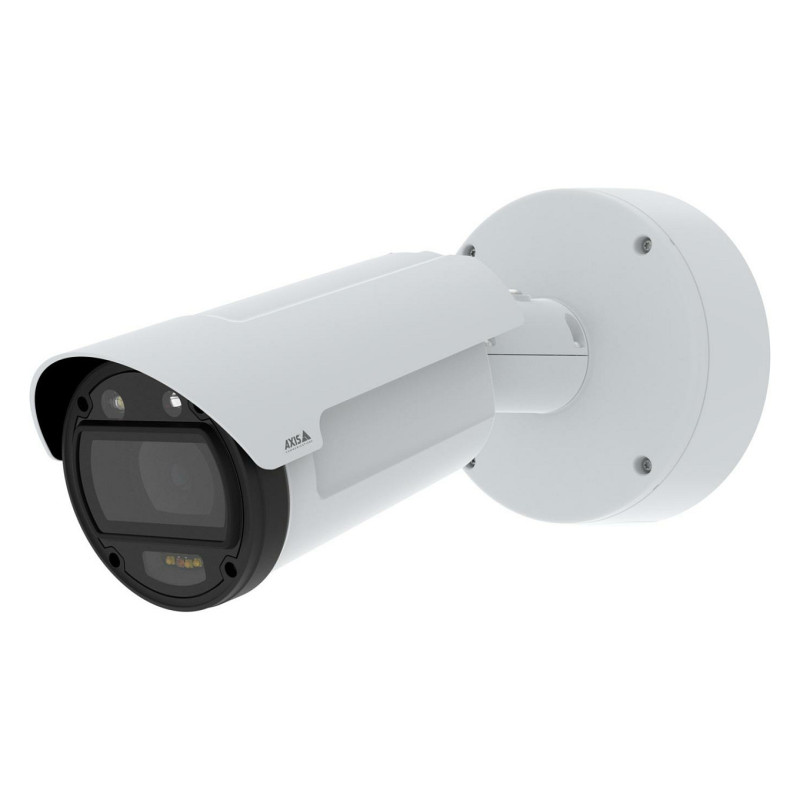

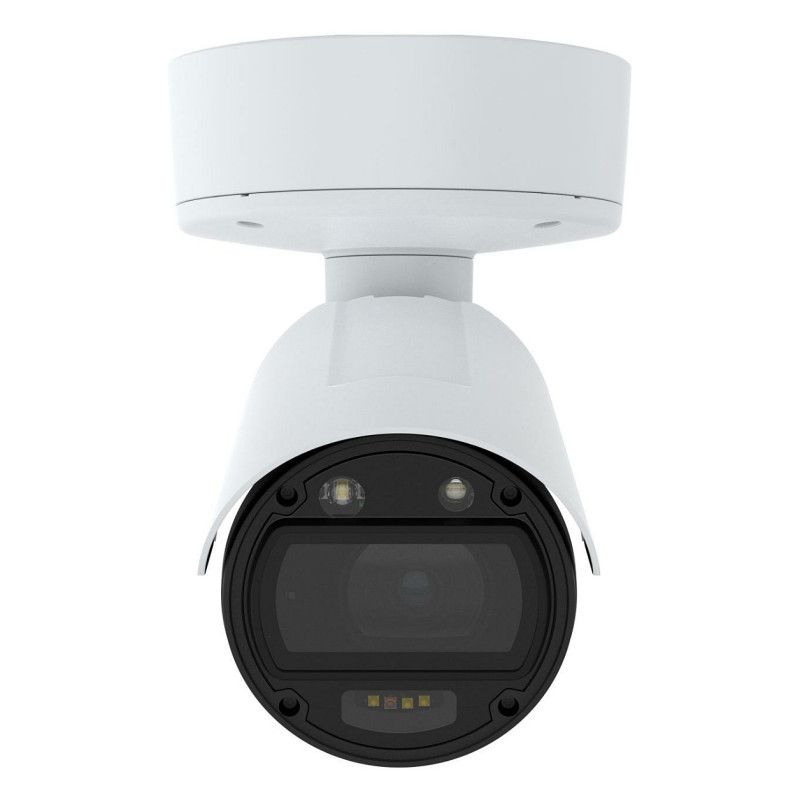

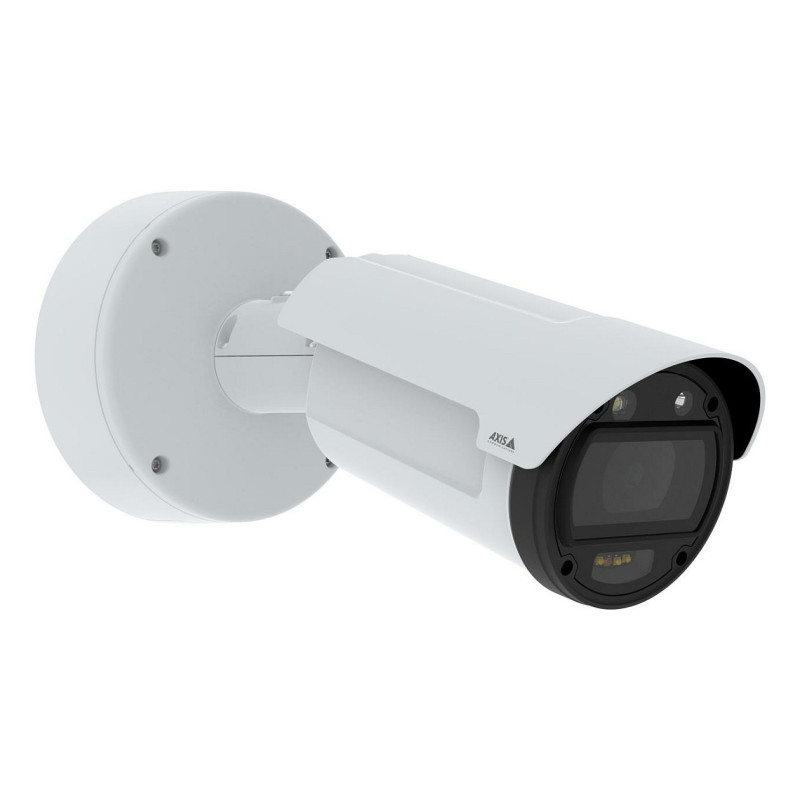

AXIS Q1808-LE Bullet Camera
This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It's available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.
Excellent forensic details and powerful performance
Featuring a 4/3" image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, a deep learning processing unit (DLPU) lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Great coverage in wide, open areas
With a wide (12 - 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.
Excellent details at great distances
With a tele (50 - 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it's ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 150 m (500 ft) without the need for extra lighting.
Enjoy big savings
Not only does this powerful camera deliver outstanding 4K details, but thanks to Zipstream H.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you'll enjoy the optimal level of Zipstream for your video storage - regardless of your VMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode reduces power demands by as much as 50% in certain temperature ranges.
Reliable and robust
AXIS Q1808-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With supervised inputs, you'll be notified if the connection is cut. Plus, it can be powered with DC power and PoE, and even if there's a power outage, redundant DC power ensures a reliable power supply to safeguard your data. This robust, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Plus, with premium Q-line functionality, it guarantees always-great image quality.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Design

Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium, Glass
Protection features: Impact resistant
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.02 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 21 - 7°
Lens viewing angle, vertical: 12 - 4°
Tilt angle range: 0 - 90°
Pan range: -180 - 180°
Camera pixel size: 4.63 µm
Camera shutter speed: 1/45500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 101.6 / 3 mm (4 / 3")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 3x
Number of lenses: 1
Focal length range: 50 - 150 mm
Focus: Motorized
Maximum aperture number: 4
Detect distance (wide): 426.9 m
Detect distance (tele): 1275.8 m
Observe distance (wide): 169.4 m
Observe distance (tele): 506.3 m
Recognize distance (wide): 85.4 m
Recognize distance (tele): 255.1 m
Identify distance (wide): 42.7 m
Identify distance (tele): 127.6 m
Closest focusing distance: 5 m

Night vision

Night vision: Yes
Night vision distance: 120 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3712 x 2784 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 800, 3840 x 2160
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
ROM capacity: 2048 MB

Ports interfaces

Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Password protection: Yes
Security algorithms: SNMP
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter: Yes
Digest authentication: Yes

Management features

Remotely operated: Yes

Power

Power source type: PoE
Power consumption (typical): 14.9 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 3.2 kg

Features

License plate recognition: Yes

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Manual: Yes

Other features

Doesn't contain: PVC/BFR
