Axis Q1806-LE

Axis Q1806-LE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.02 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 60 - 2.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 32x, Focal length range: 4.3 - 137 mm, Detect distance (wide): 87.7 m

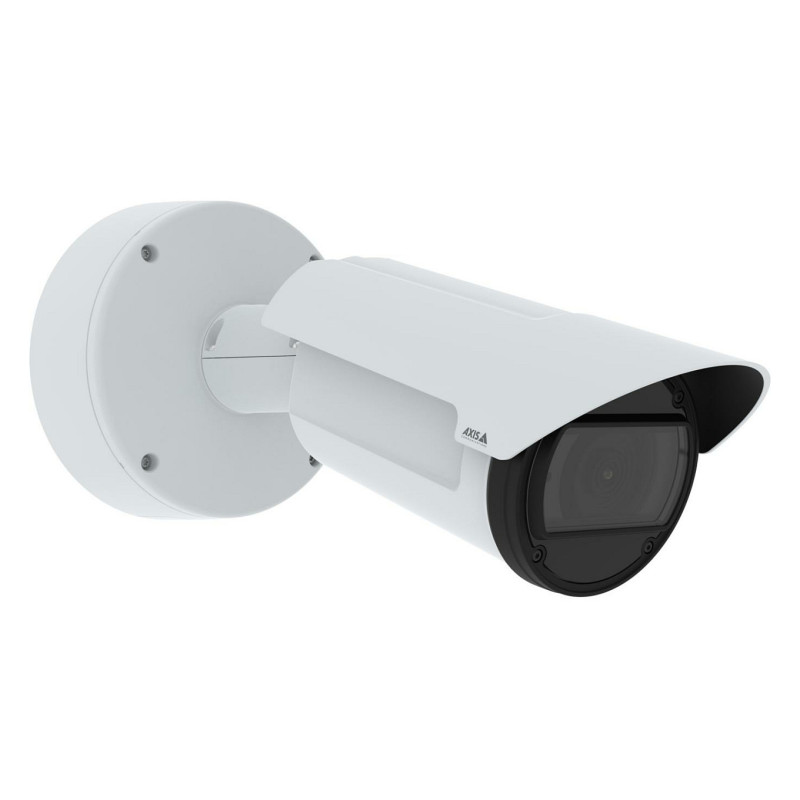

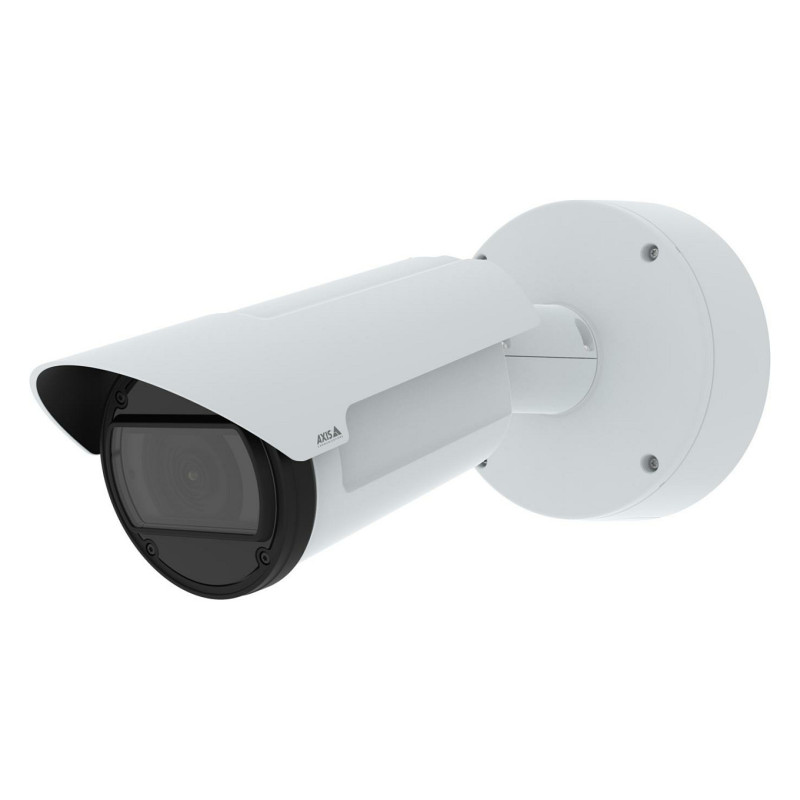

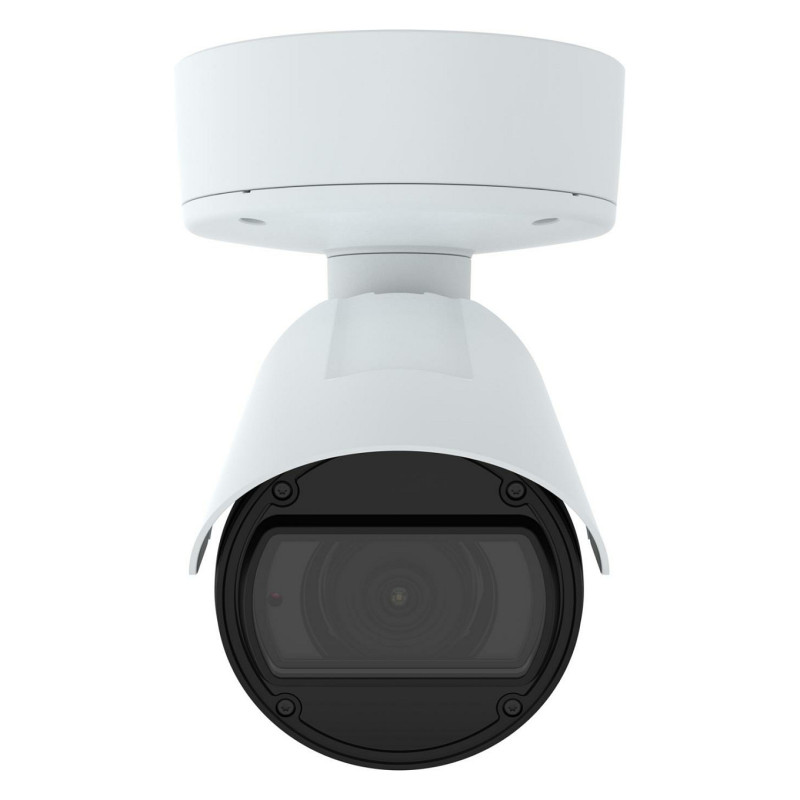

AXIS Q1806-LE Bullet Camera
This high-performance bullet camera offers 4 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.
First-class at any distance
With 32x optical zoom, AXIS Q1806-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR, you'll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you're sure to capture high-quality images even when there's both dark and light areas in the scene. Furthermore, optical image stabilization (OIS) ensures stable images even in low-light situations.
Cost-effective and secure
This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out, it can power other devices such as speakers and strobe sirens. Plus, edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing, this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
Deep learning analytics
Built on ARTPEC-8, AXIS Q1806-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Thanks to AXIS Object Analytics it's possible to detect and classify moving objects. Furthermore, with support for ACAP version 4, you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Design

Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium, Glass
Protection features: Impact resistant
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.02 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 60 - 2.3°
Lens viewing angle, vertical: 39 - 1.3°
Tilt angle range: 0 - 90°
Pan range: -180 - 180°
Camera pixel size: 2 µm
Camera shutter speed: 1/143000 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 32x
Number of lenses: 1
Focal length range: 4.3 - 137 mm
Maximum aperture number: 4
Minimum aperture number: 1.4
Detect distance (wide): 87.7 m
Detect distance (tele): 2732.1 m
Observe distance (wide): 34.8 m
Observe distance (tele): 1084.2 m
Recognize distance (wide): 17.5 m
Recognize distance (tele): 546.4 m
Identify distance (wide): 8.8 m
Identify distance (tele): 273.2 m
Closest focusing distance: 1.2 m

Night vision

Night vision: Yes
Night vision distance: 100 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 4 MP
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1280 x 800 (WXGA), 2880 x 2160
Frame rate: 90 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
ROM capacity: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter: Yes
Digest authentication: Yes

Management features

Remotely operated: Yes

Power

Power source type: PoE
Power consumption (typical): 14.6 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 183 mm
Depth: 411 mm
Height: 183 mm
Weight: 3.2 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Manual: Yes

Other features

Doesn't contain: PVC/BFR
