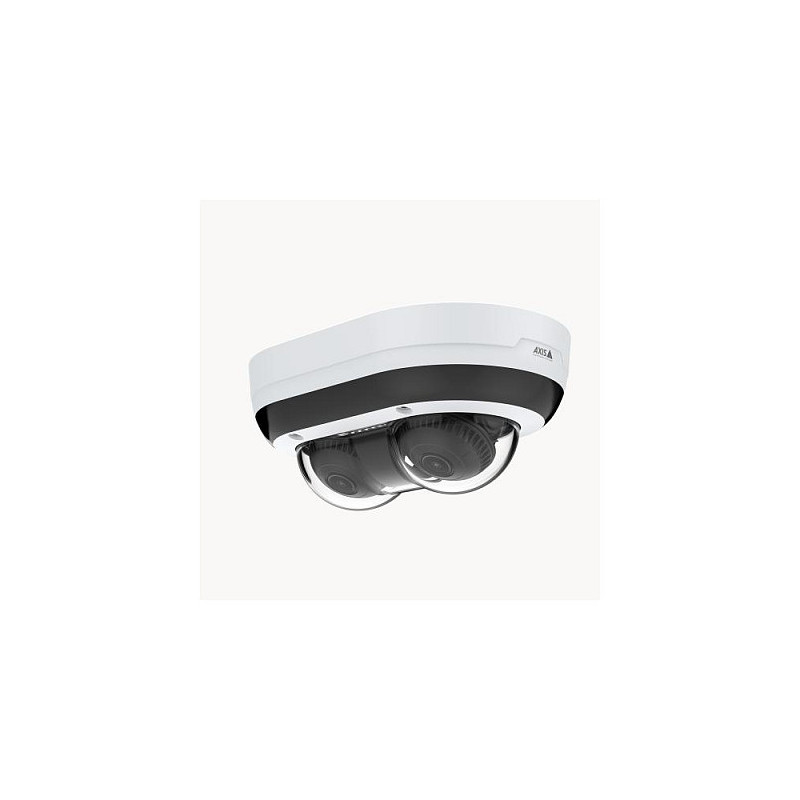

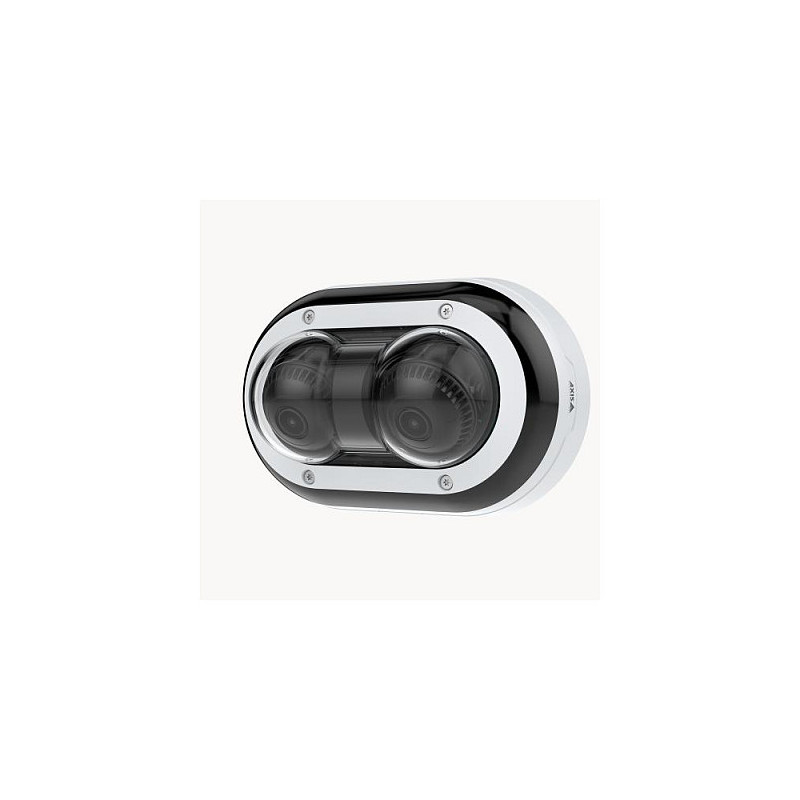

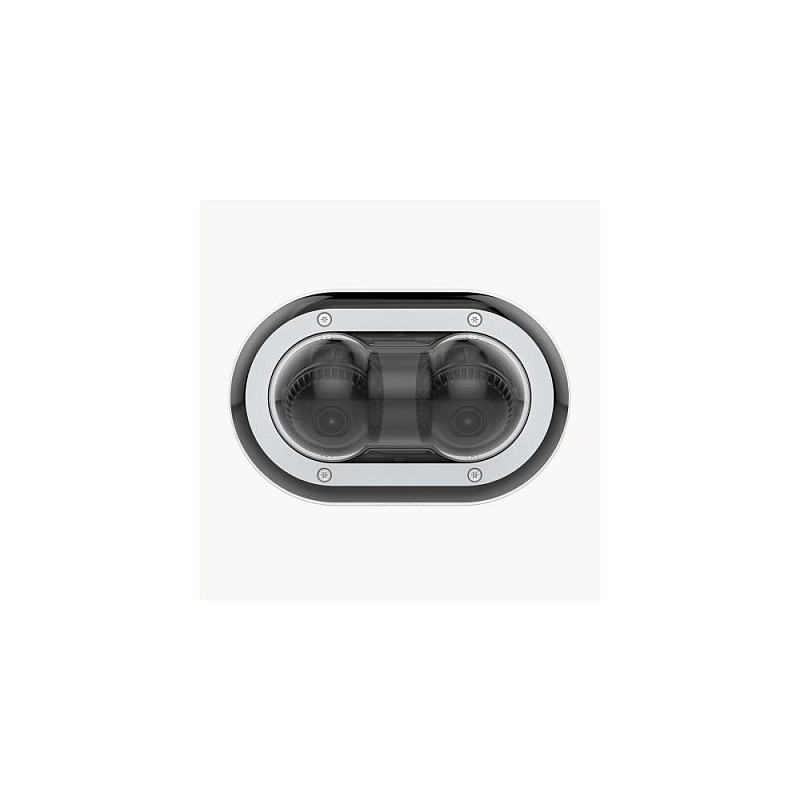

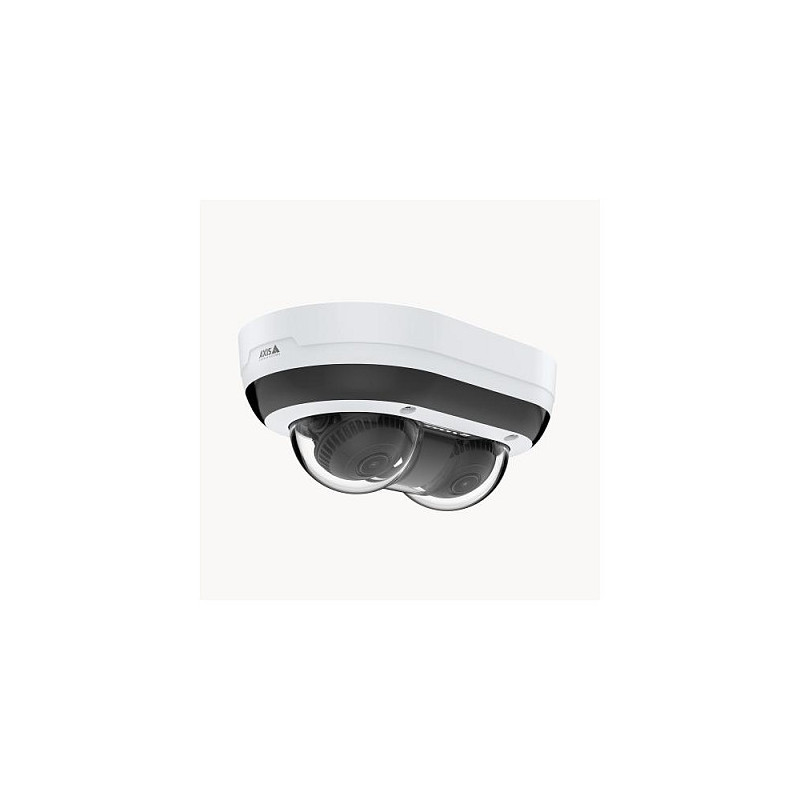

Axis P4708-PLVE

Axis P4708-PLVE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Housing material: Aluminium, Plastic, Polycarbonate (PC). Angle of rotation: 240°, Tilt angle range: -75 - 75°, Pan range: -110 - 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS
Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 - even in challenging light conditions.
See it all - 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.
Brilliant design

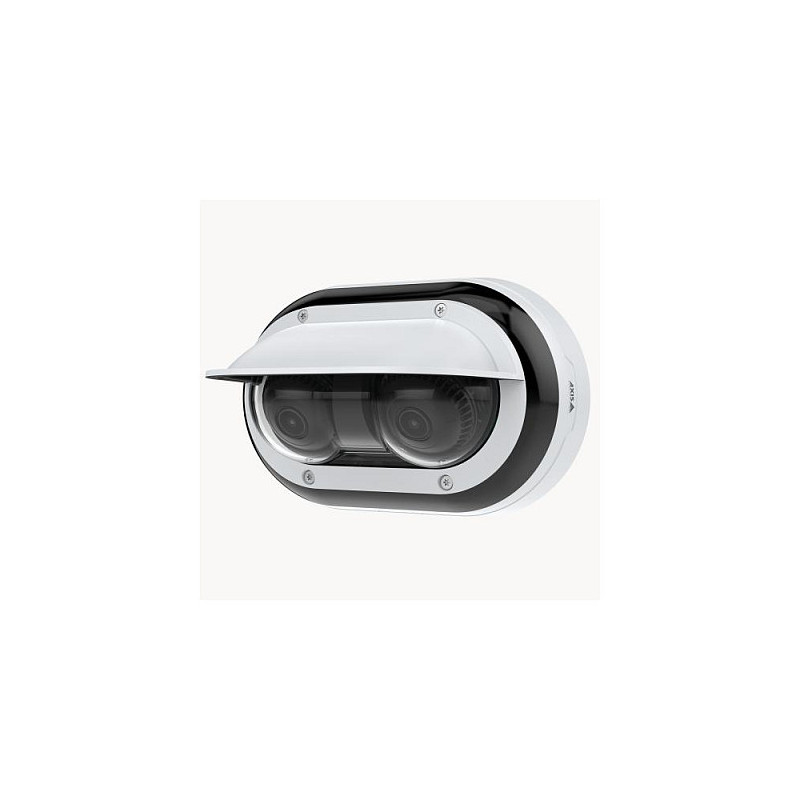

This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn't impacted by sun reflections or water drops.
Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you'll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Remote viewing: Yes
Processor model: ARTPEC-8
Built-in processor: Yes

Design

Mounting type: Ceiling/wall
Product colour: Black, Silver
Housing material: Aluminium, Plastic, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Angle of rotation: 240°
Tilt angle range: -75 - 75°
Pan range: -110 - 110°
Camera shutter type: Electronic
Camera shutter speed: 1/16000 s

Image sensor

Number of sensors: 2
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS

Lens system

Zoom capability: Yes
Number of lenses: 2
Focal length range: 3.2 - 8.1 mm
Auto focus: Yes
Maximum aperture number: 1.9
Minimum aperture number: 3.2
Detect distance (wide): 87.8 m
Detect distance (tele): 220.1 m
Observe distance (wide): 34.8 m
Observe distance (tele): 87.3 m
Recognize distance (wide): 17.6 m
Recognize distance (tele): 44 m
Identify distance (wide): 8.8 m
Identify distance (tele): 22 m
Closest focusing distance: 0.5 m

Night vision

Night vision: Yes
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness

Audio

Audio system: 2-way
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1

Security

Security algorithms: EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Privacy protection: Yes

Power

Power source type: PoE
Power consumption (typical): 10.2 W
Power consumption (max): 18.8 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 208 mm
Depth: 127 mm
Height: 133 mm
Weight: 975 g

Sustainability

Compliance certificates: CE, EAC, Federal Communications Commission (FCC), KC, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL

Packaging content

Number of cameras: 1
