Axis P3905-R Mk III

Axis P3905-R Mk III. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m

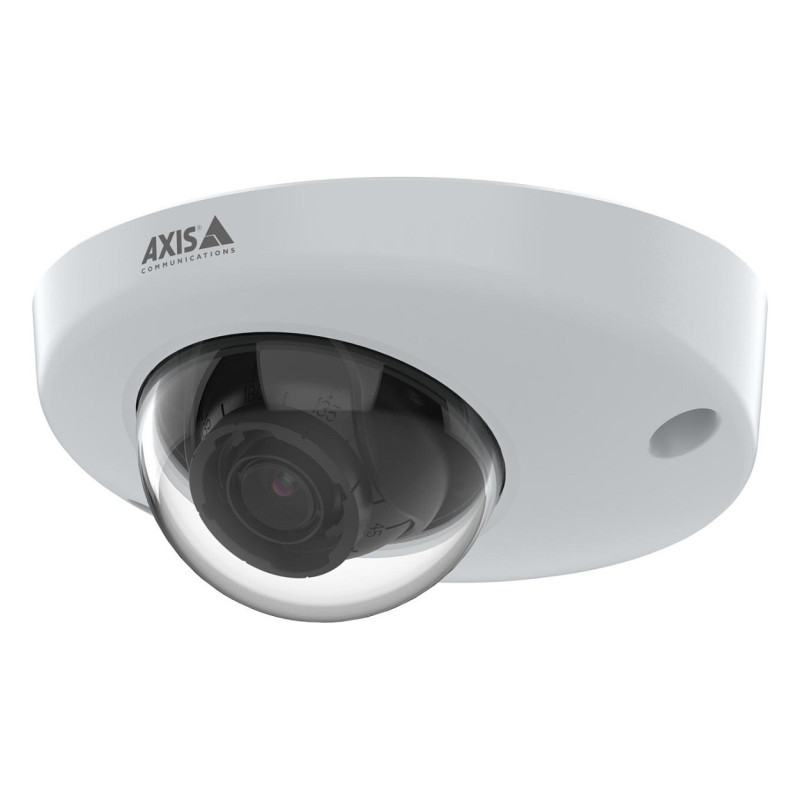

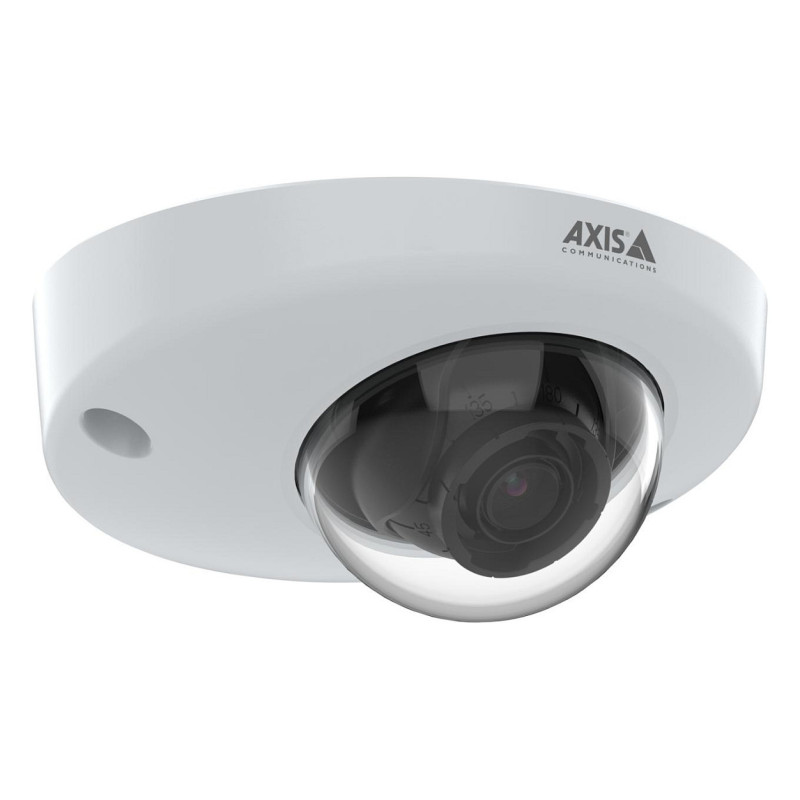

AXIS P3905-R Mk III Dome Camera
Specifically designed for indoor onboard monitoring on railway vehicles such as trains and trams, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.
Optimized for onboard surveillance
This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS P3905-R Mk III can distinguish the color of traffic lights in dark scenes. Furthermore, there are two product variations available with different lens options, and additional lenses available as accessories - everything you need to adjust field of view for customized monitoring purposes.
For tough onboard conditions
AXIS P3905-R Mk III complies with transportation industry standards including EN50155 and EN45545. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installations. Additionally, when used together with AXIS TP3826-E housing it can be mounted on the outside of a vehicle to withstand tough weather.
Secure and cost-effective
This onboard camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Axis Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that's perfect for onboard conditions.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Tour recording: Yes
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Certification: CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEEEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498,Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class A,Korea: KS C 9835, KS C 9832 Class A,USA: FCC Part 15 Subpart B Class AEN 50121-3-2, EN 50121-4, IEC 62236-4IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 IS 13252IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts ofParts of NEMA 250 Type 4X (ingress of water and gasket test),IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), IEC 60068-2-1,IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64,IEC 60068-2-78, IEC 60068-2-14NIST SP500-267ETSI EN 303 645

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.02 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 107°
Lens viewing angle, vertical: 56°
Tilt angle range: 15 - 90°
Pan range: -30 - 30°
Camera pixel size: 2.8 µm
Camera shutter speed: 1/19000 - 1/5 s
Number of Privacy masking areas: 32

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 21.1 m
Observe distance: 7.4 m
Recognize distance: 4.2 m
Maximum aperture number: 1.2
Identify distance: 2.1 m
Fixed focal length: 2.8 mm
Closest focusing distance: 0.3 m

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 400, 1280 x 800, 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Sharpness
Privacy masking: Yes
Bit rate control: Variable Bit Rate (VBR)

Network

Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Security

Password protection: Yes
Video motion detection: Yes
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Alert notification type: E-mail
Pixel counter: Yes
Digest authentication: Yes

Power

Power source type: PoE
Power consumption (typical): 2.2 W
Power consumption (max): 3.8 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%

Weight dimensions

Width: 110 mm
Depth: 110 mm
Height: 50 mm
Weight: 241 g

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 10
Manual: Yes

Other features

Doesn't contain: CFR, PVC/BFR
