Axis P3748-PLVE

Axis P3748-PLVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.4 lx, Lens viewing angle, horizontal: 360°, Lens viewing angle, vertical: 54 - 23°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.18 - 7.42 mm, Detect distance (wide): 86.4 m, Detect distance (tele): 230.5 m

AXIS P3748-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3748-PLVE offers four channels with 8 MP per channel at 12.5/15 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you'll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there's both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation

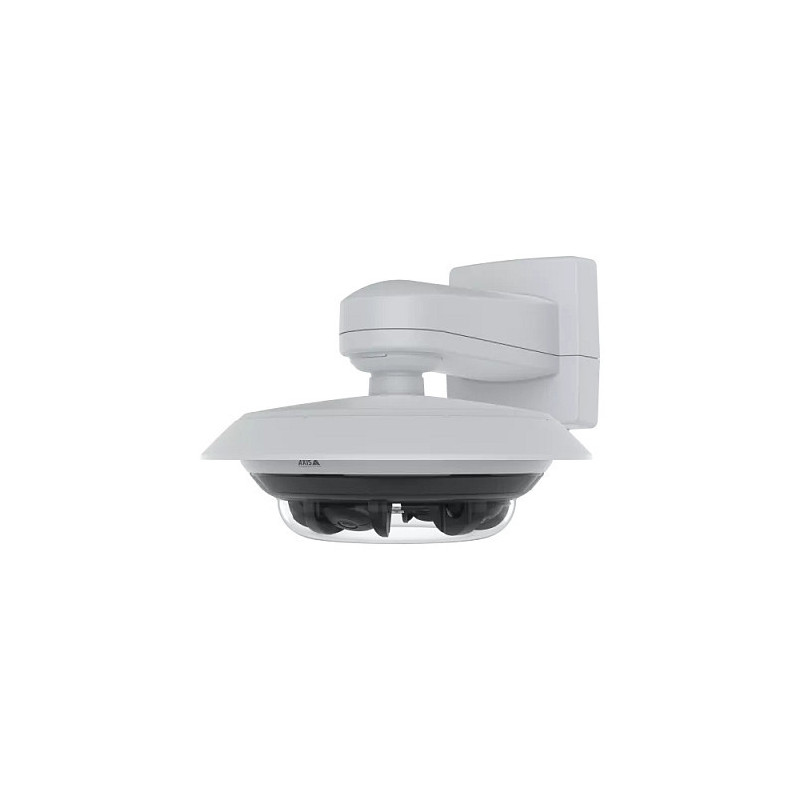

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there's no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.4 lx
Lens viewing angle, horizontal: 360°
Lens viewing angle, vertical: 54 - 23°
Tilt angle range: -23 - 0°
Pan range: -180 - 180°
Camera pixel size: 1.4 µm
Camera shutter speed: 1/14000 - 1/2 s

Image sensor

Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 4
Focal length range: 3.18 - 7.42 mm
Feature: Auto focus
Detect distance (wide): 86.4 m
Detect distance (tele): 230.5 m
Observe distance (wide): 34.3 m
Observe distance (tele): 91.5 m
Recognize distance (wide): 17.3 m
Recognize distance (tele): 46.1 m
Identify distance (wide): 8.6 m
Identify distance (tele): 23 m

Night vision

Feature: Night vision

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265
Frame rate: 15 fps
Feature: Video streaming
Noise reduction technology: 2D noise reduction, 3D noise reduction

Audio

Signal-to-Noise Ratio (SNR): 55 dB
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Power

Power source type: PoE
Power consumption (typical): 10.9 W
Power consumption (max): 23.6 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Weight: 3 kg

Packaging content

Number of cameras: 1

Other features

Doesn't contain: CFR, Brominated Flame Retardant (BFR), PVC
