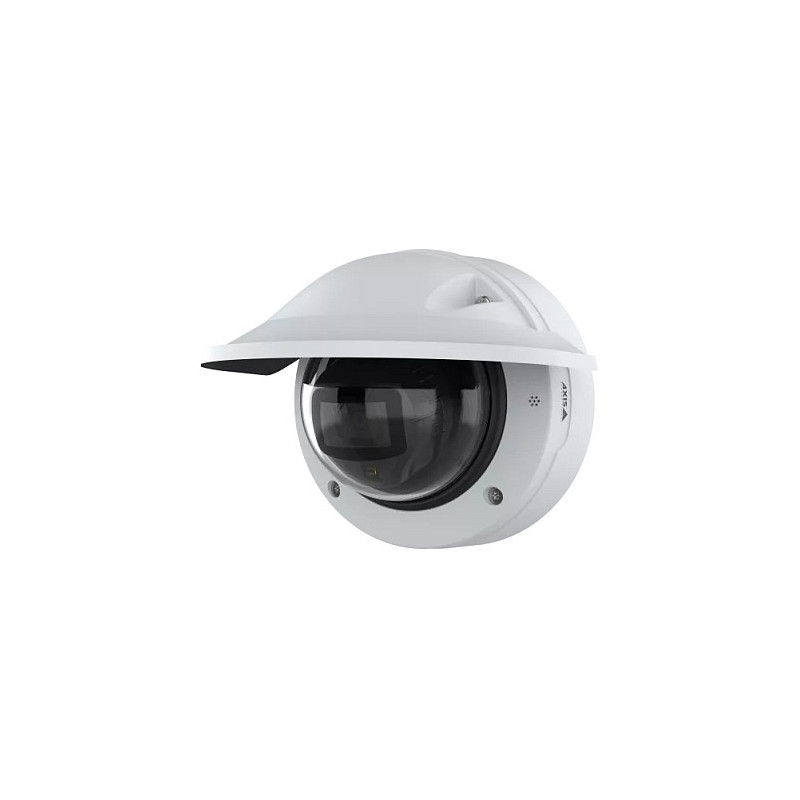

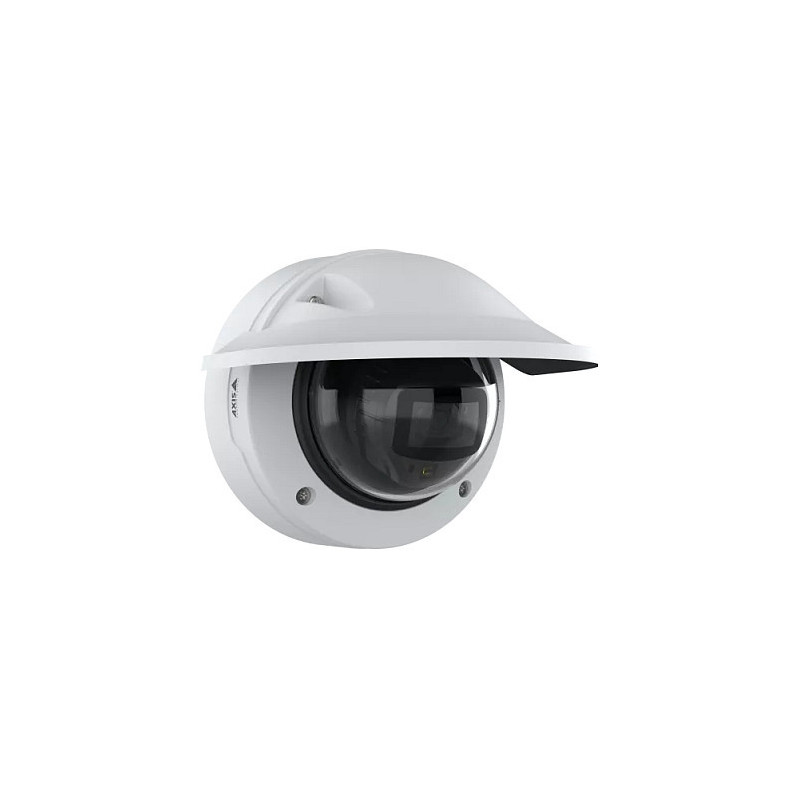

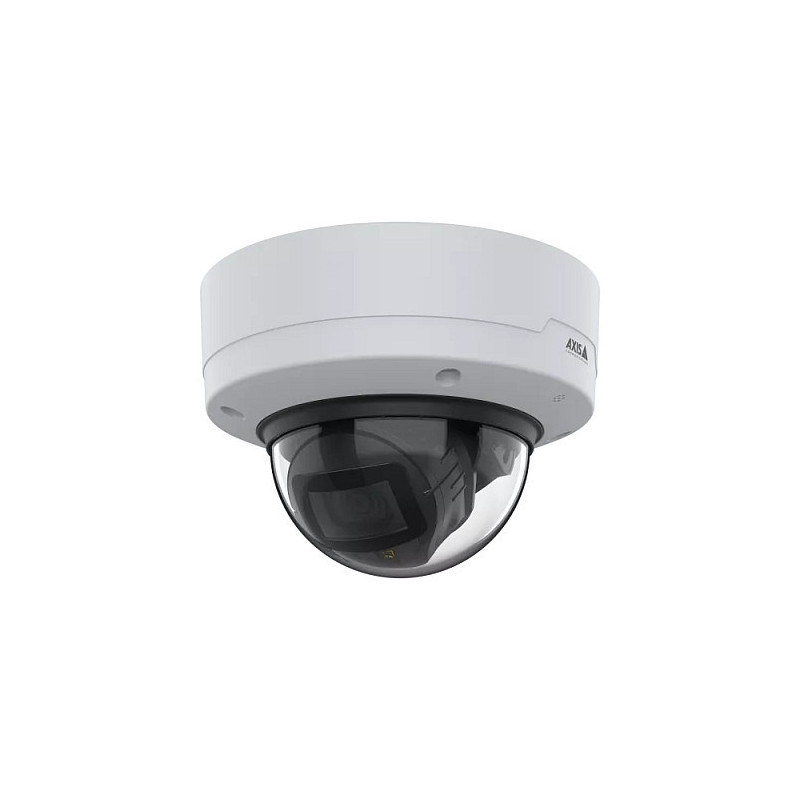

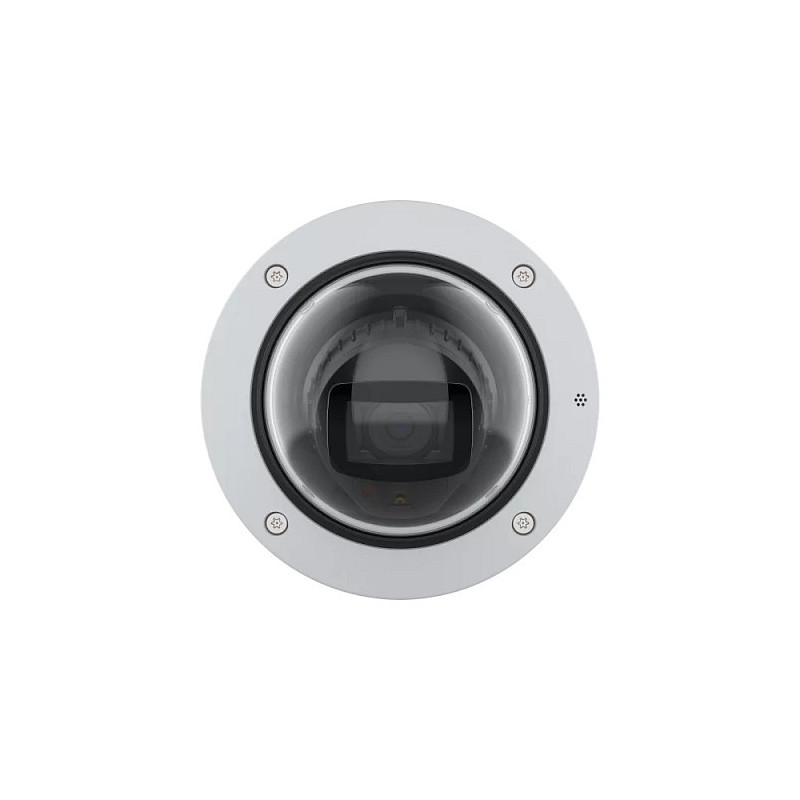

Axis P3288-LVE

Axis P3288-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.11 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 103 - 29°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.4 - 14.6 mm
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3288-LVE offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Design

Form factor: Dome
Mounting type: Wall/Pole
Product colour: White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.11 lx
Angle of rotation: 95°
Lens viewing angle, horizontal: 103 - 29°
Lens viewing angle, vertical: 56 - 17°
Tilt angle range: -45 - 80°
Pan range: -190 - 190°
Camera pixel size: 2 µm
Camera shutter speed: 1/66500 - 2 s

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Focal length range: 4.4 - 14.6 mm
Auto focus: Yes

Night vision

Night vision: Yes

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.265, AV1
Supported graphics resolutions: 3840 x 2160, 2560 x 1600 (WQXGA), 2592 x 1944
Frame rate: 30 fps
Video streaming: Yes

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SDHC, SDXC
Flash memory: 8000 MB
RAM capacity: 2000 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: FIPS 140-3

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 12.9 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 860 g

Packaging content

Number of cameras: 1

Other features

Doesn't contain: PVC, Brominated Flame Retardant (BFR), CFR
