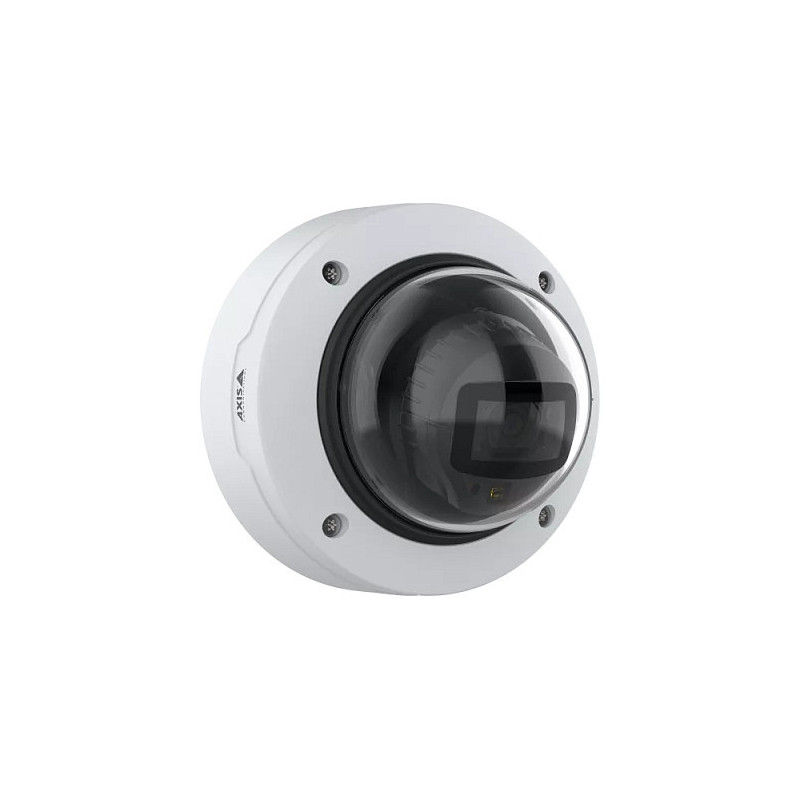

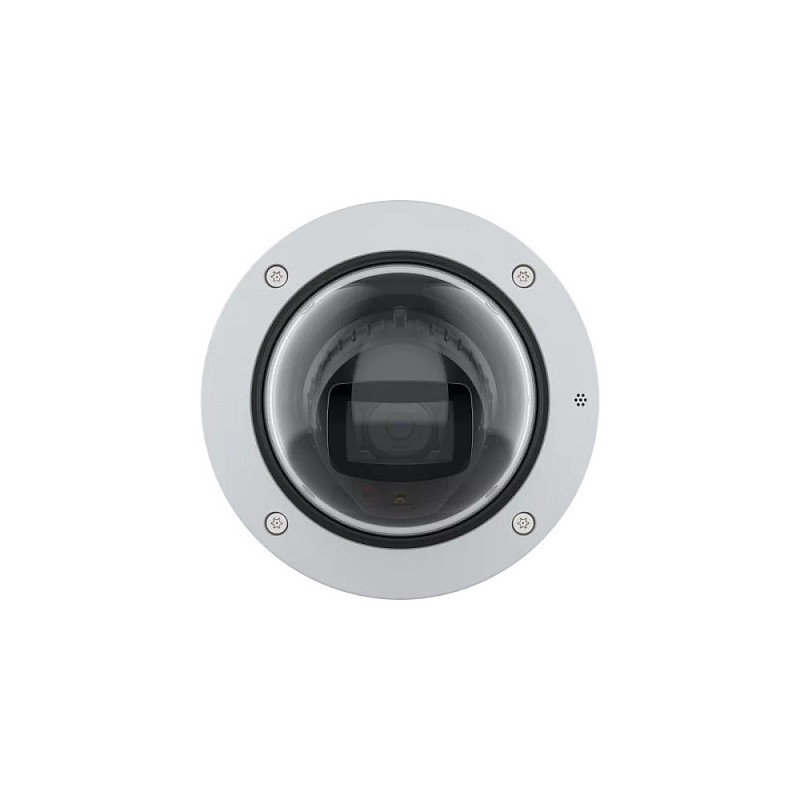

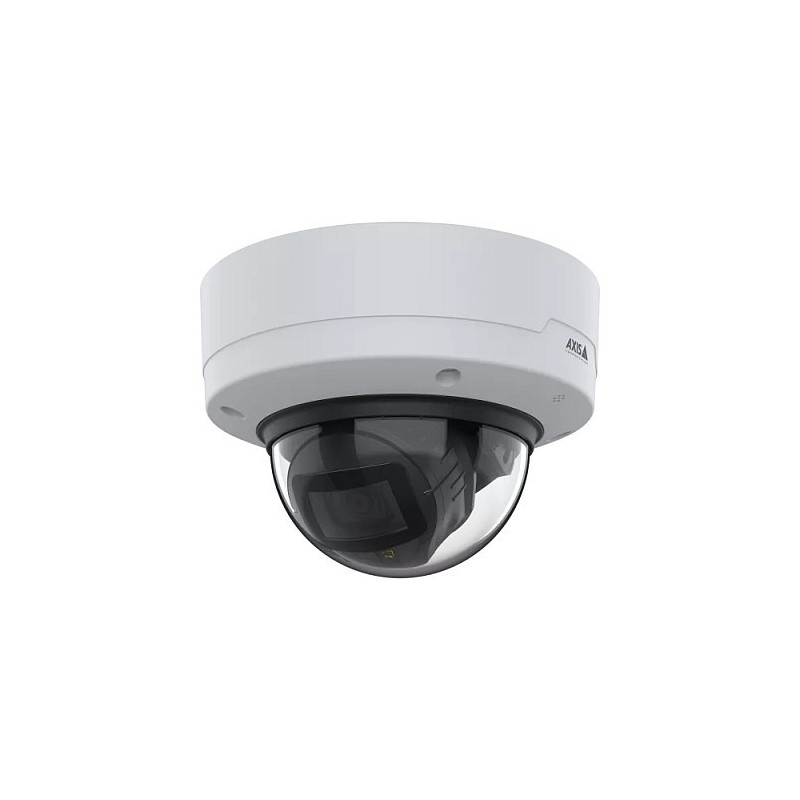

Axis P3288-LV

Axis P3288-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 103 - 29°, Lens viewing angle, vertical: 56 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.4 - 14.6 mm, Detect distance (wide): 88 m, Detect distance (tele): 292 m

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality
AXIS P3288-LV offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP54
IK code: IK10
Feature: Fog proof

Camera

Minimum illumination: 0 lx
Angle of rotation: 95°
Lens viewing angle, horizontal: 103 - 29°
Lens viewing angle, vertical: 56 - 17°
Tilt angle range: -40 - 80°
Pan range: -190 - 190°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS

Lens system

Focal length range: 4.4 - 14.6 mm
Feature: Auto focus
Detect distance (wide): 88 m
Detect distance (tele): 292 m
Observe distance (wide): 35 m
Observe distance (tele): 116 m
Recognize distance (wide): 18 m
Recognize distance (tele): 58 m
Identify distance (wide): 9 m
Identify distance (tele): 29 m
Closest focusing distance: 1 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 3840 x 2160, 2560 x 1600 (WQXGA), 2592 x 1944
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 2048 MB

Management features

Feature: Cloud-managed

Power

Power source type: PoE, DC
Power consumption (max): 12.9 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 107 mm
Diameter: 14.9 cm
Weight: 820 g

Packaging content

Number of cameras: 1
