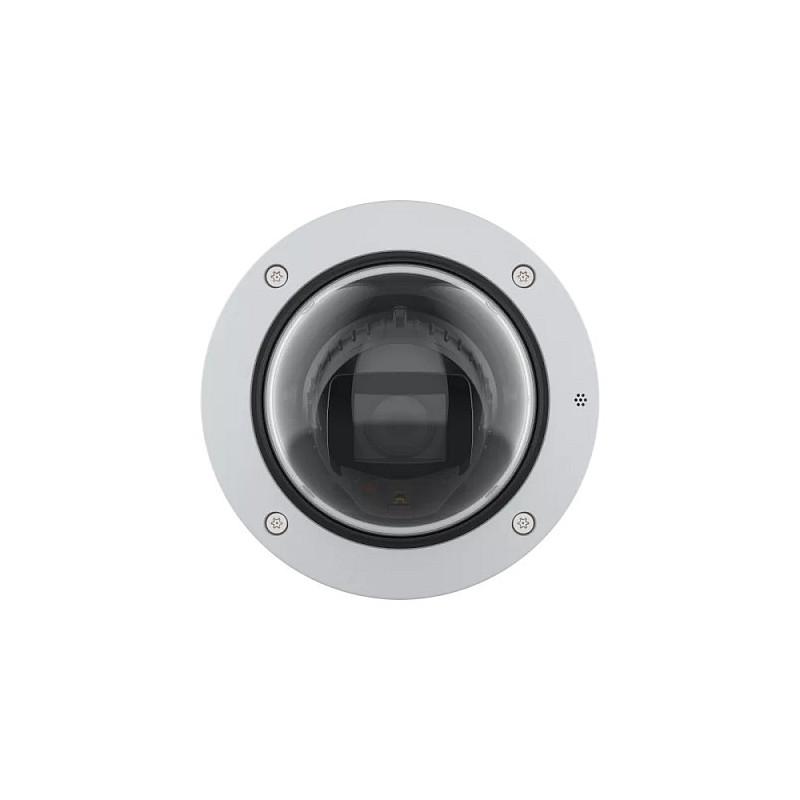

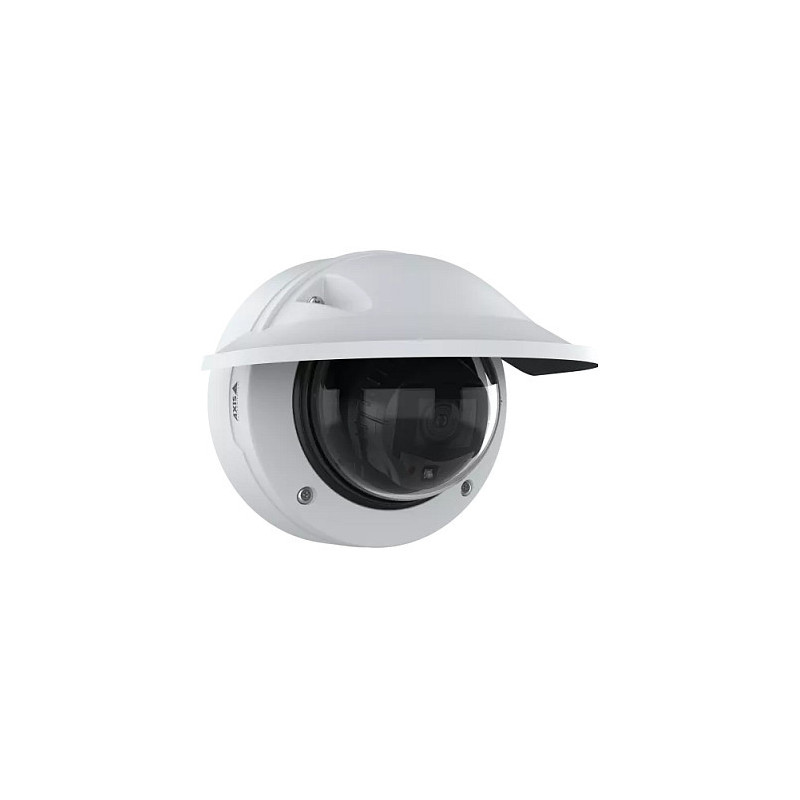

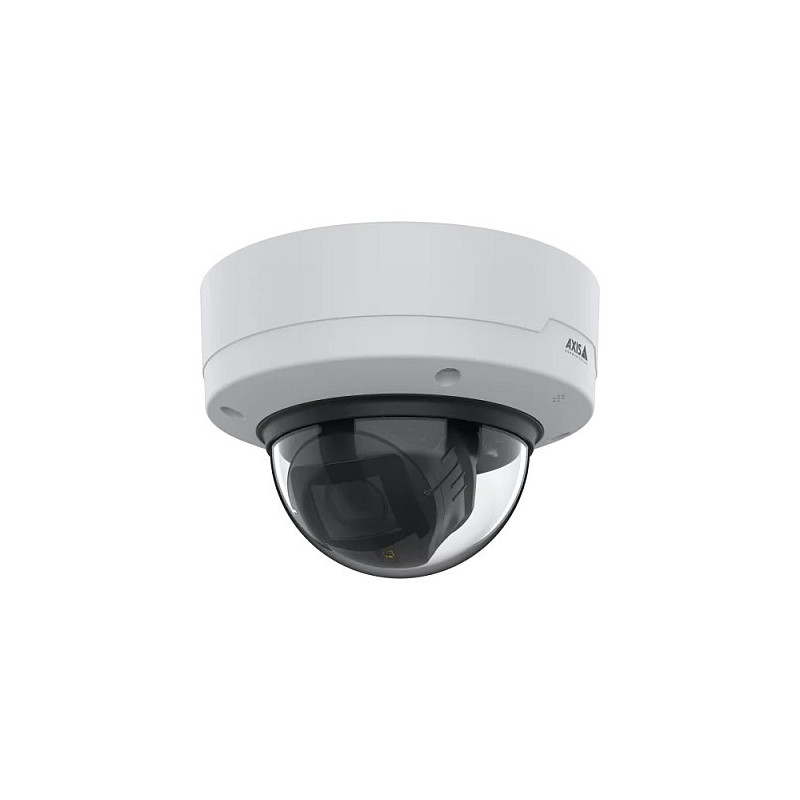

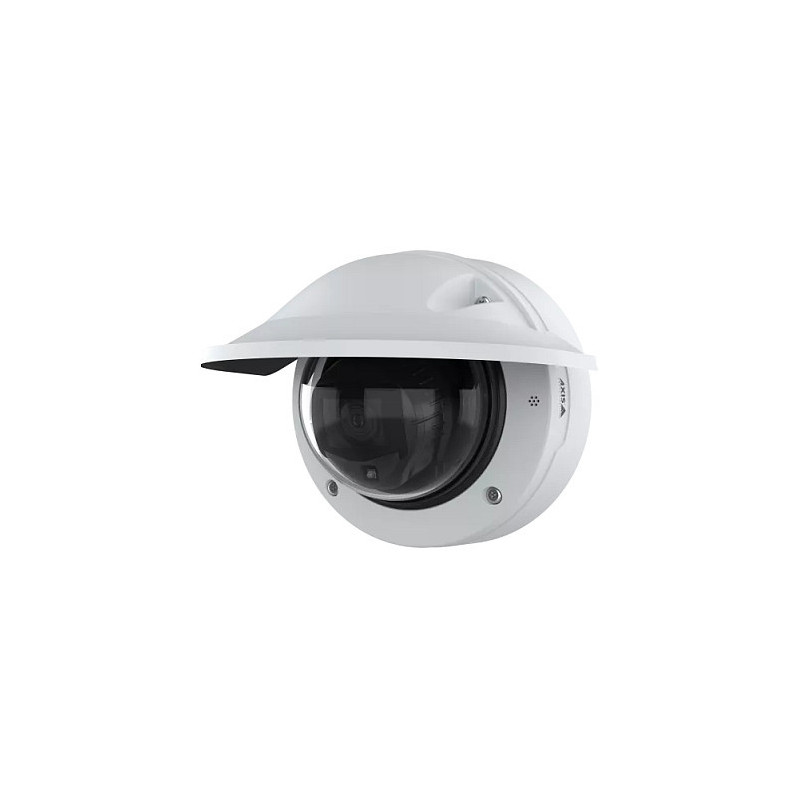

Axis P3287-LVE Dome

Axis P3287-LVE Dome. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 2.9 cm, Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Auto-tracking: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic, Polycarbonate (PC)
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP66
IK code: IK10
Weatherproof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.02 lx
Angle of rotation: 190°
Lens viewing angle, horizontal: 34°
Lens viewing angle, vertical: 26°
Tilt angle range: -45 - 80°
Pan range: -190 - 190°
Camera pixel size: 2 µm
Camera shutter speed: 1/30500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Number of lenses: 1
Lens diameter: 2.9 cm
Focal length range: 3 - 8.5 mm
Auto focus: Yes
Maximum aperture number: 1.76
Minimum aperture number: 1.7
Detect distance (wide): 60 m
Detect distance (tele): 170 m
Observe distance (wide): 24 m
Observe distance (tele): 67 m
Recognize distance (wide): 12 m
Recognize distance (tele): 34 m
Identify distance (wide): 6 m
Identify distance (tele): 17 m

Night vision

Night vision: Yes
Night vision distance: 45 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080), 2592 x 1944
Frame rate: 30 fps
Video streaming: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 2000 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes

Security

Video motion detection: Yes
Active tampering alarm: Yes
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Alert notification type: E-mail
Privacy protection: Yes
Pixel counter: Yes
Human and vehicle targets classification: Yes

Management features

Behavior analysis: Line crossing detection

Power

Power source type: PoE
Power consumption (typical): 4.7 W
Power consumption (max): 12.6 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 820 g

Sustainability

Compliance certificates: REACH, RoHS, Trade Agreements Act (TAA)

Packaging content

Number of cameras: 1
Sun shield included: Yes
Manual: Yes

Other features

Doesn't contain: CFR, PVC, PVC/BFR
