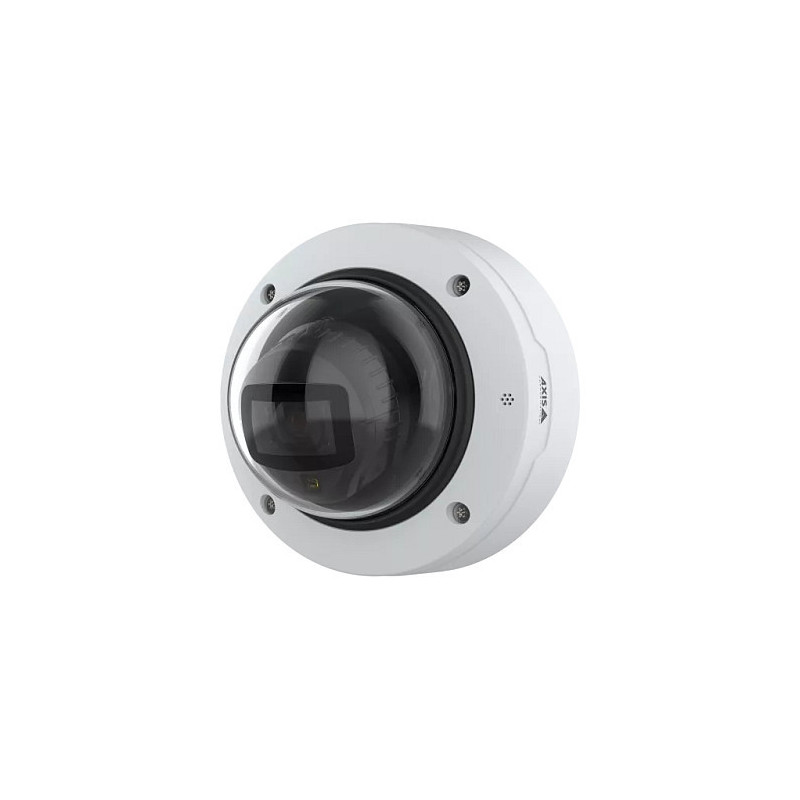

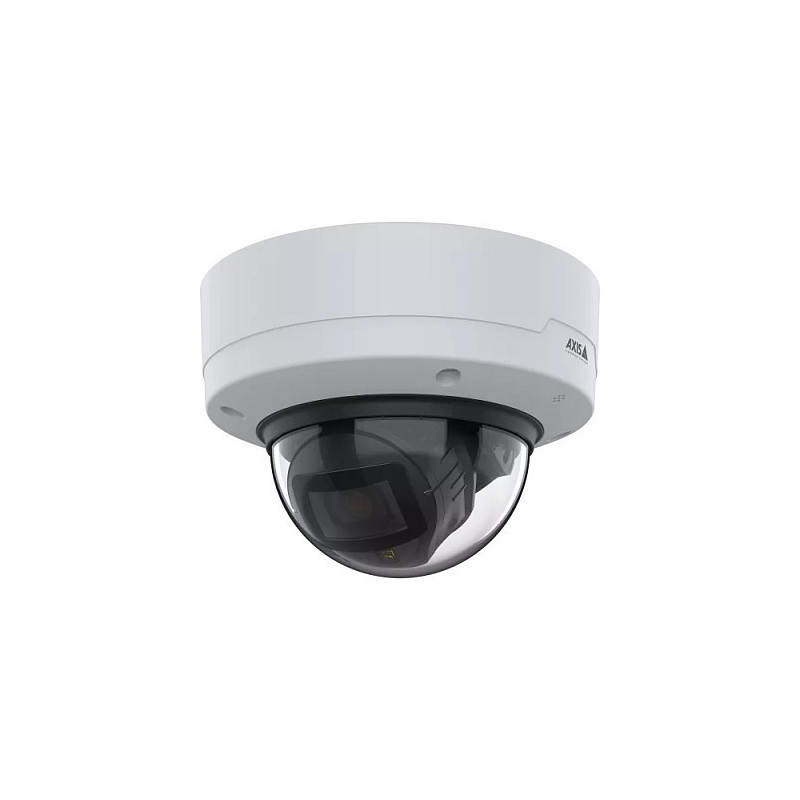

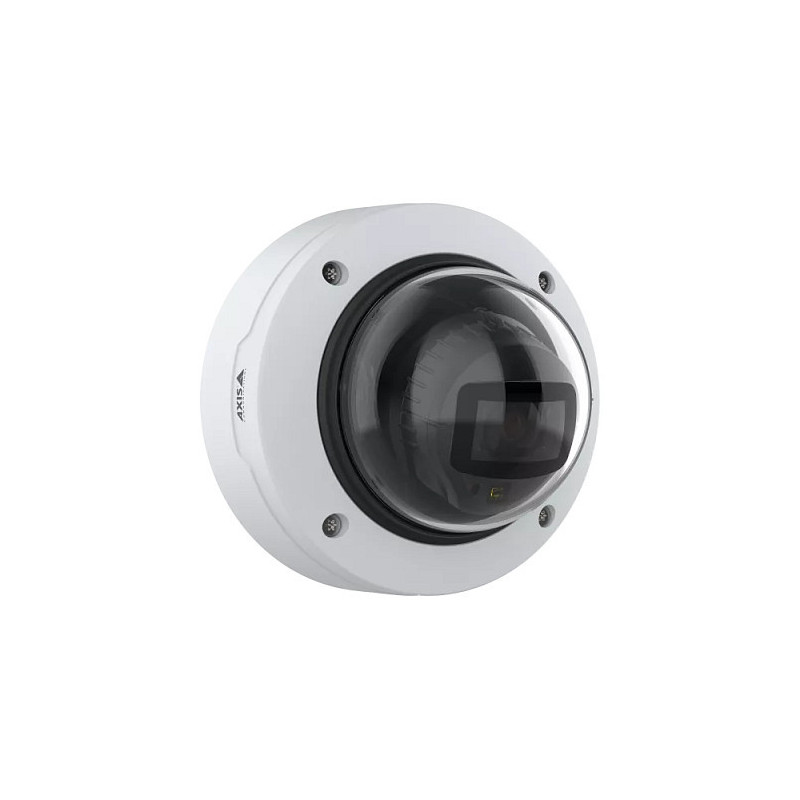

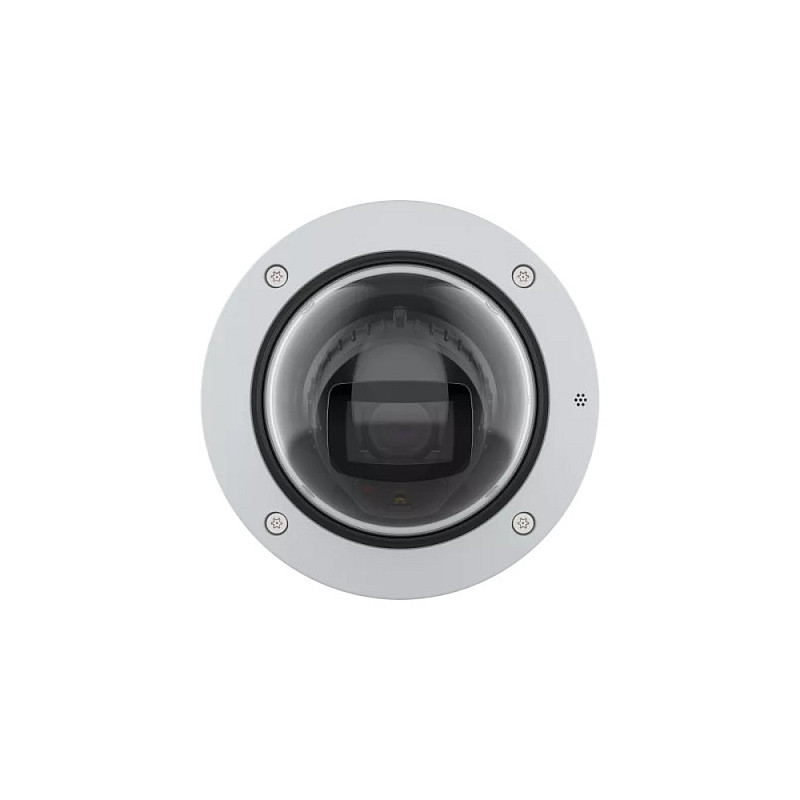

Axis P3285-LV

Axis P3285-LV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Lens viewing angle, horizontal: 100 - 32°, Lens viewing angle, vertical: 52 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.4 - 9.8 mm, Detect distance (wide): 48 m, Detect distance (tele): 135 m
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3285-LV offers excellent image quality and forensic details in 2 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP54
IK code: IK10

Camera

Minimum illumination: 0.08 lx
Lens viewing angle, horizontal: 100 - 32°
Lens viewing angle, vertical: 52 - 18°
Tilt angle range: -45 - 80°
Pan range: -190 - 190°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/37000 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Number of lenses: 1
Focal length range: 3.4 - 9.8 mm
Auto focus: Yes
Detect distance (wide): 48 m
Detect distance (tele): 135 m
Observe distance (wide): 19 m
Observe distance (tele): 54 m
Recognize distance (wide): 9.6 m
Recognize distance (tele): 27 m
Identify distance (wide): 4.8 m
Identify distance (tele): 14 m

Night vision

Night vision: Yes

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.265, H.264, AV1
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 800, 1440 x 1080
Frame rate: 60 fps
Video streaming: Yes

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Storage

Card reader integrated: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: FIPS 140-3

Power

Power source type: PoE
Power consumption (typical): 3.4 W
Power consumption (max): 10 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 810 g

Packaging content

Number of cameras: 1

Other features

Doesn't contain: PVC, CFR, Brominated Flame Retardant (BFR)
