Axis P3277-LV

Axis P3277-LV. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 104°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

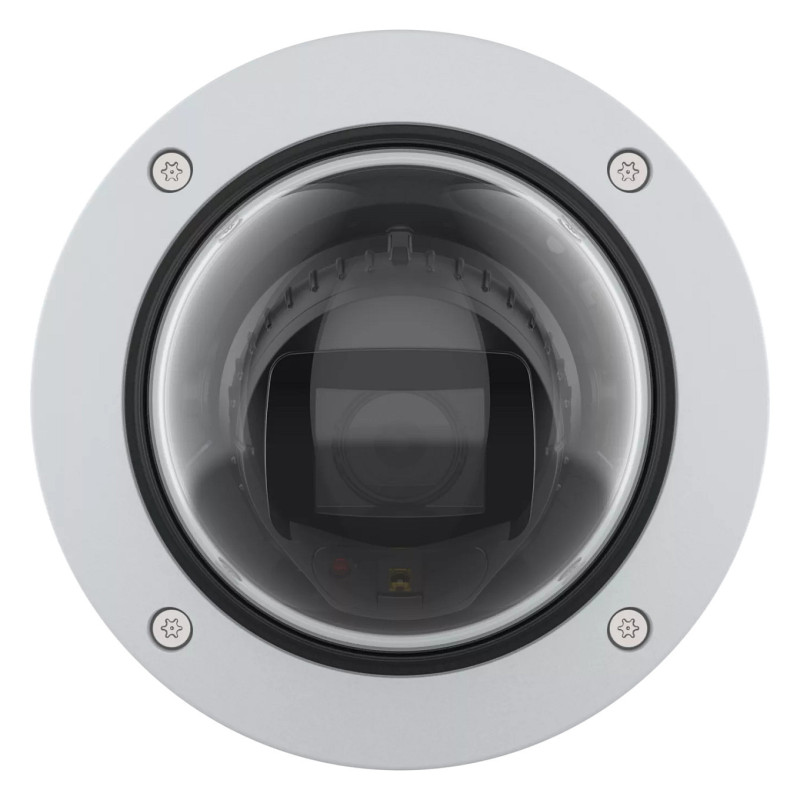

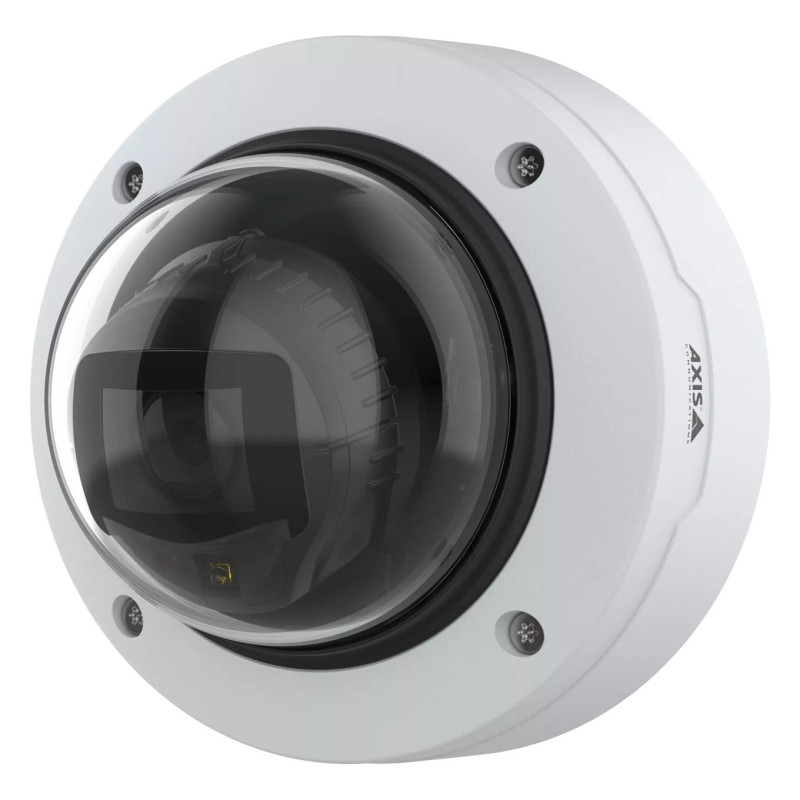

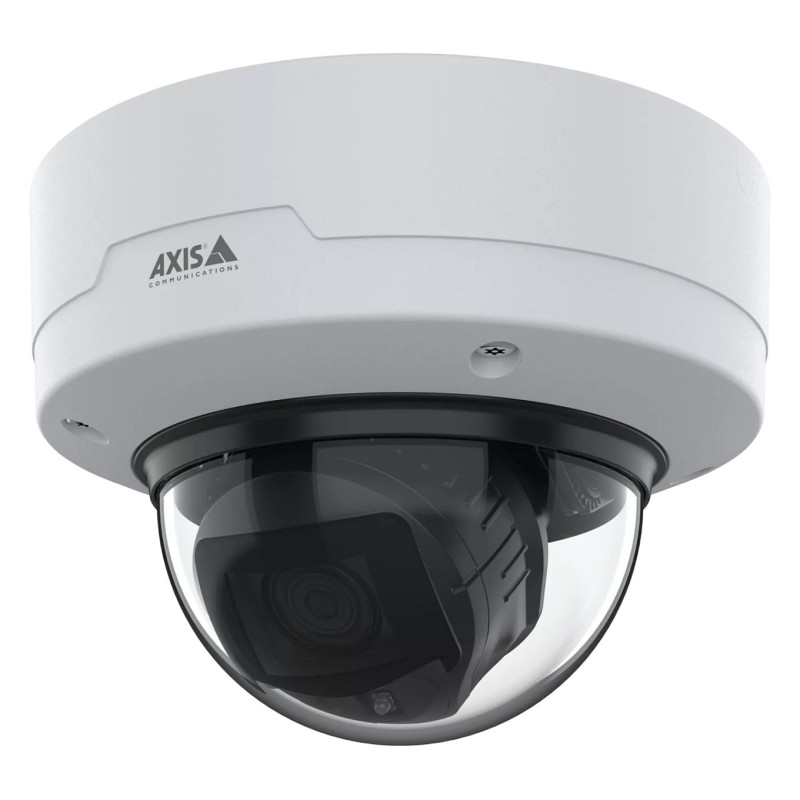

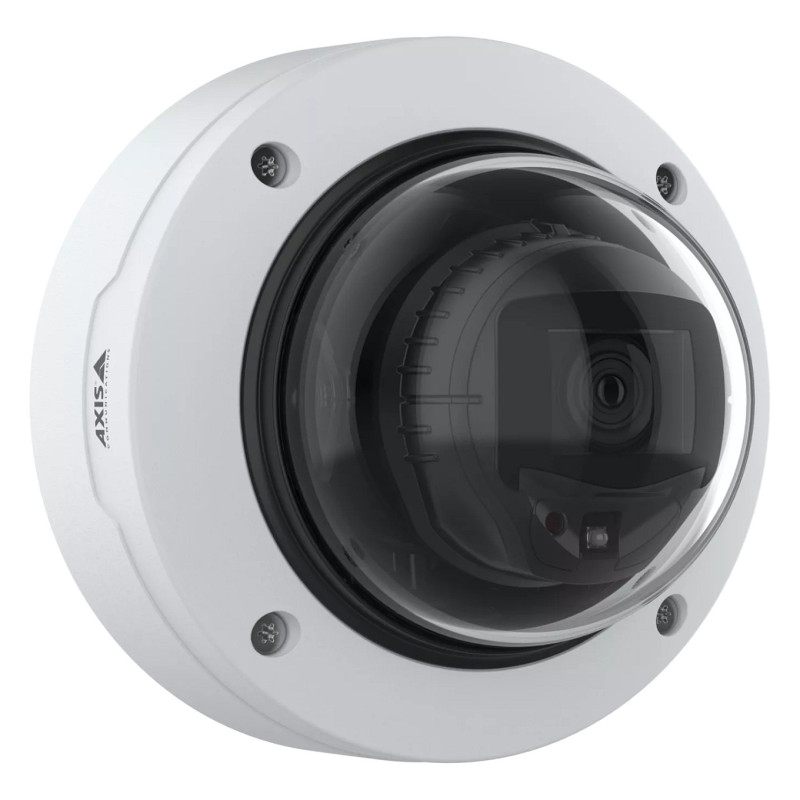

AXIS P3277-LV Dome Camera
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LV offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it's possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Tour recording: Yes
People counting function: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic, Polycarbonate (PC)
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP54
IK code: IK10
Weatherproof: Yes
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.03 lx
Angle of rotation: 190°
Lens viewing angle, horizontal: 104°
Lens viewing angle, vertical: 76°
Tilt angle range: -50 - 80°
Pan range: -190 - 190°
Camera shutter speed: 1/30500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Number of lenses: 1
Lens diameter: 1 cm
Focal length range: 3 - 8.5 mm
Auto focus: Yes
Maximum aperture number: 2.58
Minimum aperture number: 1.38
Detect distance (wide): 60 m
Detect distance (tele): 170 m
Observe distance (wide): 24 m
Observe distance (tele): 67 m
Recognize distance (wide): 12 m
Recognize distance (tele): 34 m
Identify distance (wide): 6 m
Identify distance (tele): 17 m
Closest focusing distance: 1 m

Night vision

Night vision: Yes
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 2592 x 1944
Frame rate: 30 fps
Video streaming: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Text caption overlay: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8 MB
Internal memory: 2000 MB

Ports interfaces

Microphone in: Yes
Terminal block port: Yes

Security

Security algorithms: 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object
Human and vehicle targets classification: Yes

Power

Power source type: PoE
Power consumption (typical): 4.7 W
Power consumption (max): 12.6 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 149 mm
Depth: 149 mm
Height: 107 mm
Weight: 810 g

Sustainability

Compliance certificates: CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: BFR, PVC
