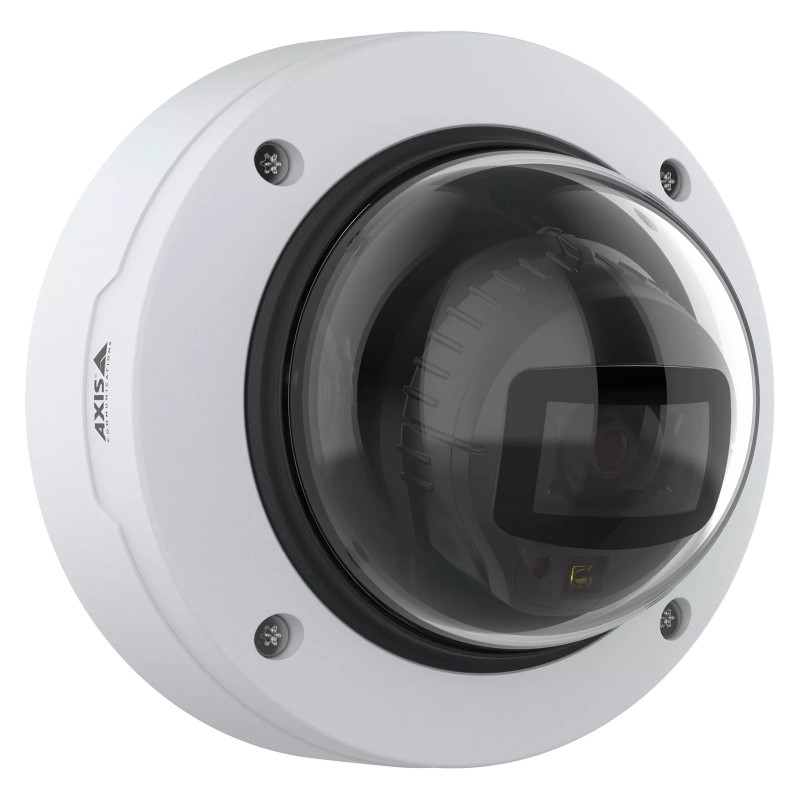

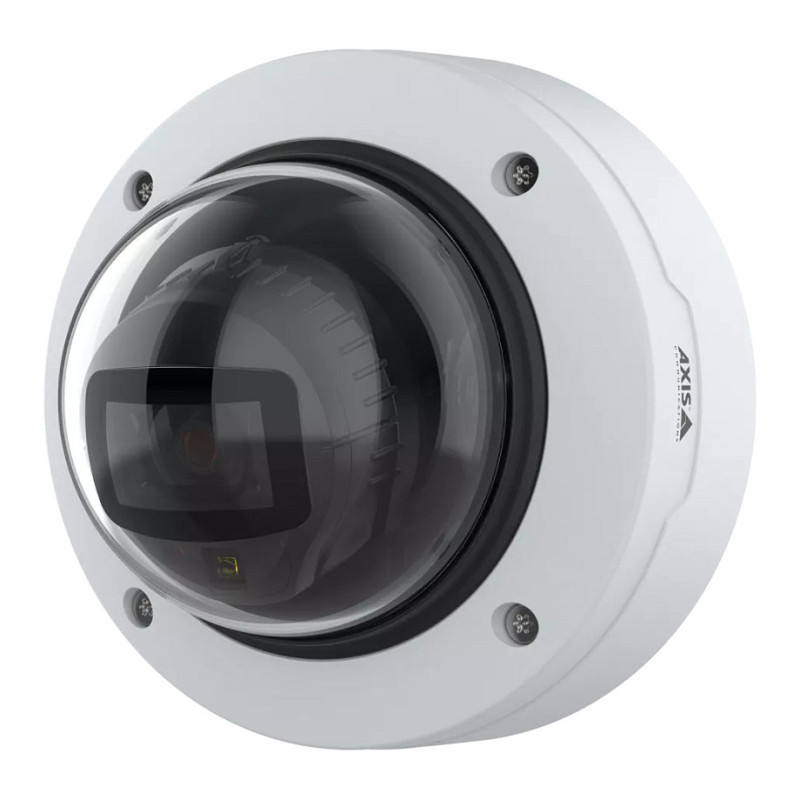

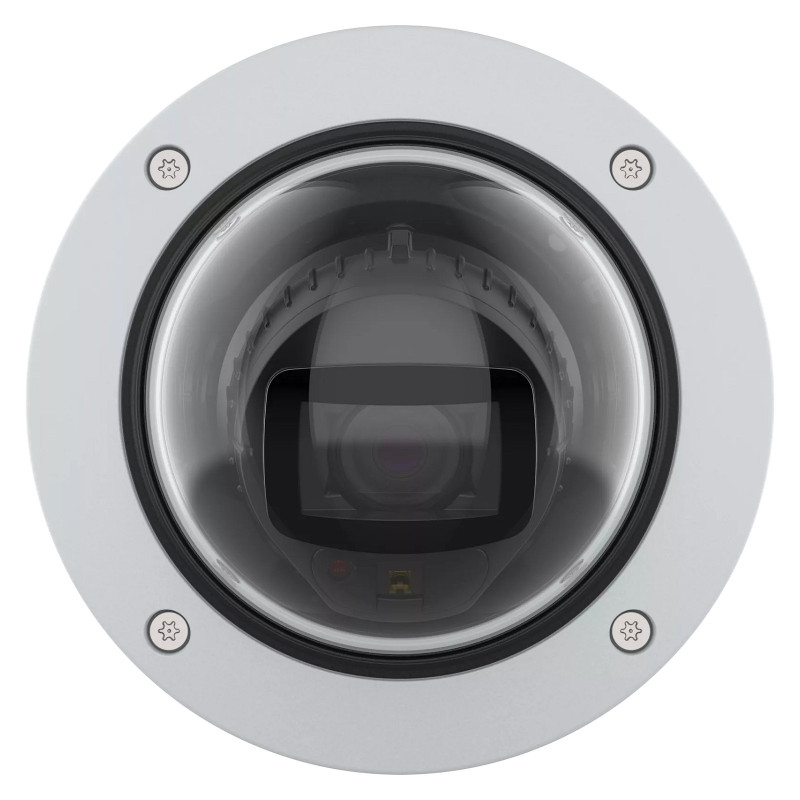

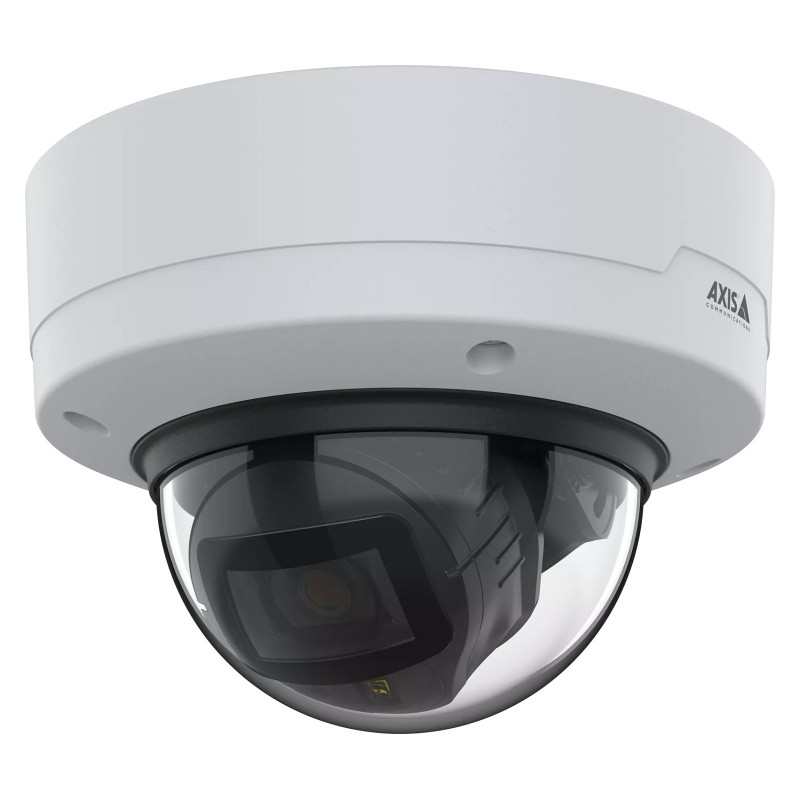

Axis P3275-LV

Axis P3275-LV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 100 - 32°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.4 - 9.8 mm, Detect distance (wide): 48 m, Detect distance (tele): 135 m

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality
AXIS P3275-LV offers excellent image quality and forensic details in 2 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it's possible to connect a microphone for audio support.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Processor model: ARTPEC-9
Feature: Built-in processor
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling/Wall/Pole
Product colour: White
LED indicators: Yes
Housing material: Plastic, Polycarbonate (PC)
International Protection (IP) code: IP54
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.02 lx
Angle of rotation: 95°
Lens viewing angle, horizontal: 100 - 32°
Lens viewing angle, vertical: 52 - 18°
Tilt angle range: -45 - 80°
Pan range: -190 - 190°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/37000 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Focal length range: 3.4 - 9.8 mm
Feature: Auto focus
Maximum aperture number: 2.7
Minimum aperture number: 1.4
Detect distance (wide): 48 m
Detect distance (tele): 135 m
Observe distance (wide): 19 m
Observe distance (tele): 54 m
Recognize distance (wide): 9.6 m
Recognize distance (tele): 27 m
Identify distance (wide): 4.8 m
Identify distance (tele): 14 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AV1, H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 60 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness, White balance
Feature: Text caption overlay

Audio

Audio system: 2-way
Feature: Audio system full duplex

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Video motion detection
Feature: Pixel counter
Feature: Network access storage (NAS)

Management features

Feature: Cloud-managed

Power

Power source type: DC, PoE
Power consumption (typical): 3.4 W
Power consumption (max): 10 W
DC output voltage: 12
DC output current: 0.025 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Weight: 800 g

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
