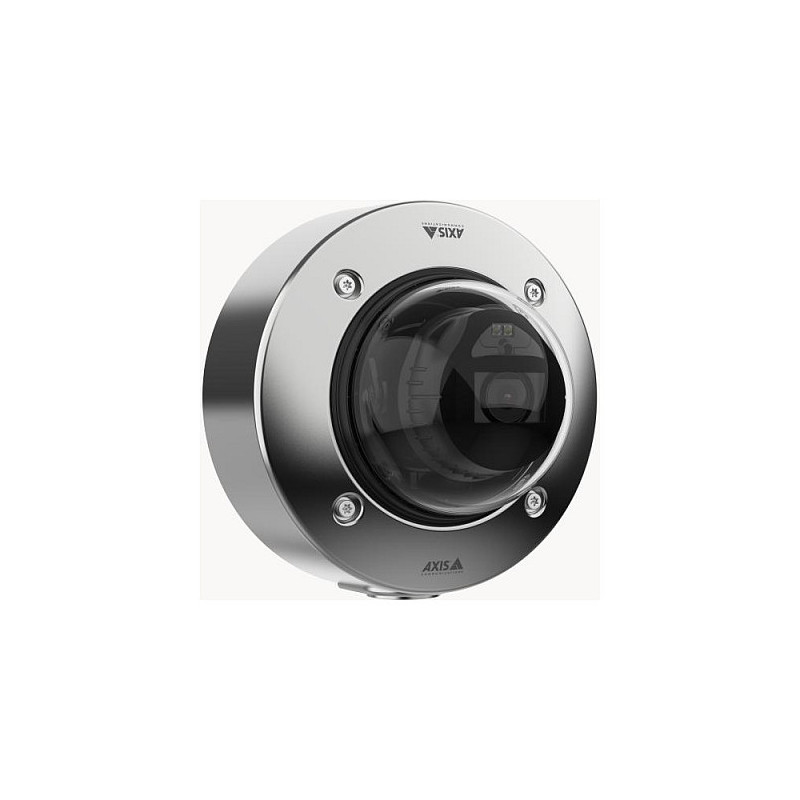

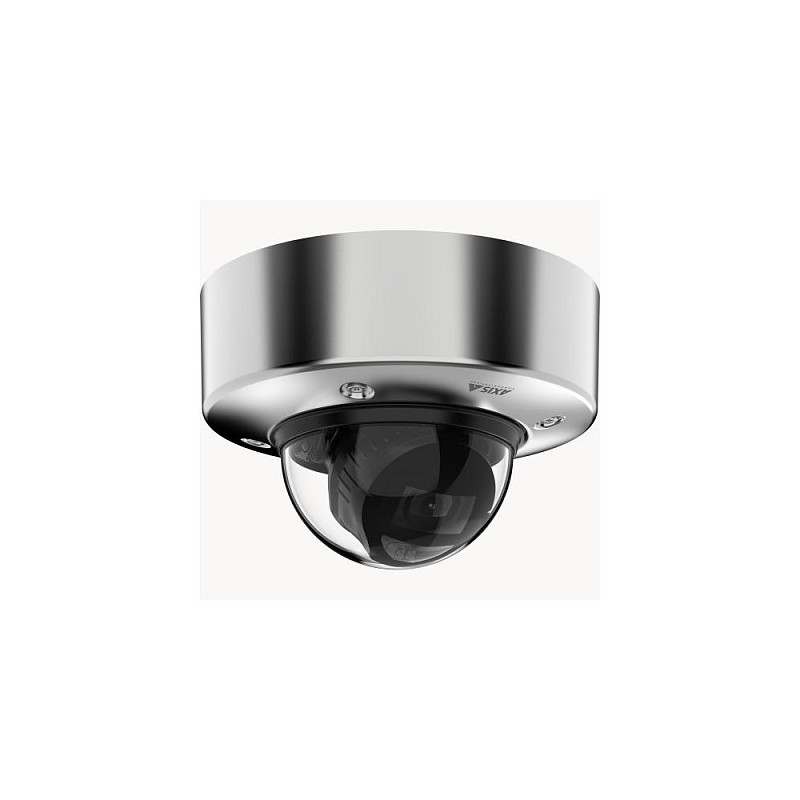

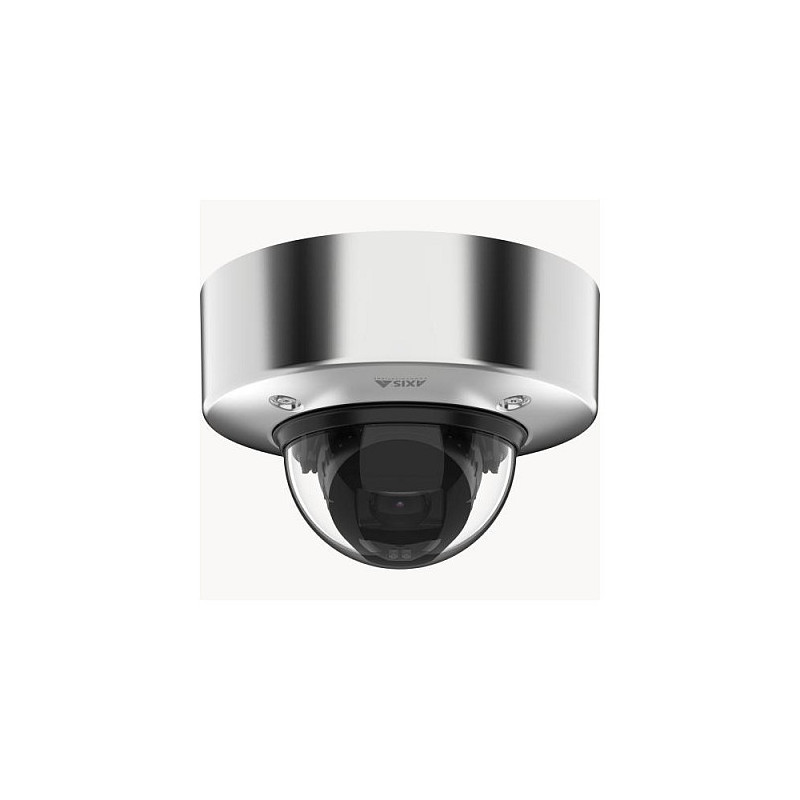

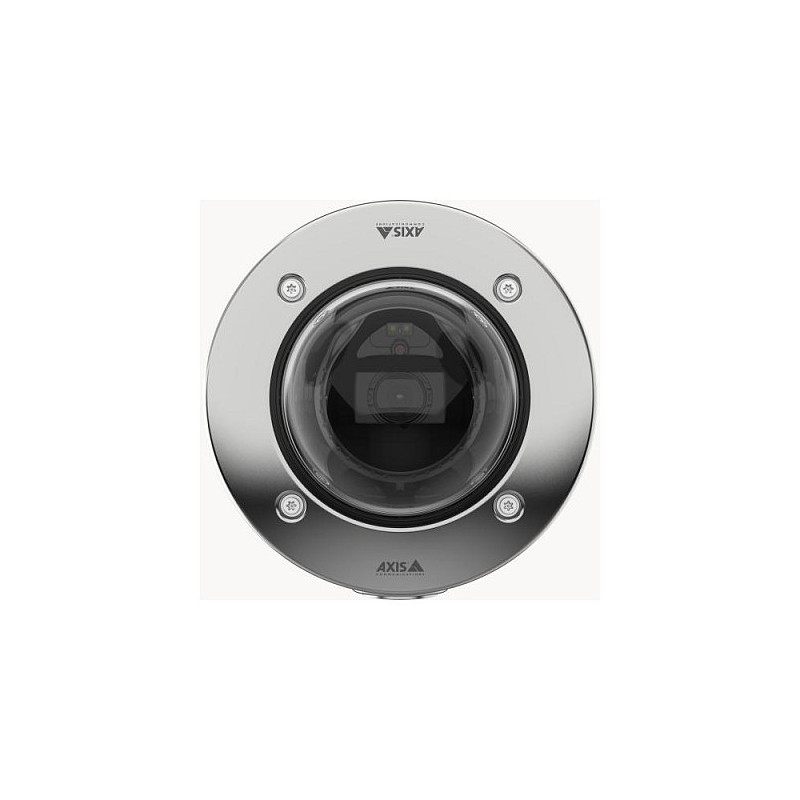

Axis P3268-SLVE

Axis P3268-SLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Form factor: Dome. Angle of rotation: 380°, Tilt angle range: -10 - 80°, Pan range: -190 - 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm, Closest focusing distance: 0.5 m

Certified for use in food processing facilities, this robust camera is enclosed in an marine-grade stainless steel (SS 316L) casing. It offers excellent image quality in 4K and supports advanced analytics based on deep learning on the edge.

Maintenance-friendly and robust
Enclosed in an electropolished, marine-grade stainless steel (SS 316L) casing, DNV-certified, this robust camera can withstand the corrosive effects of seawater as well as cleaning chemicals. Easy to clean and maintain, it's certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Furthermore, this IK11-, NEMA 4X-, and IP66/67/68-rated camera is both weather-proof and impact-resistant. And it can withstand extreme temperatures between -40 °C to 50 °C (-40 °F to 122 °F).

Excellent image quality
AXIS P3268-SLVE delivers excellent image quality and forensic details in 8 MP at up to 30 fps. Plus, it offers a wide field of view of up to 100°. Thanks to Lightfinder 2.0 and Forensic WDR, you'll enjoy true colors and great detail in challenging light or near darkness. And OptimizedIR ensures sharp, clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.

Deep learning analytics on the edge
Built on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Additionally, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, it includes Axis Edge Vault, a hardware-based cybersecurity platform that guarantees the device's integrity and protects it from unauthorized access.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARTPEC-8
Feature: Built-in processor

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, Silver
Housing material: Polycarbonate (PC), Stainless steel
International Protection (IP) code: IP66, IP67, IP68

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 380°
Tilt angle range: -10 - 80°
Pan range: -190 - 190°
Camera shutter type: Electronic
Camera shutter speed: 1/8500 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 4.3 - 8.6 mm
Closest focusing distance: 0.5 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: MPEG4
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Feature: Text caption overlay

Audio

Audio system: 2-way
Audio formats supported: AAC-LC, G.711, G.726, LPCM

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in

Security

Feature: IP address filtering
Security algorithms: EAP-TLS, HTTPS

Management features

Feature: Web-based management
Feature: Remotely operated

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 11.2 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 112 mm
Diameter: 16.6 cm
Weight: 1.76 kg

Sustainability

Compliance certificates: BIS, CE, KC, NSF, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, WEEE, cUL

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Manual
