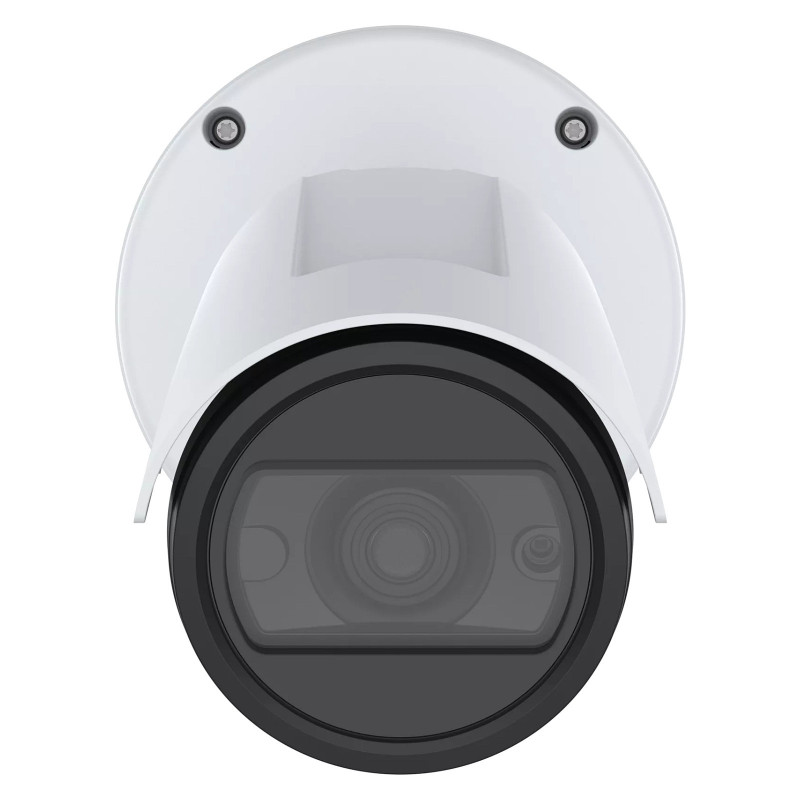

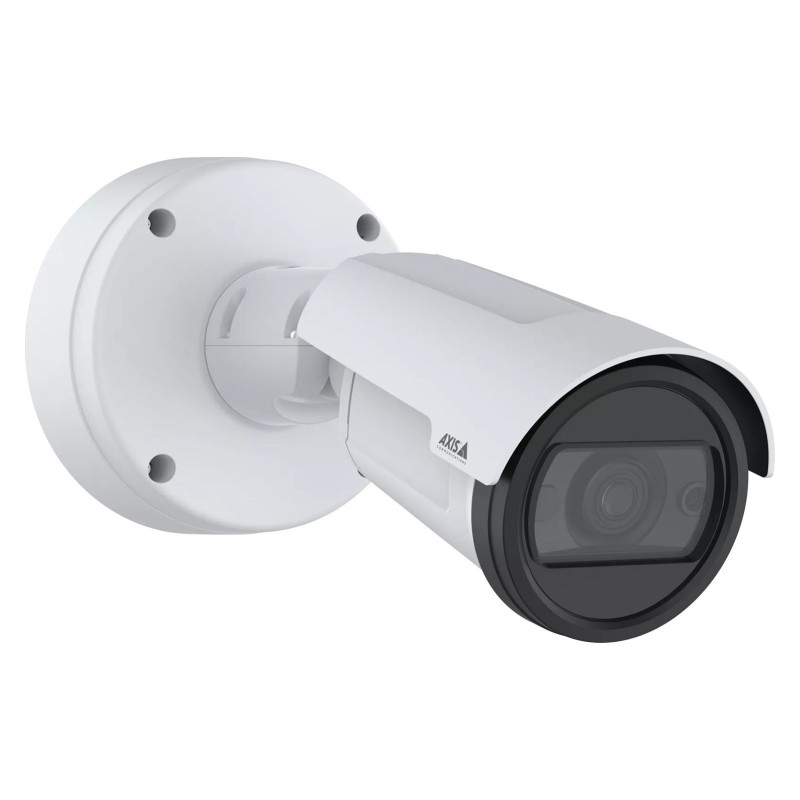

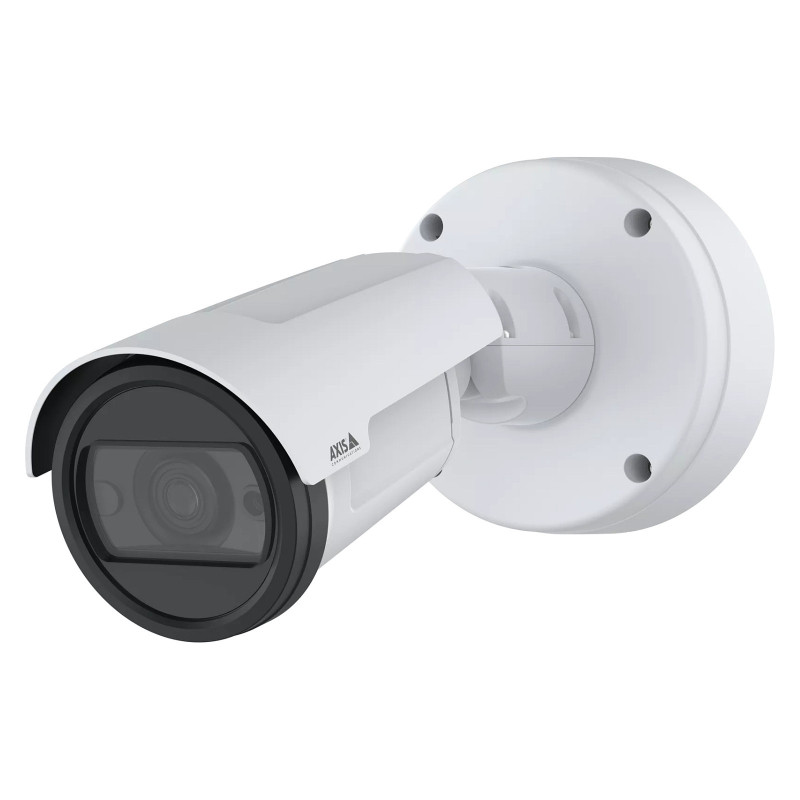

Axis P1485-LE

Axis P1485-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 10.8 - 28.2 mm
This robust, fully featured, AI-powered bullet camera delivers excellent 2 MP image quality in any light conditions. Built on ARTPEC-9, it supports AV1 codec and offers accelerated performance to run impressive analytics applications on the edge.
Outstanding image quality in any light
AXIS P1485-LE offers excellent image quality and forensic details in 2 MP at 60 fps, even in harsh weather and environments. It features OptimizedIR for surveillance in pitch darkness up to 50 m (164 ft). And Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, it features a 10-28 mm telephoto lens with a 29°-11° horizontal field of view for surveillance from a distance.
Robust with strong security
This impact-resistant, IK10-, IP66-, 67-, and NEMA 4X-rated outdoor-ready camera can handle extreme temperatures from -40°C to 60 °C (-40 to 140°F) and withstand winds up to 60 m/s (134 mph). It can be powered with DC and PoE for power redundancy. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operation. In addition, electronic image stabilization provides smooth video in situations where a camera is subject to vibrations. What's more, this robust camera is easy to install, maintain, and operate. For instance, it includes auto rotation and remote zoom and focus.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With ARTPEC-9, this application offers enhanced performance at greater distances. AXIS Image Health Analytics will notify you if the image is blocked, degraded, under-exposed, or redirected. And AXIS Live Privacy Shield addresses privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Processor model: ARTPEC-9
Built-in processor: Yes
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Pole clamp
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 29.4 - 11°
Lens viewing angle, vertical: 16.5 - 6.3°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/37000 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Focal length range: 10.8 - 28.2 mm
Auto focus: Yes
Maximum aperture number: 1.76
Minimum aperture number: 1.7

Night vision

Night vision: Yes
Night vision distance: 80 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AV1, H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness, White balance
Text caption overlay: Yes
Image stabilizer: Yes

Audio

Audio system: 2-way
Audio system full duplex: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Video motion detection: Yes
Pixel counter: Yes
Network access storage (NAS): Yes

Management features

Cloud-managed: Yes

Power

Power source type: DC, PoE
Power consumption (max): 12.95 W
DC output voltage: 10, 12, 15, 16, 24, 28

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 1.38 kg

Packaging content

Number of cameras: 1
Mounting kit: Yes
Manual: Yes
