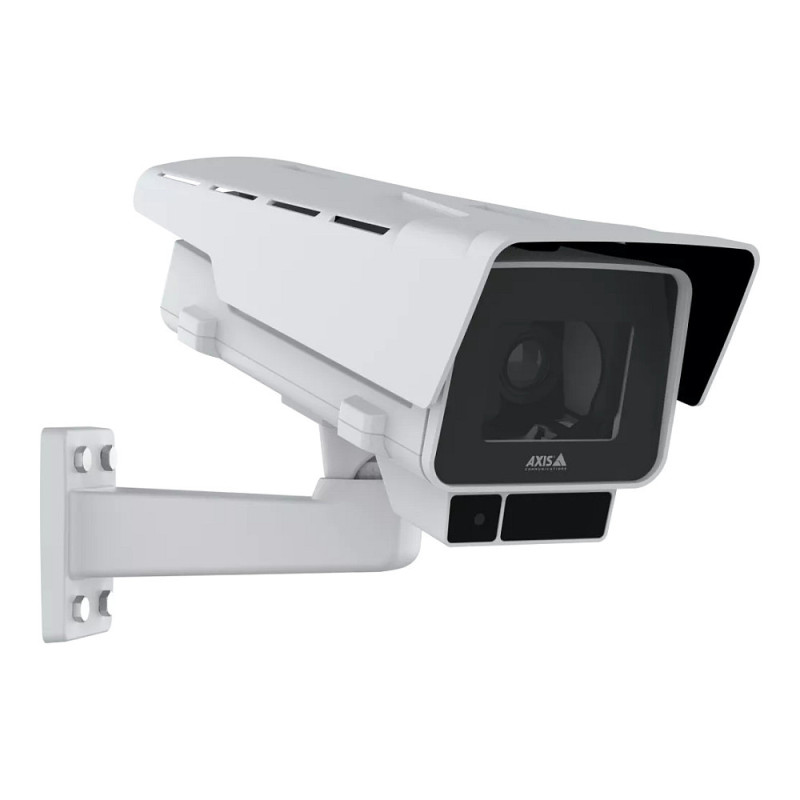

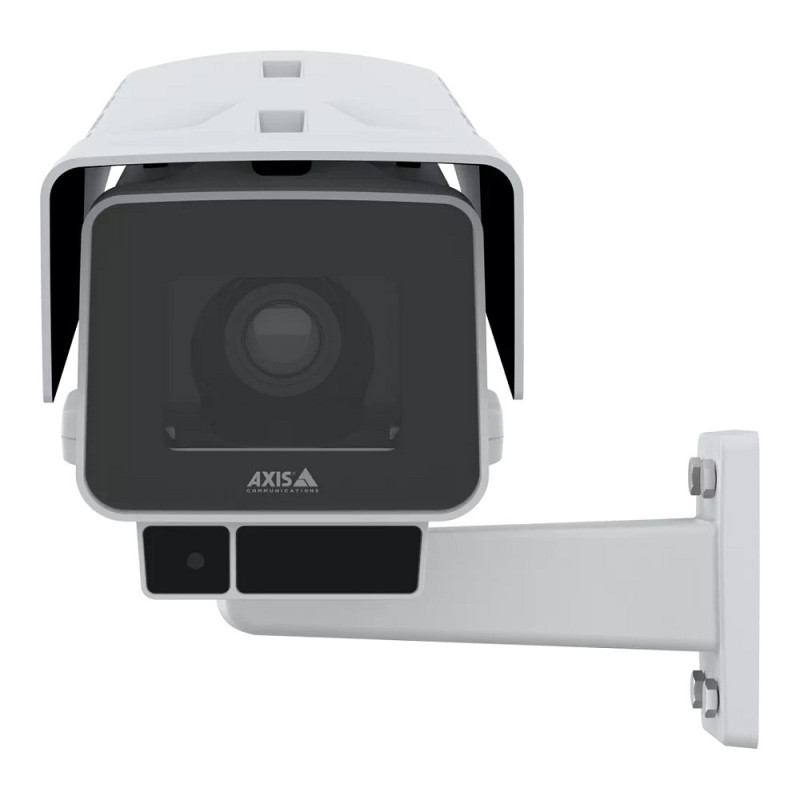

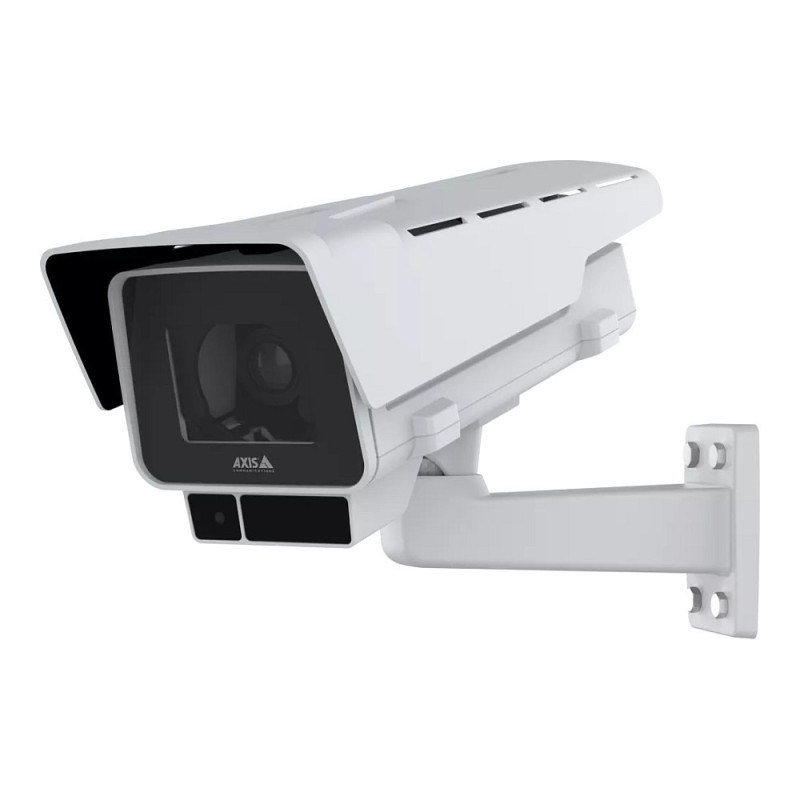

Axis P1388-LE

Axis P1388-LE. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.13 lx, Angle of rotation: 270°, Vertical field of view (thermal module): 64°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
This robust, outdoor camera has a clear deterrent effect. It offers excellent 8 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.
Made for the great outdoors
This IP66-, IP67-, IK10- and NEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images. AXIS P13 Weathershield Extension A is also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 4K. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. And it offers P-Iris for images with better contrast, clarity, resolution, and depth of field. Additionally, OptimizedIR enables surveillance in total darkness up to 50 m (164 ft). And, with shock detection and a tampering alarm, you'll be informed if there are any attempts to interfere with the camera.
Secure and powerful
AXIS P1388-LE offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM

Design

Form factor: Box
Mounting type: Wall
Product colour: White
Housing material: Aluminium, Plastic
Protection features: Impact resistant
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.13 lx
Angle of rotation: 270°
Vertical field of view (thermal module): 64°
Horizontal field of view (thermal module): 122 - 46°
Camera pixel size: 2 µm
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Number of lenses: 1
Focal length range: 3.9 - 10 mm
Auto focus: Yes
Detect distance (wide): 78.7 m
Detect distance (tele): 193.5 m
Observe distance (wide): 31.2 m
Observe distance (tele): 76.8 m
Recognize distance (wide): 15.7 m
Recognize distance (tele): 38.7 m
Identify distance (wide): 7.9 m
Identify distance (tele): 19.4 m

Night vision

Night vision: Yes
Night vision distance: 40 m
B/W night vision distance: 40 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Video formats supported: H.264, H.265
Supported graphics resolutions: 160 x 90, 3840 x 2160
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Sharpness
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 1-way
Audio system full duplex: Yes
Audio formats supported: AAC, G.711, OPUS, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS 2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/ 5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports interfaces

Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Video motion detection: Yes
Human and vehicle targets classification: Yes

Power

Power source type: PoE
Power consumption (typical): 9.1 W
Power consumption (max): 25.5 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 2.46 kg
Weight (with stand): 3.34 kg

Sustainability

Compliance certificates: Trade Agreements Act (TAA)

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: BFR, CFR, PVC

Technical details

Safety warning: CAN/CSA C22.2 No. 62368-1 ed. 3,IEC/EN/UL 62368-1 ed. 3, IS 13252
