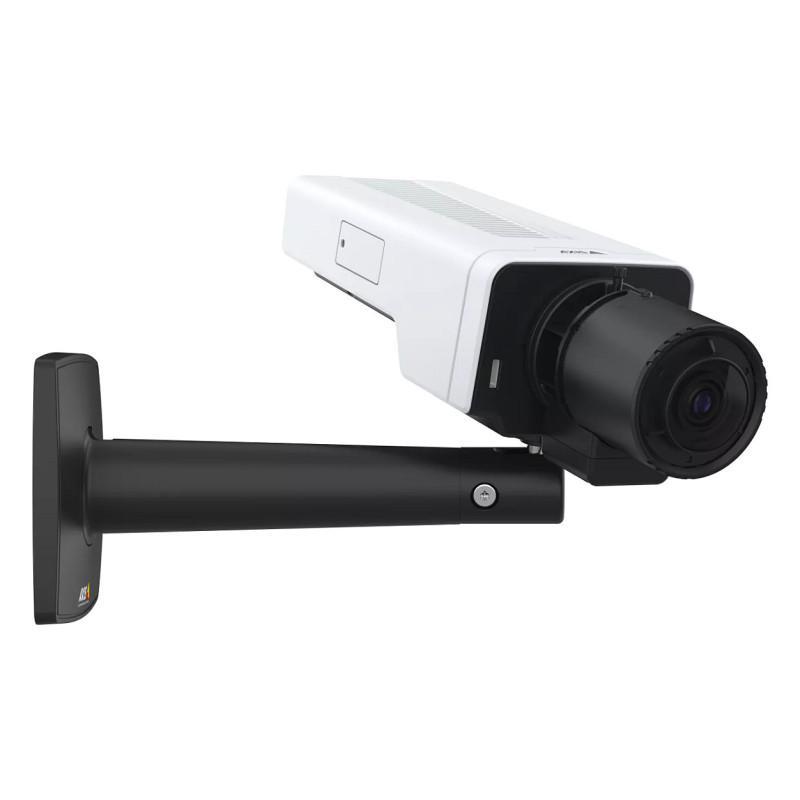

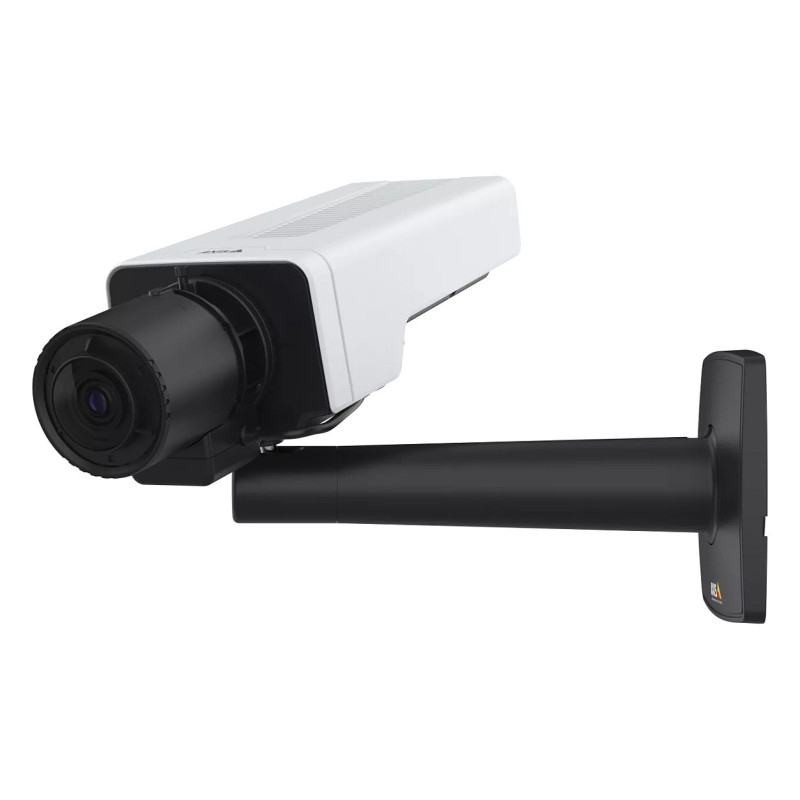

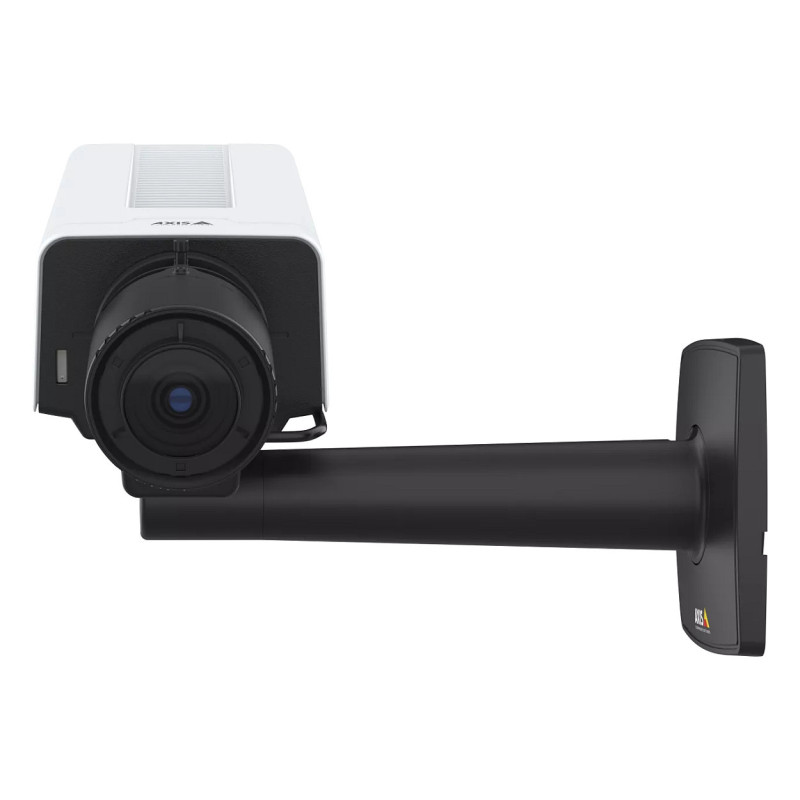

Axis P1387

Axis P1387. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 24 - 112°, Lens viewing angle, vertical: 18 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm, Detect distance (wide): 56.2 m, Detect distance (tele): 244.2 m
This box camera delivers excellent 5 MP image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it's designed for use outdoors in housing.
A camera you can count on
With electronic image stabilization, AXIS P1387 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you'll be informed if there's any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it's designed to fit into outdoor housing.
More light or less
With an exchangeable lens and i-CS support, you can easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 5 MP. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.
Secure and powerful
AXIS P1387 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different types of objects. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Processor model: ARTPEC-8
Built-in processor: Yes
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Box
Mounting type: Wall
Product colour: White
Housing material: Aluminium

Camera

Minimum illumination: 0.008 lx
Lens viewing angle, horizontal: 24 - 112°
Lens viewing angle, vertical: 18 - 80°
Camera pixel size: 2 µm
Camera shutter speed: 1/66500 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8 - 13 mm
Auto focus: Yes
Minimum aperture number: 1.4
Detect distance (wide): 56.2 m
Detect distance (tele): 244.2 m
Observe distance (wide): 22.3 m
Observe distance (tele): 96.9 m
Recognize distance (wide): 11.2 m
Recognize distance (tele): 48.8 m
Identify distance (wide): 5.6 m
Identify distance (tele): 24.4 m

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.265, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 2592 x 1944
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Sharpness
Flip mirror: Yes
Privacy masking: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio formats supported: G.711, G.726, LPCM, OPUS
Signal-to-Noise Ratio (SNR): 55 dB
Built-in microphone: Yes
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
RS-422 ports: 1
RS-485 ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Alarm input channels: 2
Alarm output channels: 2
Video motion detection: Yes
Active tampering alarm: Yes
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Line crossing detection, Scene change, Vehicle detection

Power

Power source type: DC, PoE
Power consumption (typical): 4.26 W
Power consumption (max): 10.57 W
Power consumption (Power over Ethernet (PoE)): 11.73 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 80 mm
Depth: 225 mm
Height: 63.5 mm
Weight: 480 g
Weight (with stand): 775 g

Sustainability

Compliance certificates: CE, EAC, KC, RCM, REACH, RoHS, UKCA, UL, VCCI, cUL

Packaging content

Number of cameras: 1
Mounting kit: Yes
Manual: Yes
Terminal block included: Yes

Other features

Doesn't contain: BFR
