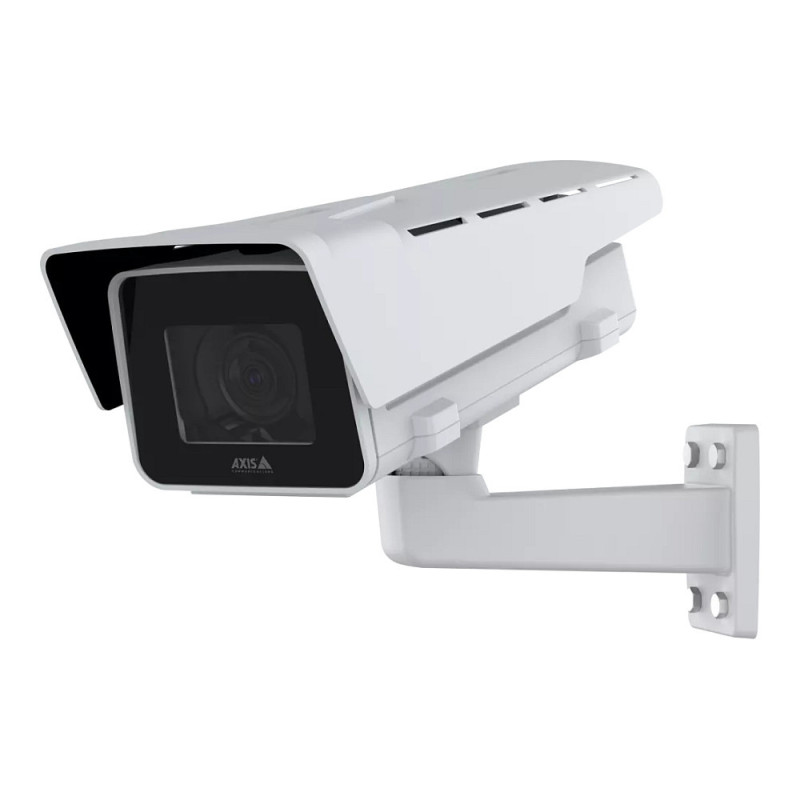

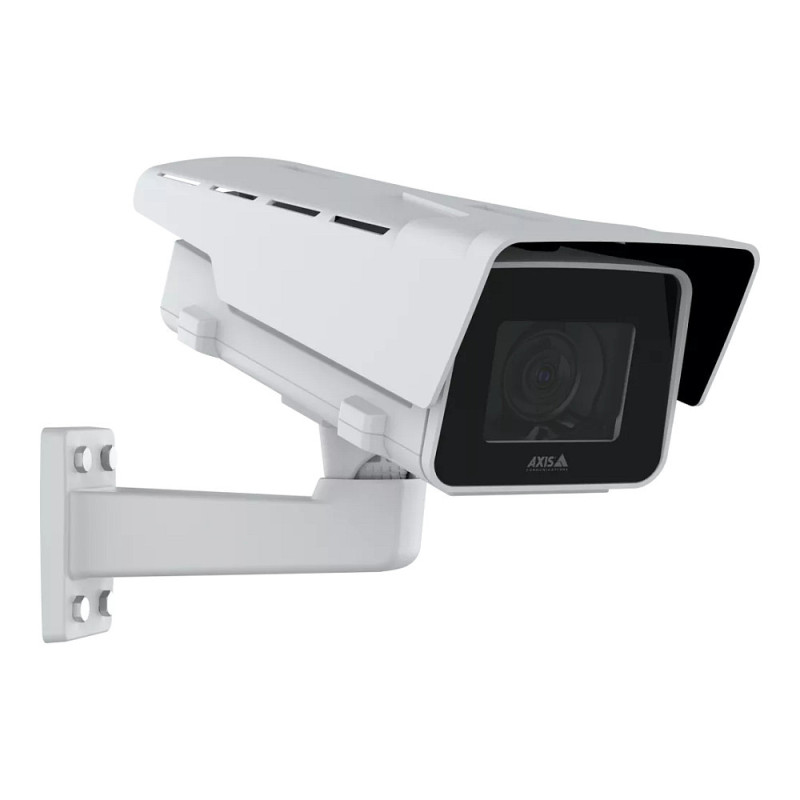

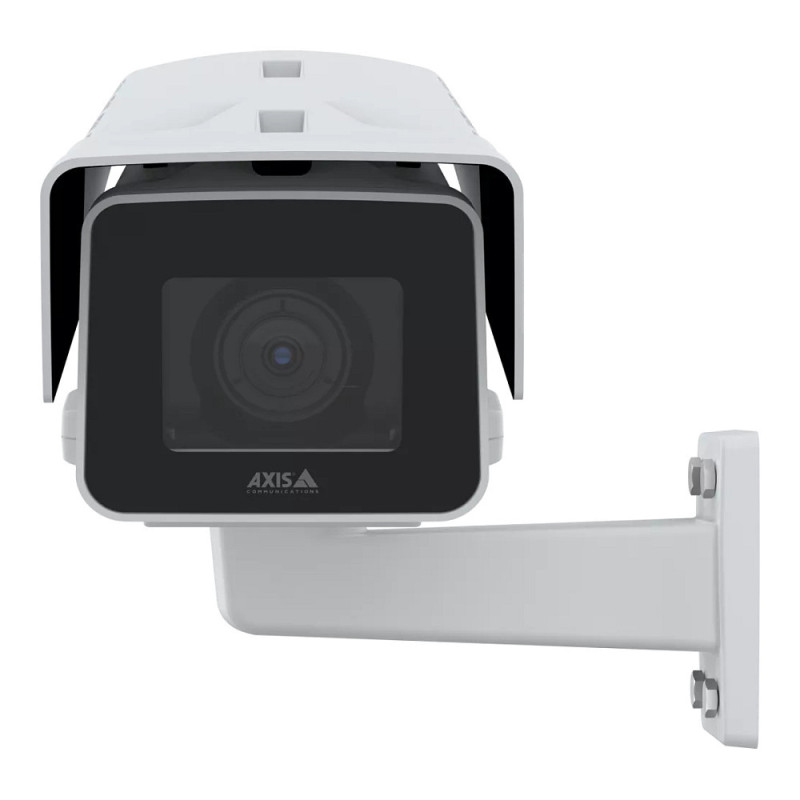

Axis P1385-E

Axis P1385-E. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 121 - 26°, Lens viewing angle, vertical: 64 - 15°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 13 mm
This robust, outdoor camera has a clear deterrent effect. It offers excellent 2 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.
Made for the great outdoors
This IP66-, IP67-, IK10- and NEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images. AXIS P13 Weathershield Extension A is also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in HDTV 1080p. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. And it offers P-Iris for images with better contrast, clarity, resolution, and depth of field. AXIS Fixed Box IR Illuminator Kit A is also available as an optional accessory for cost-efficient surveillance in pitch darkness. And, with shock detection and a tampering alarm, you'll be informed if there are any attempts to interfere with the camera.
Secure and powerful
AXIS P1385-E offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ, Preset point
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: UL/cUL, CE, KC, EAC, VCCI, RCMCAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,IS 13252IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,IEC 60068-2-27, IEC 60068-2-78NIST SP500-267, IPv6 USGv6ETSI EN 303 645, FIPS 140

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
Fog proof: Yes

Camera

Minimum illumination: 0.05 lx
Lens viewing angle, horizontal: 121 - 26°
Lens viewing angle, vertical: 64 - 15°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/37000 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Focal length range: 2.8 - 13 mm
Auto focus: Yes

Night vision

Night vision: Yes

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Gain control type: Auto
Privacy masking: Yes
Image stabilizer: Yes

Network

Ethernet LAN: Yes

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 2

Security

Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS

Power

Power source type: DC, PoE
Power consumption (typical): 3.6 W
Power consumption (max): 25.5 W
DC output voltage: 10, 28

Operational conditions

Storage temperature (T-T): -40 - 60 °C

Packaging content

Number of cameras: 1
